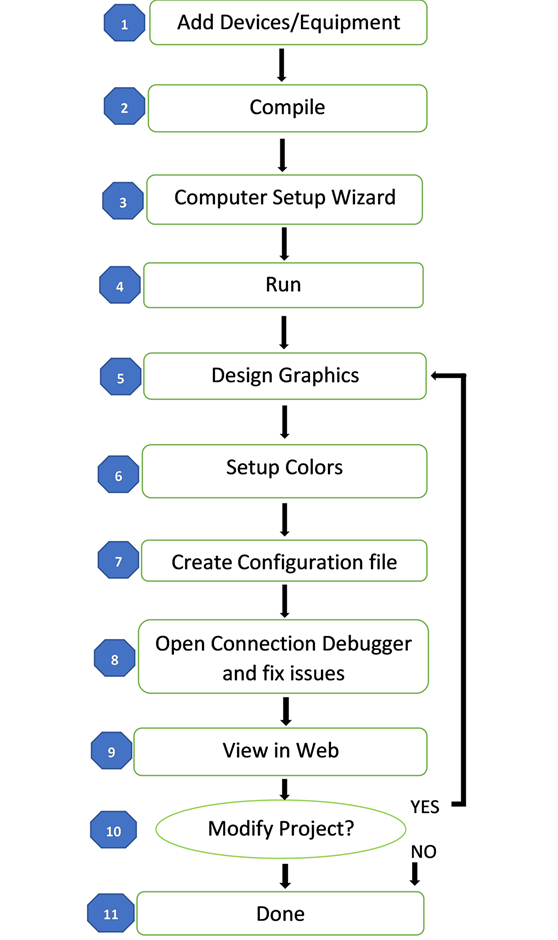

Advanced one-line flowchart

The following flowchart provides an overview of the process to follow when setting up and using animation in one-line diagrams.

1	Add devices/equipment in Power Operation Studio.
2	Compile your project in Power Operation Studio.
3	Use Computer Setup Wizard to run the application.
4	In Power Operation Studio, click Run.
5	Design your graphics in Graphics Editor and add required equipment to form your one-line diagram.
6	Open the Connection Debugger and fix any incorrect binding issues.
7	If desired, customize one-line colors using the Connection Debugger.
8	Create configuration file in the Connection Debugger.
9	View your one-line diagram on the web by clicking F5.
10	If your project requires modification, return to step 5.
11	Done, your one-line diagram is created.
