TGML Value Conversion: <ConvertValue>

ConvertValue specifies how a server variable (signal) value is to be converted to a TGML element attribute value. A ConvertValue element belongs to the immediate parent Bind element.

A ConvertValue rule is only executed when each of the specified conditions is fulfilled.

Example of a ConvertValue element where the attribute is set to #00FF00 (green) when the signal value is more than 18 and less than or equal to 22:

Copy
<Bind Name="Temperature" Attribute="Fill">
    <ConvertValue AttributeValue="#00FF00"
        SignalMoreThan="18.0" SignalLessOrEqualTo="22.0"/>
</Bind>

An example rule that can never be fulfilled (and thus, never executed) since the signal value is both equal to 0 and more than 10:

Copy
<ConvertValue Name="Bad Rule" AttributeValue="#FF0000" SignalEqualTo="0" SignalMoreThan="l0"/>
Attribute Type Description

AttributeValue

String (untyped)

The attribute value that is to be set (resulting value). The type is determined by the bound Attribute (referenced by the Bind element).
Inheritable: No
Animatable: No

SignalEqualTo

String (untyped)

Corresponds to "="
Inheritable: No
Animatable: No

SignalMoreThan

String (untyped)

Corresponds to ">"
Inheritable: No
Animatable: No

SignalMoreOrEqualTo

String (untyped)

Corresponds to ">="
Inheritable: No
Animatable: No

SignalLessThan

String (untyped)

Corresponds to "<"
Inheritable: No
Animatable: No

SignalLessOrEqualTo

String (untyped)

Corresponds to "<="
Inheritable: No
Animatable: No

Example of a SignalEqualTo ConvertValue element:

Copy
<TGML>
    <Polygon Points="50.0,50.0 150.0,50.0 150.0,150.0 50.0,150.0" Stroke="#000000" Fill="#000000">
        <Bind Name="State" Attribute="Fill">
            <ConvertValue AttributeValue="#00FF00" SignalEqualTo="l"/>
            <ConvertValue AttributeValue="#FF0000" SignalEgualTo="0"/>
        </Bind>
    </Polygon>
</TGML>

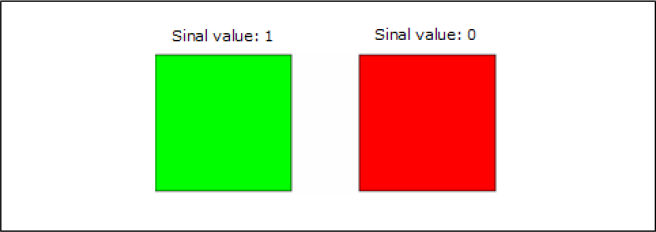

Example of a SignalEqualTo ConvertValue element on screen:

Example of other ConvertValue elements:

Copy
<TGML>
    <Polygon Points="50.0,50.0 150.0,50.0 150.0,150.0 50.0,150.0" Stroke="#000000" Fill="#000000">
        <Bind Name="Temperature" Attribute="Fill">
            <ConvertValue AttributeValue="#0000FF" SignalLessThan="18.0"/>
            <ConvertValue AttributeValue="#00FF00" SignalMoreOrEqualTo="18.0" SignalLessOrEqualTo="22.0"/>
            <ConvertValue AttributeValue="#FF0000" SignalMoreThan="22.0"/>
        </Bind>
    </Polygon>
</TGML>

Example of other ConvertValue elements on screen:
