Profile Editor typical workflows

The following flow charts illustrate how to use the Profile Editor. The first illustration provides an overview, while the subsequent workflows show:

• Creating/editing a device type
• Creating/editing a device profile
• Creating/editing unit templates

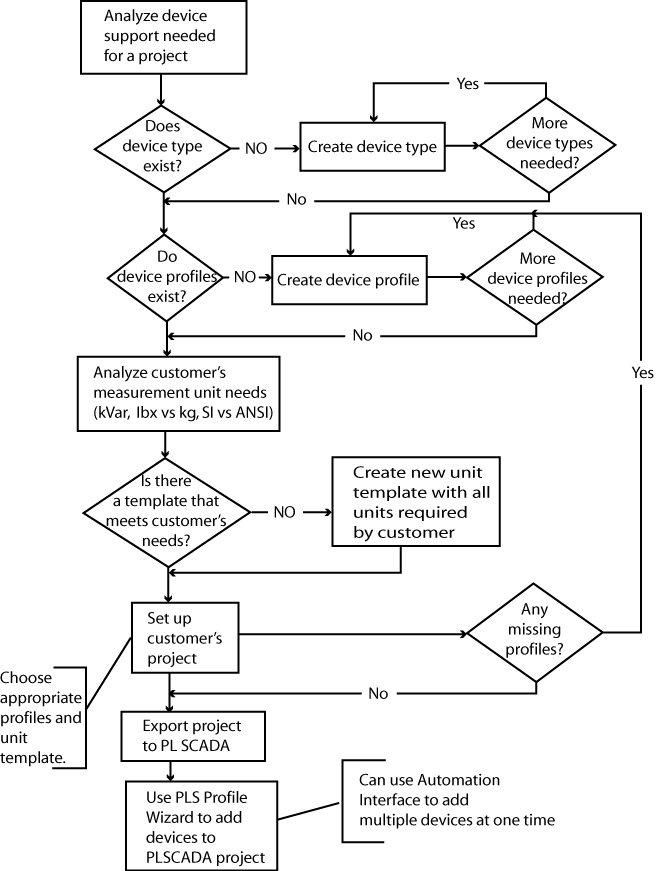

Workflow overview

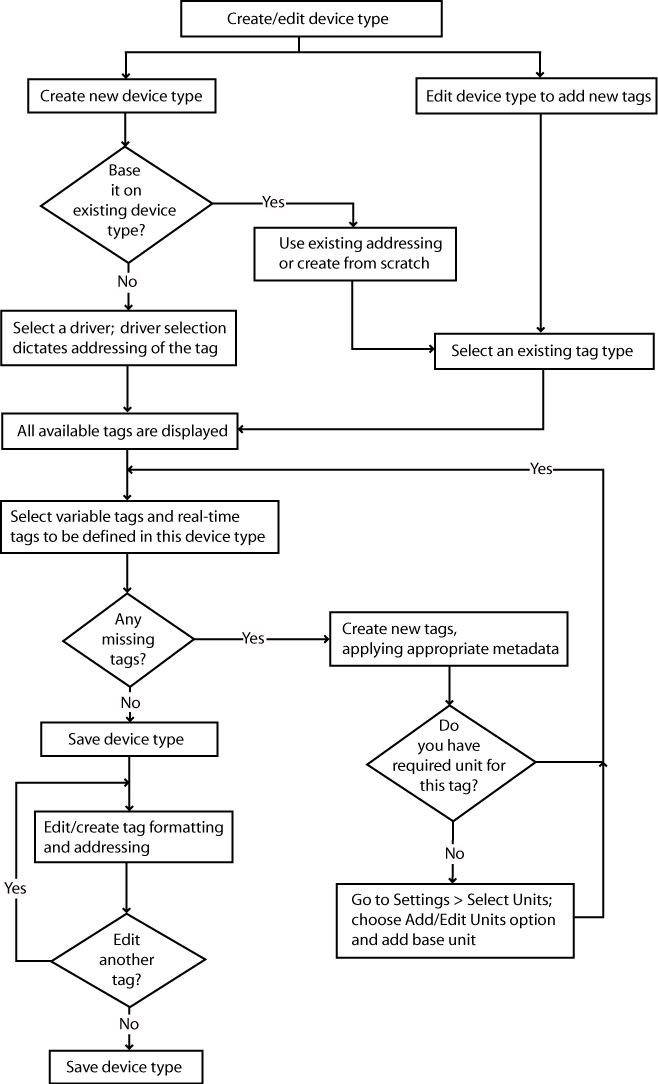

Create/edit device type

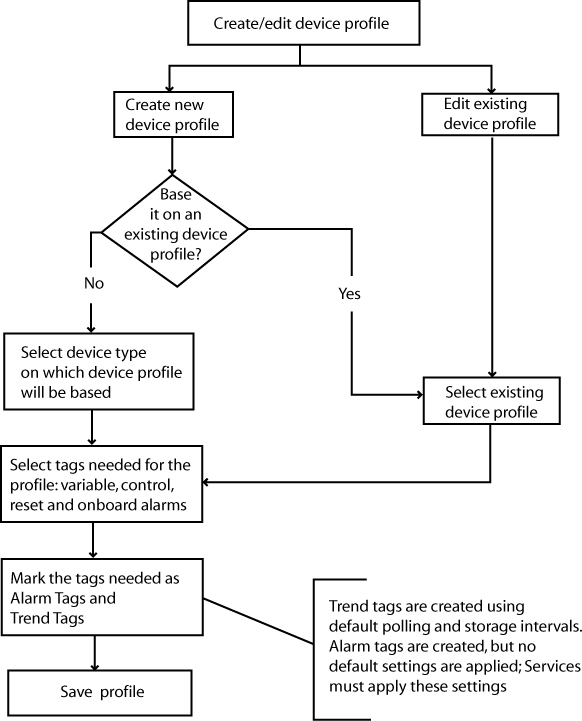

Create/edit device profile

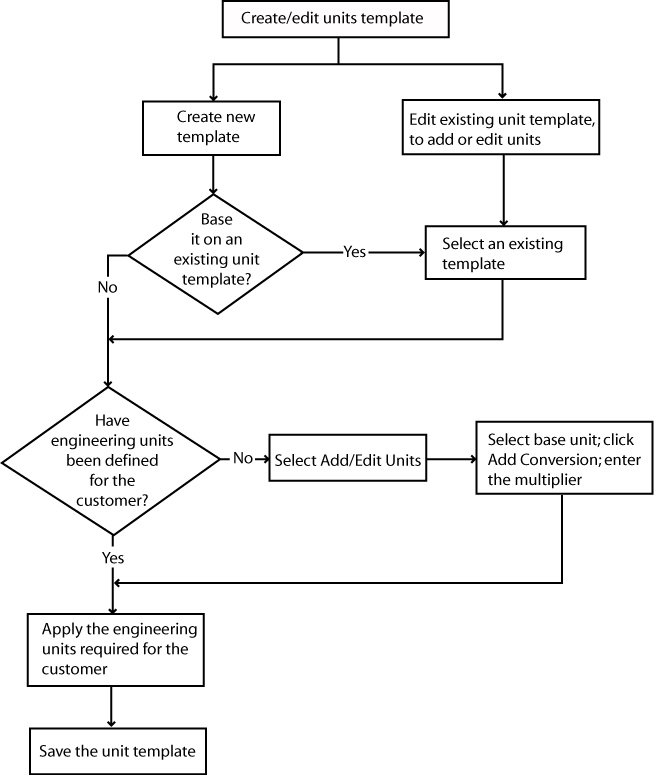

Create/edit unit templates
