Add Web Diagrams to Equipment Popups

NOTE: This method only works when Power Monitoring Expert device names are identical to Power Operation equipment names.

To open the diagram from a meter genie equipment page:

1. Open the Power Operation Graphics Builder and navigate to the page on which you want to insert the meter genie.
2. Click Edit > Paste Genie.
3. Under Library, click pls_meter and select the desired meter genie.
4. Near the bottom of the page, locate the Events fields.
5. In the Details Pop Up field, enter the PLS_WebReachPopup Cicode method.

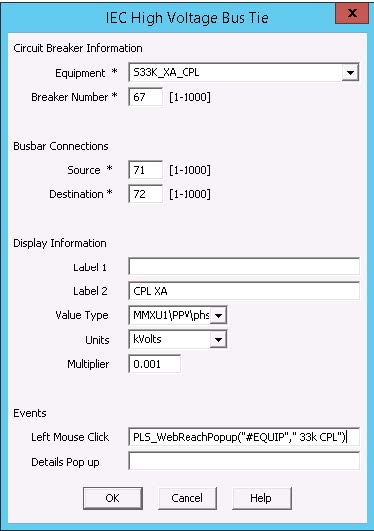

Your Genie Properties dialog should resemble the following:

NOTE: Unlike the other two button types (from a menu or popup page), you do not specify the sDevice name. Instead, you pass #EQUIP. This value is a property of the genie. This only works when the Power Operation equipment name is the same as the Power Monitoring Expert group.devicename.

The result is an equipment popup that contains a button that looks like this:

To test the WebReach URL:

1. Verify that the diagram opens, by entering the URL of the diagram in a browser.

   The URL is: http://<servername>/ION/default.aspx?dgm=OPEN_TEMPLATE_DIAGRAM&node=<devicename>

If this does not work, verify that the WebReachServer is correct in your citect.ini, and the diagram appears correctly in WebReach.
