Setting up the Vista Diagram for UPS Auto Test

1. Browse to ...\config\diagrams\ud\UPS\UpsGroups.dgm.

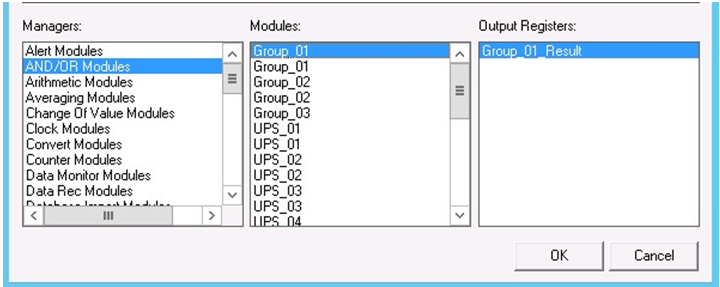

2. Link the status object from the framework that you pasted in VIP in the previous steps.



3. Repeat step 2 for all other groups. Your UPS Monitoring system is now setup.

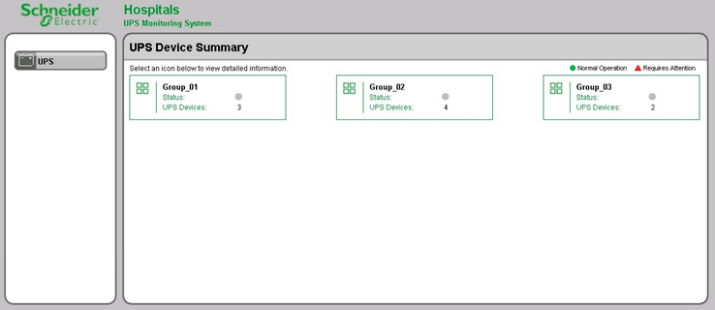

NOTE: Any UPS in the groups that require attention show a red indicator.
