Defining UPS modules for Power Losses

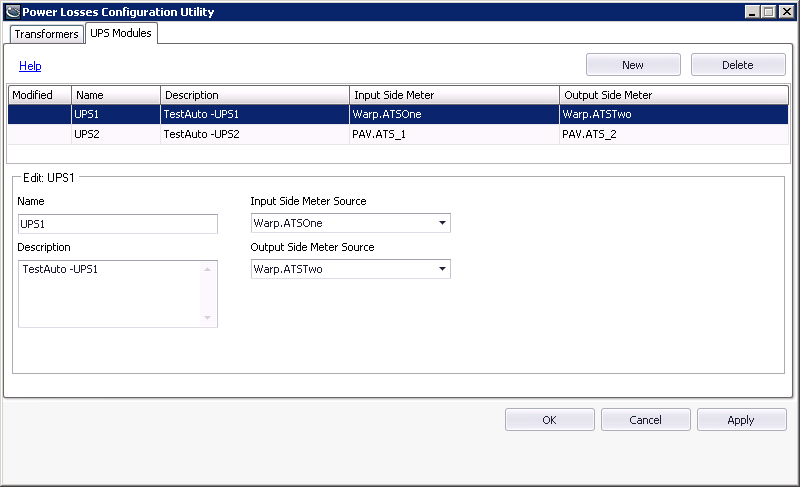

To define a UPS module used in your power losses system:

  1. Click the UPS Modules tab.
  2. Click New. The editable fields are enabled.
  3. Define the UPS module:
    1. Name: Enter a unique name for the UPS module.
    2. Description: (Optional) Enter a description for the UPS module. For example: make, model.
    3. Input Side Meter Source: Select a source name from the drop-down list. The source represents the Power Monitoring Expert device that records the electrical data from the input side of the UPS module.
    4. Output Side Meter Source: Select a source name from the drop-down list. The source represents the Power Monitoring Expert device that records the electrical data from the output side of the UPS module.
  4. Click OK to save the UPS module.
