5. Accessing device diagrams (only for Architecture 2 solutions)
You can access PME device diagrams from within Building Operation in order to view graphical data for the device data you imported.
warning
inaccurate data results
| ● | Do not incorrectly configure the software or the devices. |
| ● | Do not base your maintenance or service actions solely on messages and information displayed by the software. |
| ● | Do not rely solely on software messages and reports to determine if the system is functioning correctly or meeting all applicable standards and requirements. |
| ● | Consider the implications of unanticipated transmission delays or failures of communications links. |
Failure to follow these instructions can result in death, serious injury, equipment damage, or permanent loss of data.
To access device diagrams
- Log in to Building Operation WorkStation.

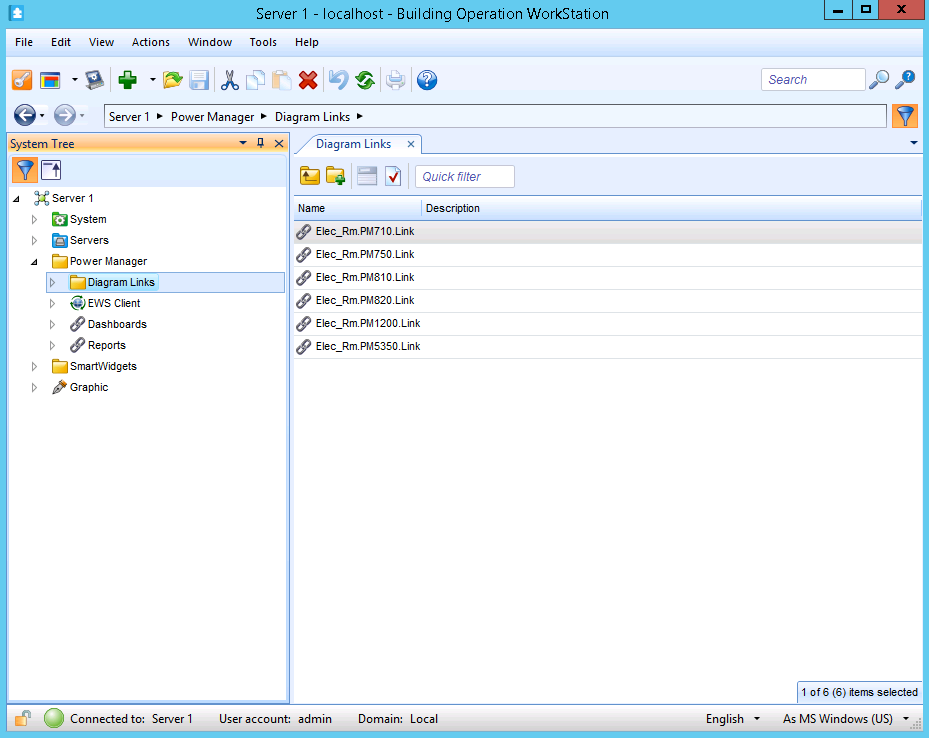

- In the System Tree, navigate to PME/EBO Integration and click the Diagram Links folder. You will find a list of Web Diagram links in the Diagram Links pane at the right for the default Web Diagrams that you selected and exported with the web application Integration Utility settings.

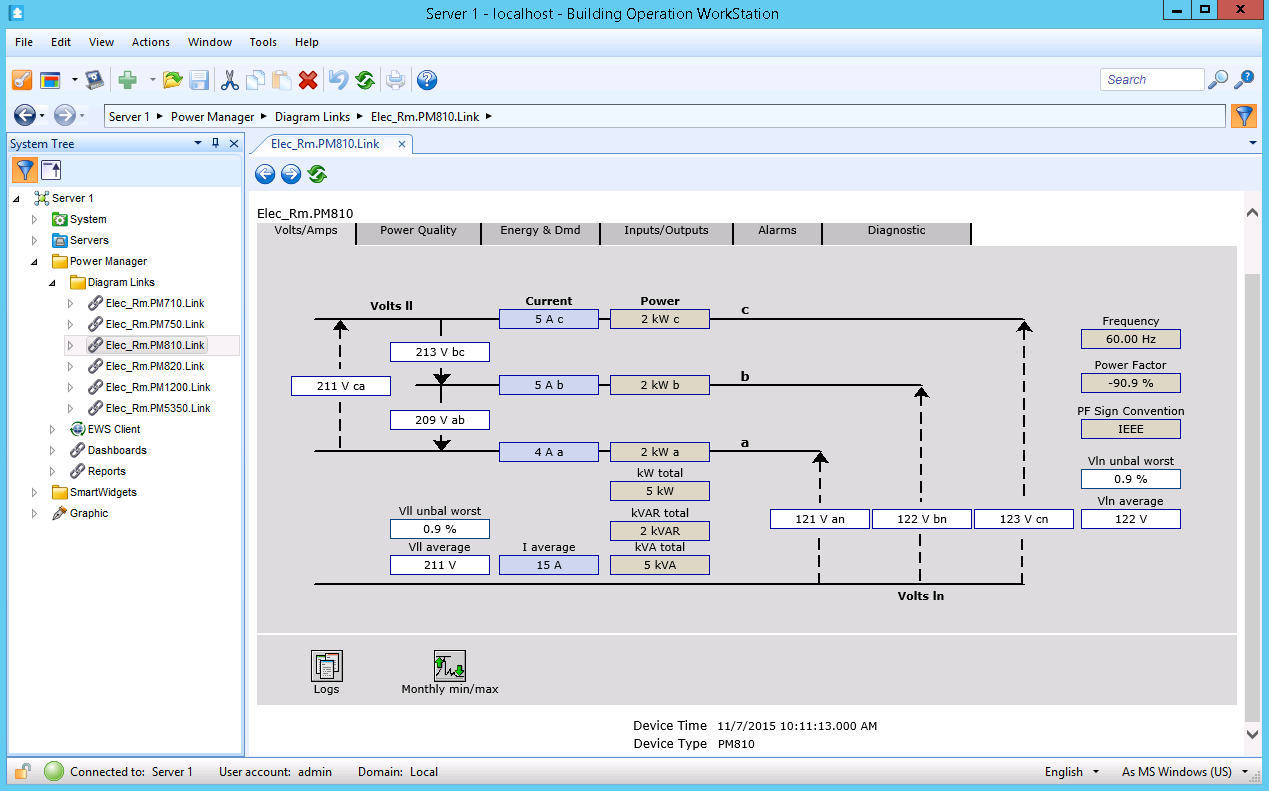

- In the Diagram Links tab, double-click a Web Diagram file. The Web Diagram graphic opens for this device.
- Select the different tabs in the Web Diagram screen to view other data values for this device.
