Import / Export Power Quality Group Definition

The tool PQGroupConfig.exe is used to import / export the Power Quality Group definition in the PowerQualityGroups.csv file. It is located in {root install folder}\Applications\bin

Import Power Quality Group definition

To import the definition, run the command line:

PQGroupConfig.exe import "<filepath>\<filename>"

If you are using the default file name and path, copy the following command line:

PQGroupConfig.exe import "C:\Program Files (x86)\Schneider Electric\Power Monitoring Expert\Applications\PowerQuality\PowerQualityGroups.csv"

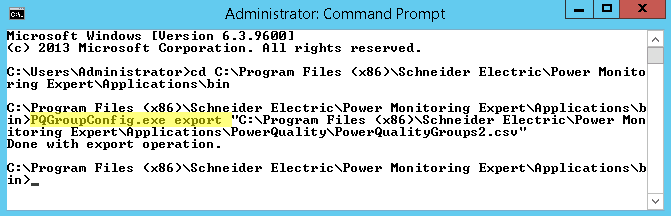

Export Power Quality Group definition

To export the definition, run the command line:

PQGroupConfig.exe export "<filepath>\<filename>"

If you are using the default file name and path, copy the following command line:

PQGroupConfig.exe export "C:\Program Files (x86)\Schneider Electric\Power Monitoring Expert\Applications\PowerQuality\PowerQualityGroups.csv"
