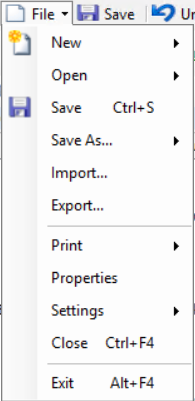

Graphics Editor File Menu

Use the File menu to manage graphic files:

Command	Description
New	Opens a submenu where you can select if you want to create a graphic or a component.
Open	Opens a submenu where you select a.tgml graphic file or an .ogc file.
Save	Saves the graphic as a Power Operation object in the database.
Save As	Opens a submenu where you select how the current graphic file is to be saved. When you use the Save As command to save a graphic as a file, the Power Operation link is broken.
Import	Opens a dialog box where you can locate graphics files that you want to import into Graphics Editor.
Export	Exports a graphics file to the selected location, under the name you enter, and in the file format you specify.
Print	Opens a submenu where you can make a number of print preferences for printing the active graphic or component.
Properties	Opens the document properties pane. For more information, see the Graphics Editor Properties Pane section.
Settings	Opens a submenu from which you access user interface settings for Graphics Editor.
Close	Closes the current design and the editor in which it is open. If you have several instances of the editor open simultaneously, only the current editor is closed.
Exit	Exits all instances of the program.
