Link snippet example

When you select a TGML graphic that has a configured Link snippet, another TGML page is displayed. Typically, you would use link snippets to navigate between TGML pages.

This topic uses an example to illustrate how to configure a Link snippet.

Prerequisites:

This example uses a graphic file that already has a binded component or equipment in the workspace. For more information on how to prepare the TGML graphic snippet examples, see TGML snippet example prerequisites.

To create a Link snippet:

In the left bottom corner, select Snippet, and then select Link.

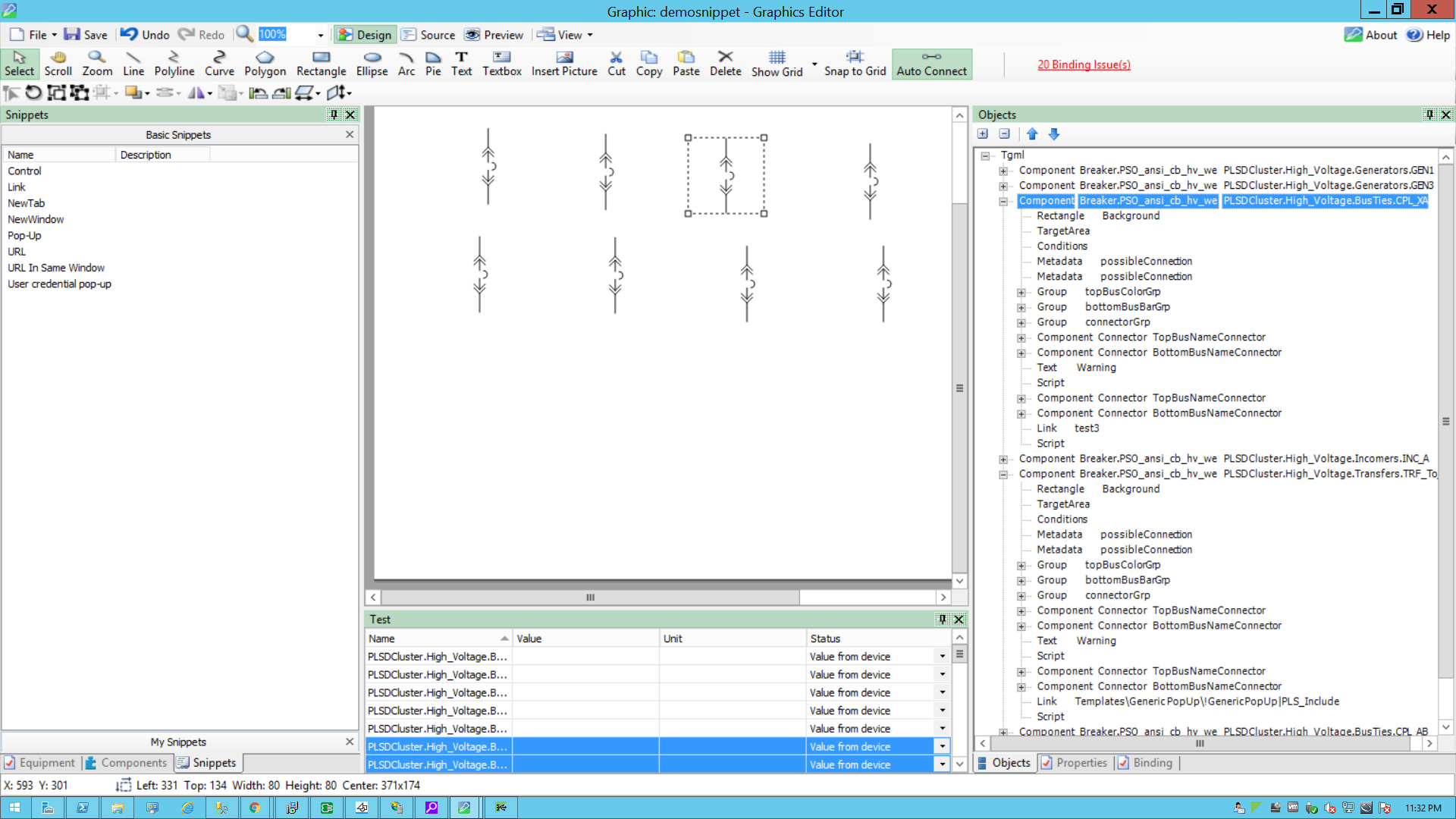

Drag and drop the Link snippet over the selected component in the workspace. For example:

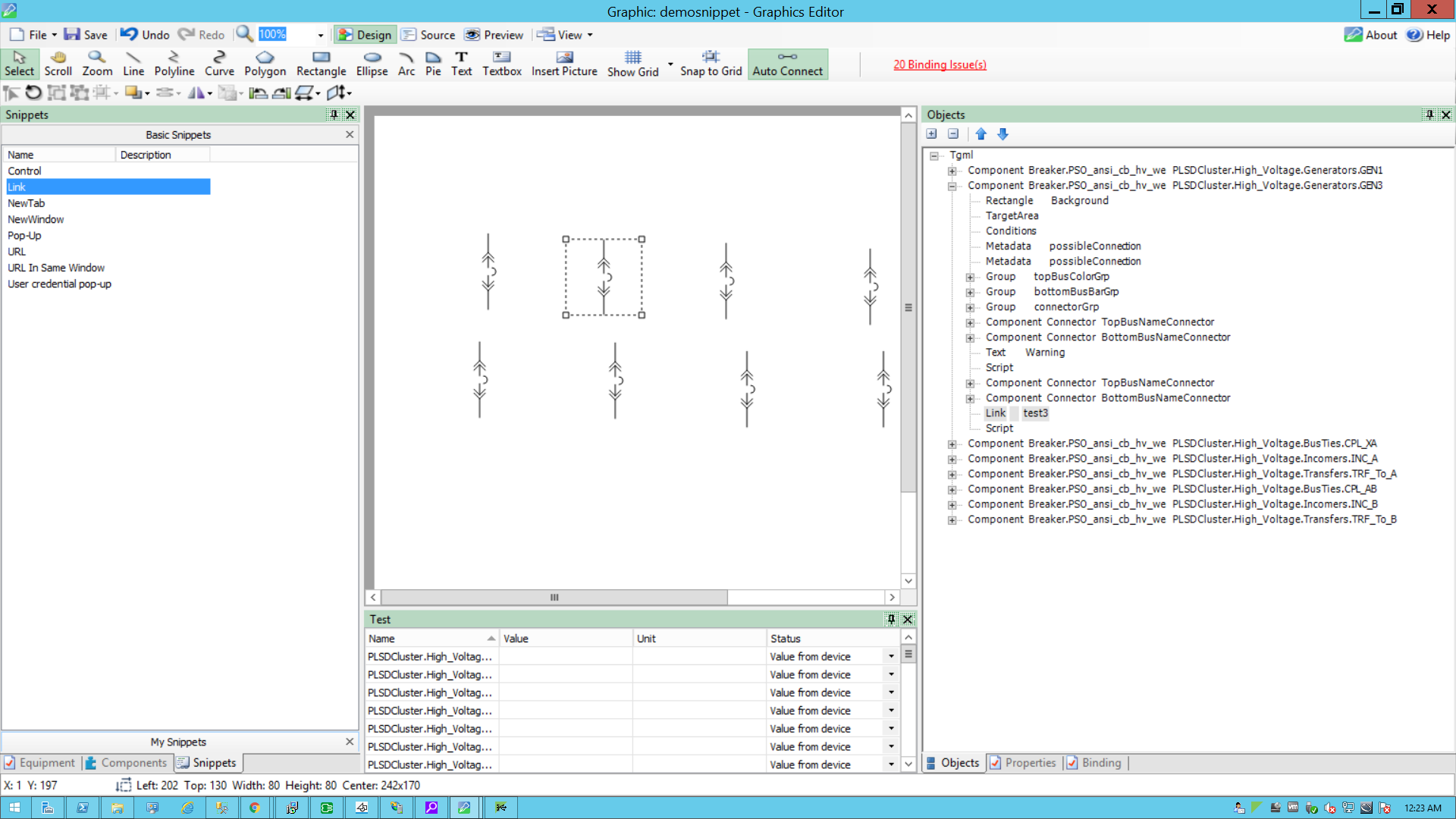

In the bottom right corner, select Objects, and then expand the TGML node.
Two additional properties appear: Link and Script.

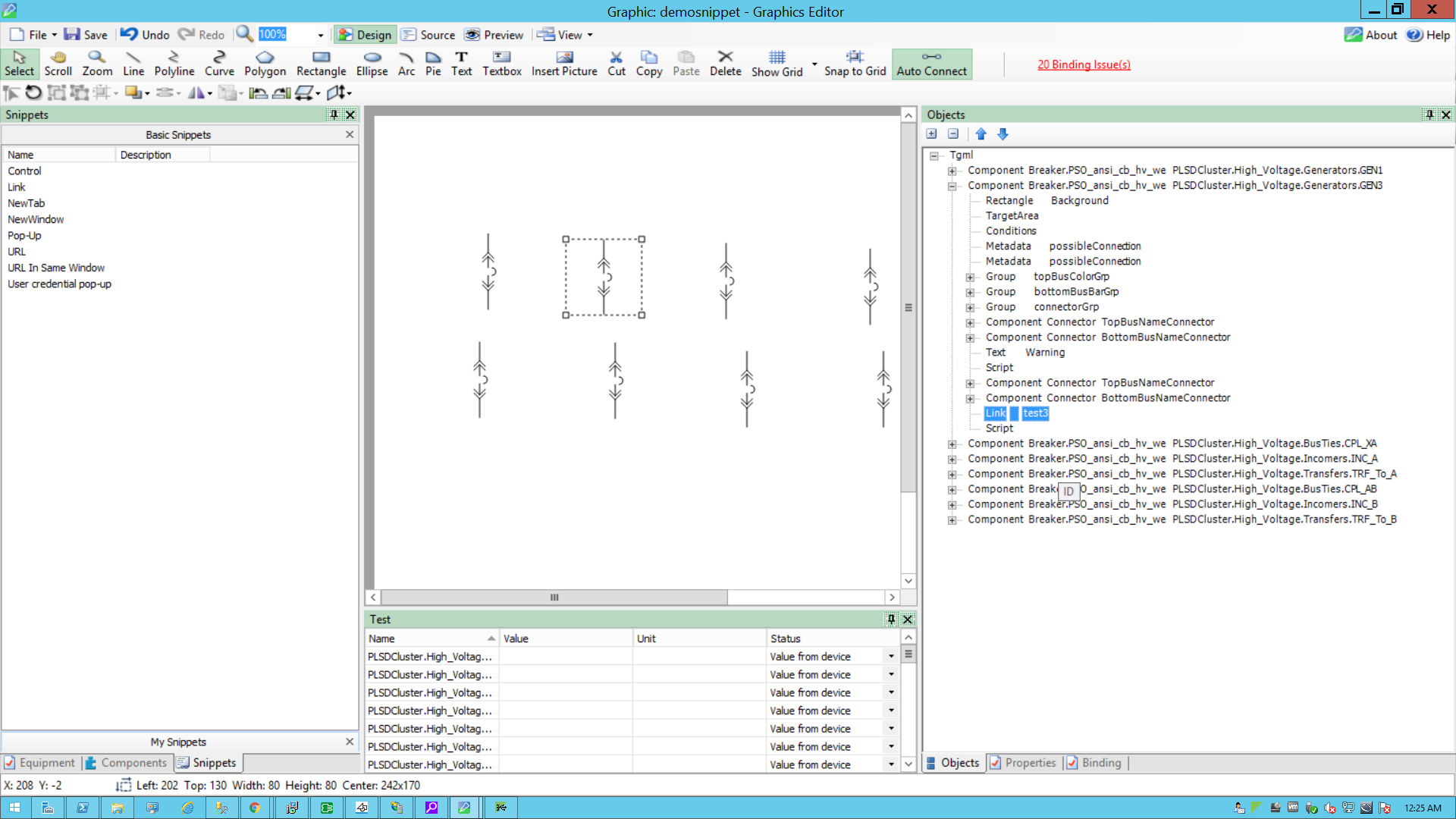

Update the link with the TGML file to be opened. For example: test3

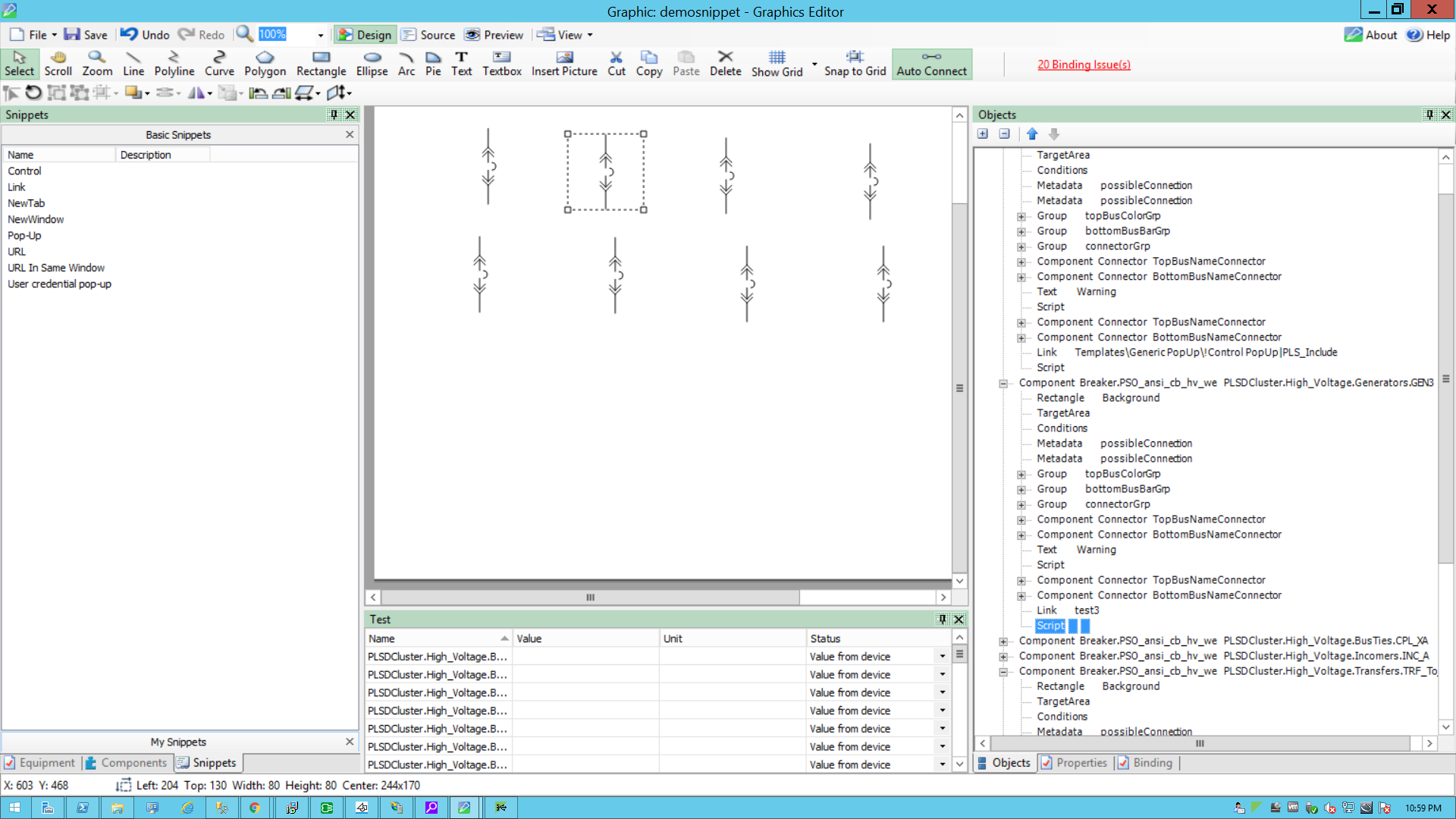

Select Script.

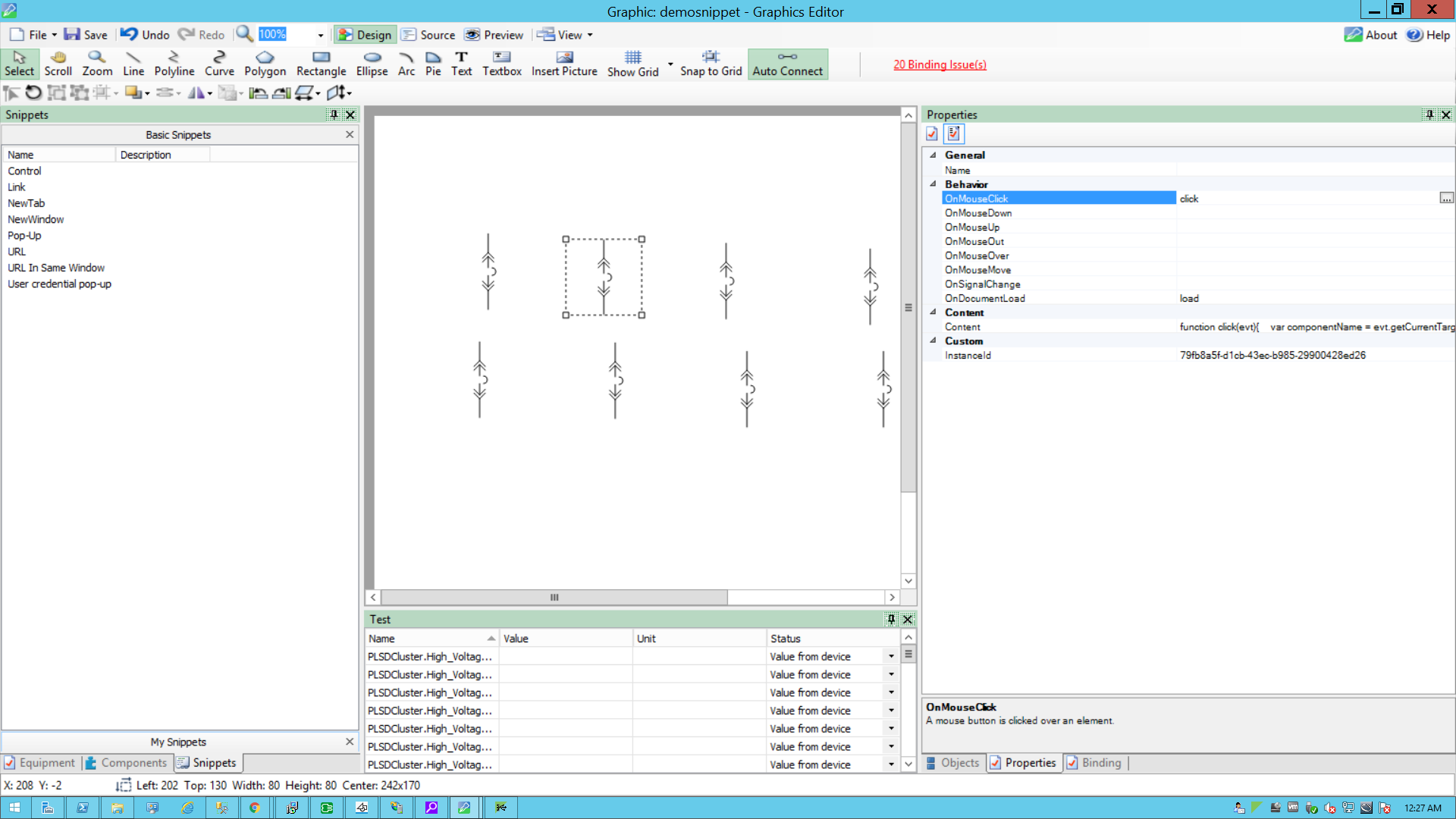

In the bottom right corner, select Properties, and then expand Behavior.
Select the ellipsis button in OnMouseClick.
Use the following script to set the TGML snippet's select behavior, and then close the script window:

Copy

function click(evt)
{
//componentName is name of the component based on the component selection we will fetch the component name
var componentName = evt.getCurrentTarget().getAttribute("Name");

//Collecting the links from the Component
var Link = evt.getCurrentTarget().getElementsByTagName("Link");

//customExpose-If two breakers are internally connected (means multi equipment);
var customExpose = evt.getCurrentTarget().getAttribute("SubstituteNames");

for (var i=0;i< Link.length;i++) {
//LinkFileName : Extracting the file name from the Link
var LinkFileName = Link.item(i).getAttribute("Name");

//With invoke function you can configure the graphic component in Graphics Editor to open a linked target object in a target location when you perform a action(link) on the component
invoke(LinkFileName, "Type = Link | ComponentName=" + componentName + " | CustomExpose=" + customExpose);
}
}

function load(evt)
{
}

Open the TGML graphic and select on the Component in the TGML.

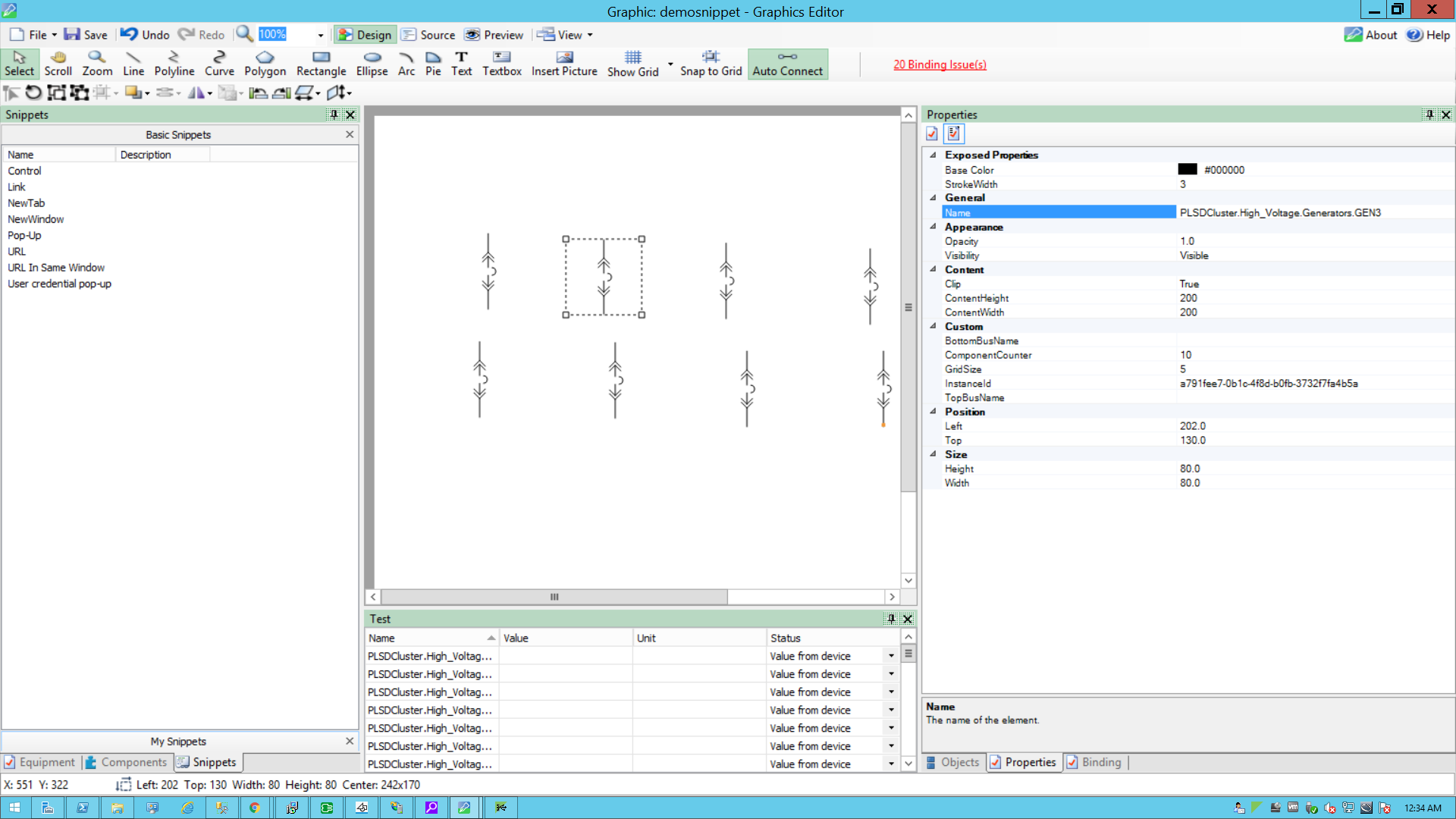

In the bottom right corner, select the Properties tab.
Select on General > Name. The name visible in the Name field is a component name.

Go to File > Save As > Project TGML.
Enter a file name, and then select Save.

To view the snippet behavior:

In a web browser, log into POWeb Applications (https://localhost/webhmi or https://ipaddress/webhmi).

The Power Operation Web Applications Home page appears.

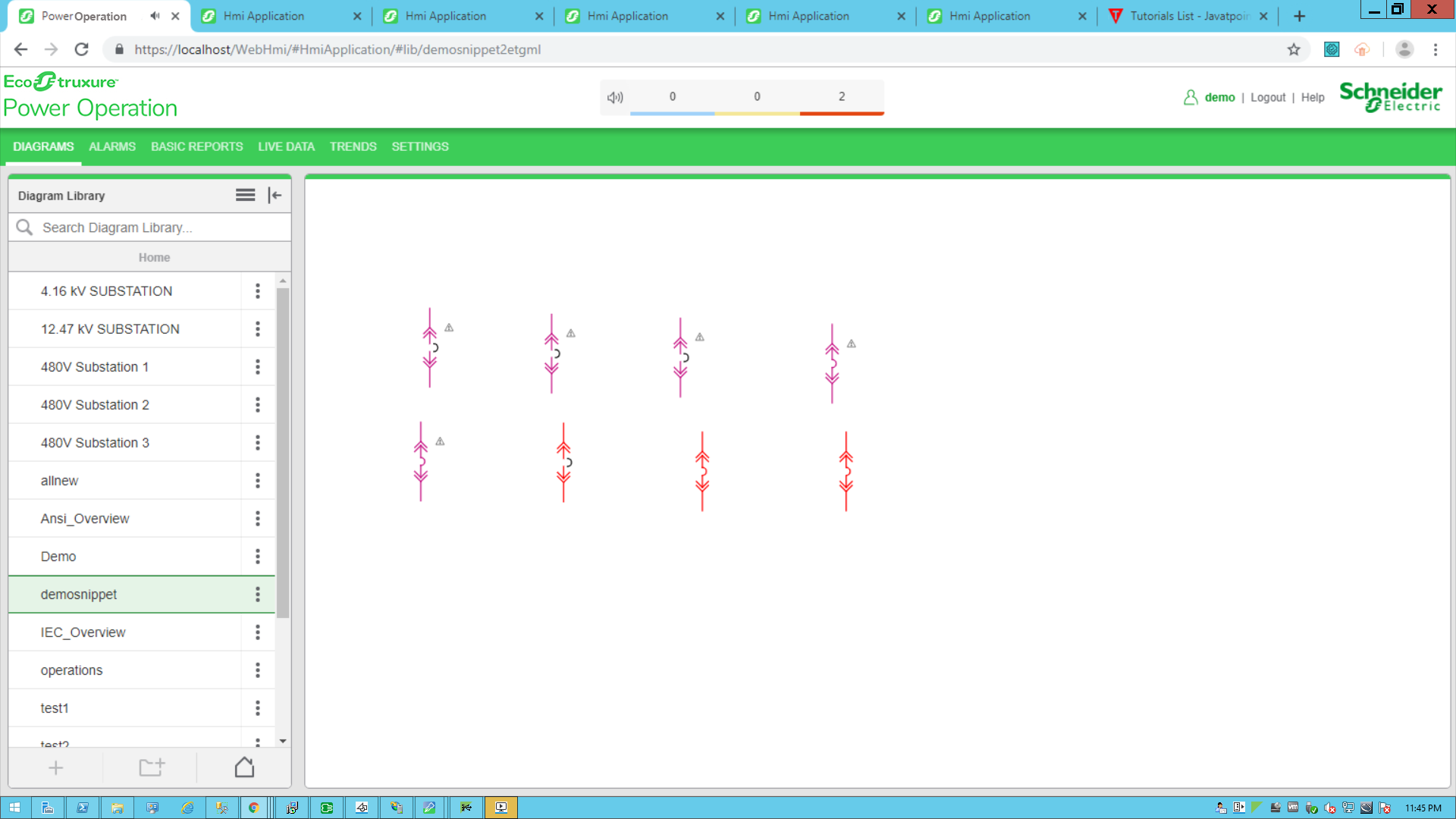

Select the new TGML file from the Diagram Library.
Select on the circuit breaker.

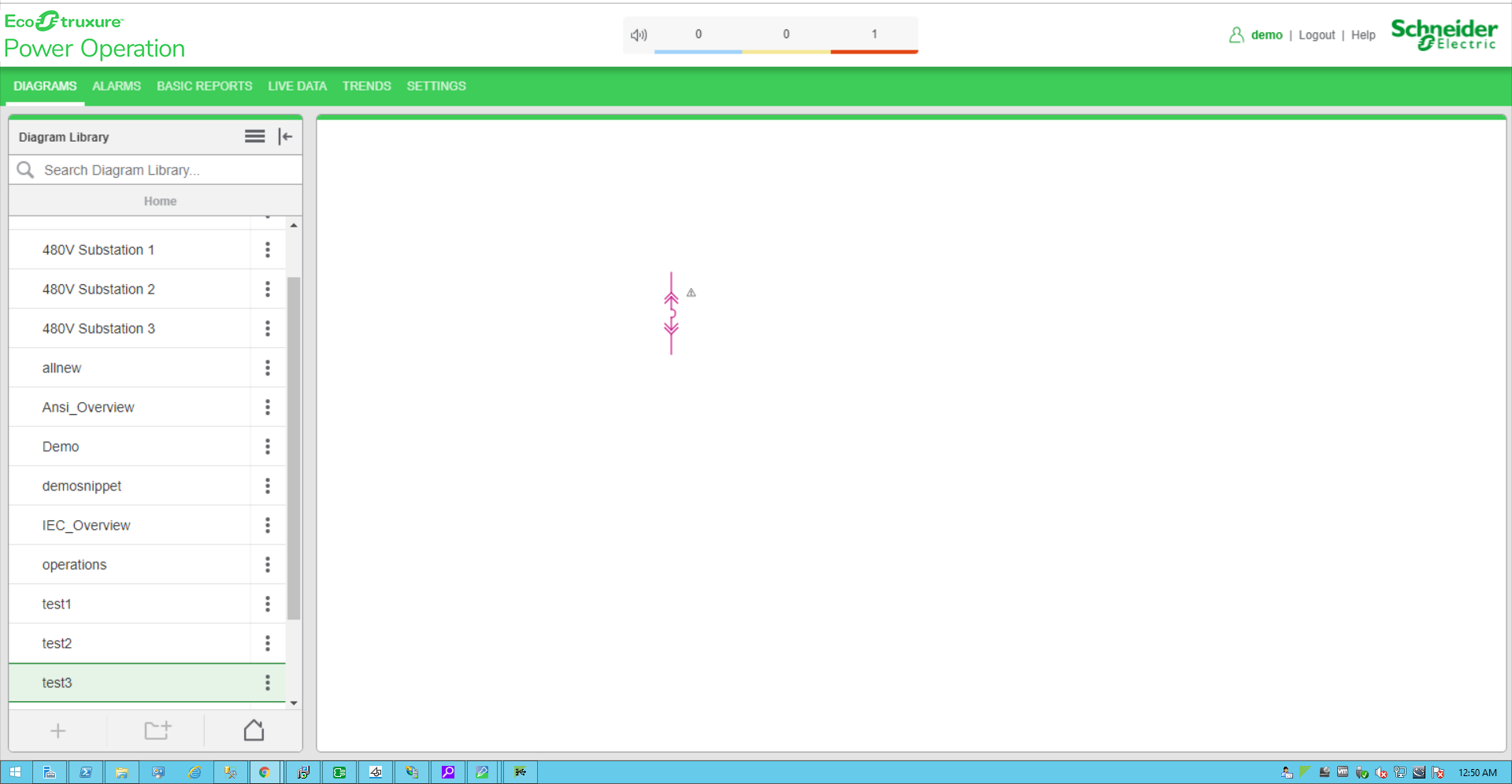

The new link is opened:
