Switch
A switch in an electronic device, which is used to interrupt the flow of electricity or electric current.
The different types of switches that are supported in the Power Operation are:
| Type | Description |
|---|---|
| ANSI type | ANSI SW_General |
| SW_Isolated | |
| IEC type | SW_Fused |
| SW_Fused_Isolated | |
| SW_General | |
| SW_Knife |
The bind properties available for switches are:
- TopBusColor
- IsSwitchOn
- BottomBusColor
The graphic representation of the default position and the bind properties is explained in the below table:
| Bind Property | Description | Graphic |
|---|---|---|

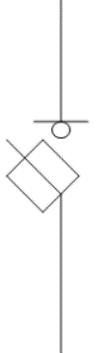

| NA | Switch is in default position. |
|
| IsSwitchOn | Switch is On. |
|
| If the switch is Off, the circuit representation looks as shown. |
|
