Network Settings

Overview

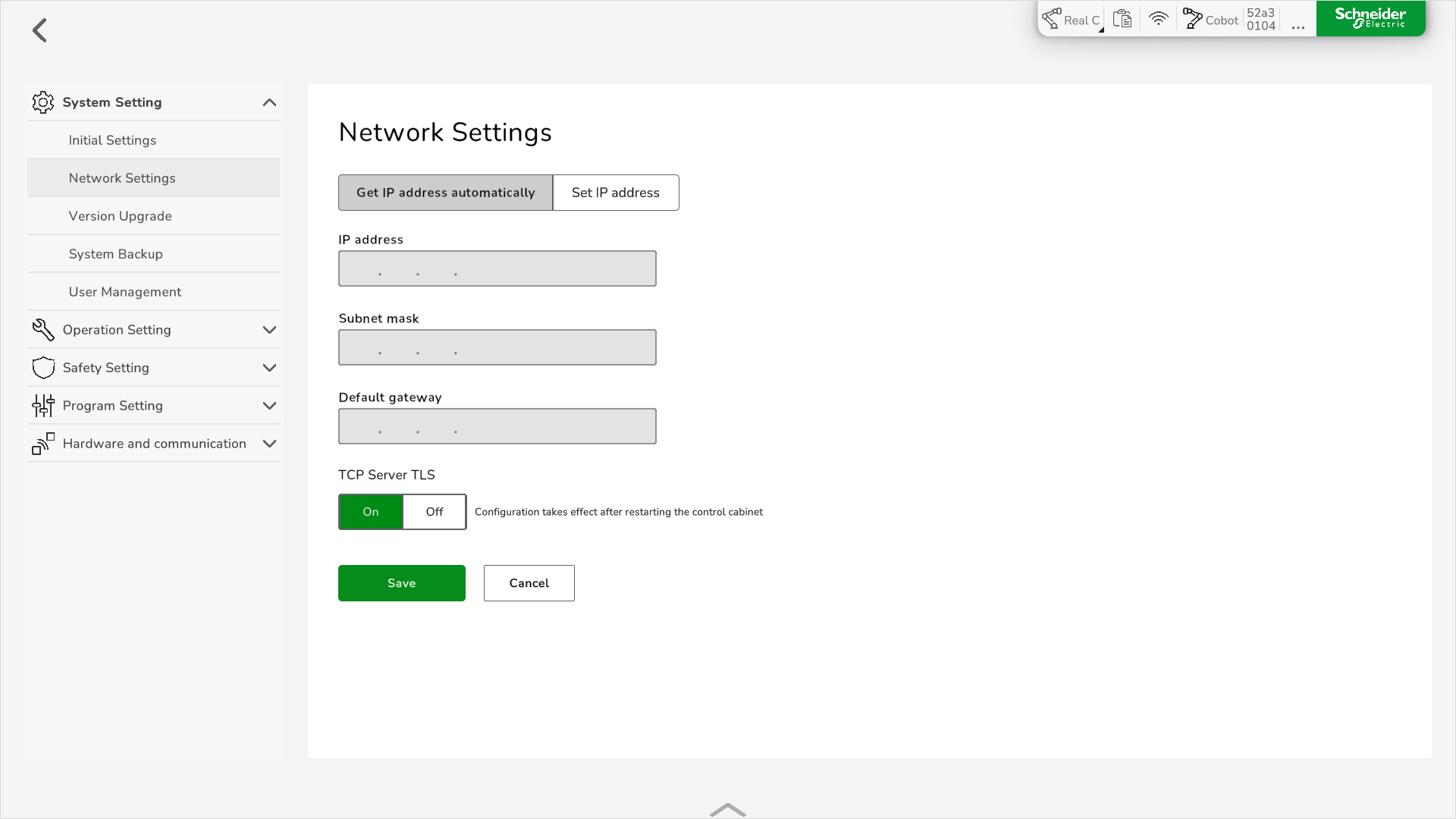

To define how the Lexium Cobot should acquire the IP address, go to Settings > System Setting > Network Settings. By default, the Lexium Cobot gets the IP address automatically.

In case the IP address of the Lexium Cobot needs to be set, ensure that the devices communicating with the Lexium Cobot over the network are on the same subnet as the Lexium Cobot.

NOTE:

Disable and power-off the Lexium Cobot Arm when setting the IP address.
After confirmation of the address change, a network restart is performed automatically by the software.
