Box iPC Installation

Installation of the Box iPC Universal/Performance (HMIBMU/HMIBMP)

Step	Action
1	Remove the power and confirm that the power supply is disconnected from its power source.
2	Wall mounting: Fasten the Box iPC Universal/Performance on the cabinet with four M4 screws (6 mm (0.24 in)): NOTE: oThe book mounting is not allowed for DNV (Det Norske Veritas) certified configuration. oThe recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in). Horizontal mounting: Fasten the Box iPC Universal/Performance with four M4 screws (8 mm (0.31 in)): NOTE: oThe horizontal mounting is allowed with a temperature derating. (see Environmental Characteristics). oThe recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in).

Step

Action

Remove the power and confirm that the power supply is disconnected from its power source.

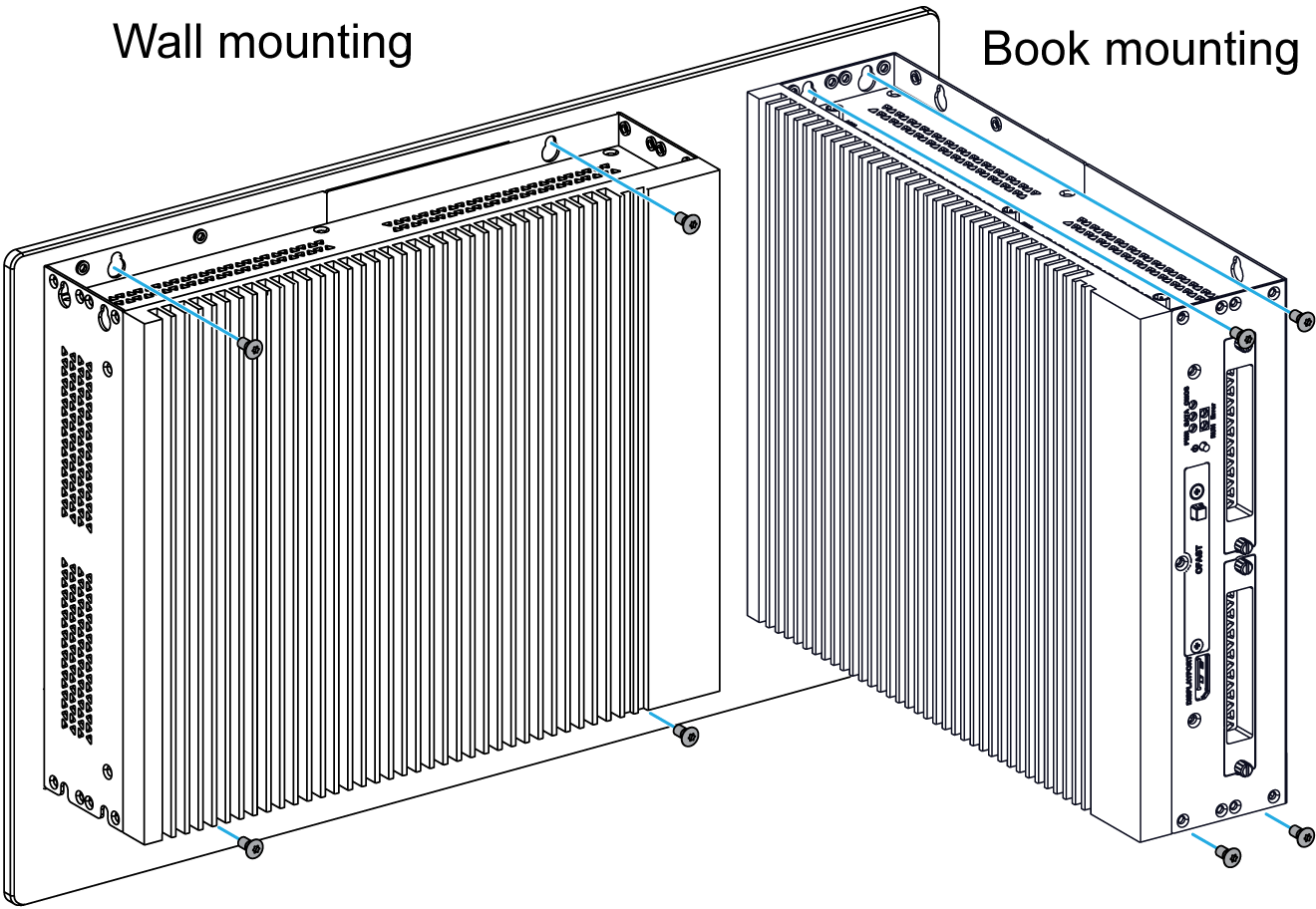

Wall mounting:

Fasten the Box iPC Universal/Performance on the cabinet with four M4 screws (6 mm (0.24 in)):

NOTE:

oThe book mounting is not allowed for DNV (Det Norske Veritas) certified configuration.

oThe recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in).

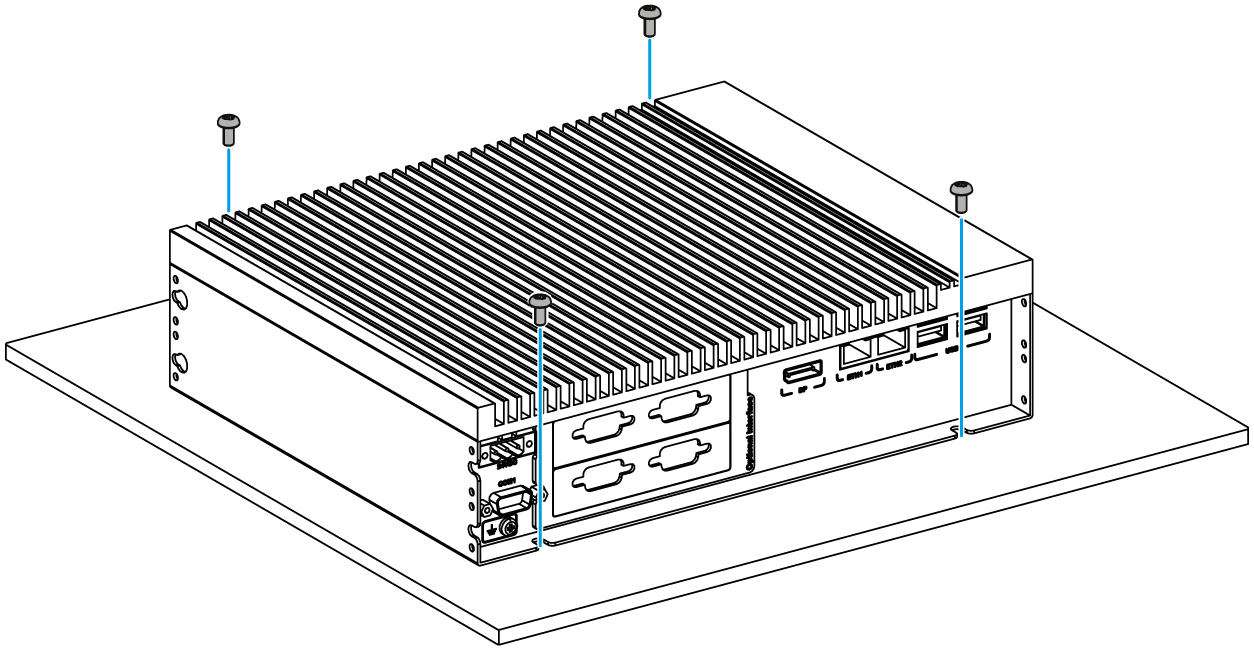

Horizontal mounting:

Fasten the Box iPC Universal/Performance with four M4 screws (8 mm (0.31 in)):

NOTE:

oThe horizontal mounting is allowed with a temperature derating. (see Environmental Characteristics).

oThe recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in).

Installation of the Box iPC Optimized (HMIBMI/HMIBMO)

Step	Action
1	Remove the power and confirm that the power supply is disconnected from its power source.
2	Wall mounting: Fasten the Box iPC on the cabinet with four M4 screws (8 mm (0.31 in)). Book mounting: Fasten the Box iPC on the cabinet with two M4 screws (8 mm (0.31 in)). NOTE: The recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in). Horizontal mounting: Fasten the Box iPC with four M4 screws (8 mm (0.31 in)): NOTE: oThe horizontal mounting is allowed with a temperature derating (see Environmental Characteristics). oThe recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in).

Step

Action

Remove the power and confirm that the power supply is disconnected from its power source.

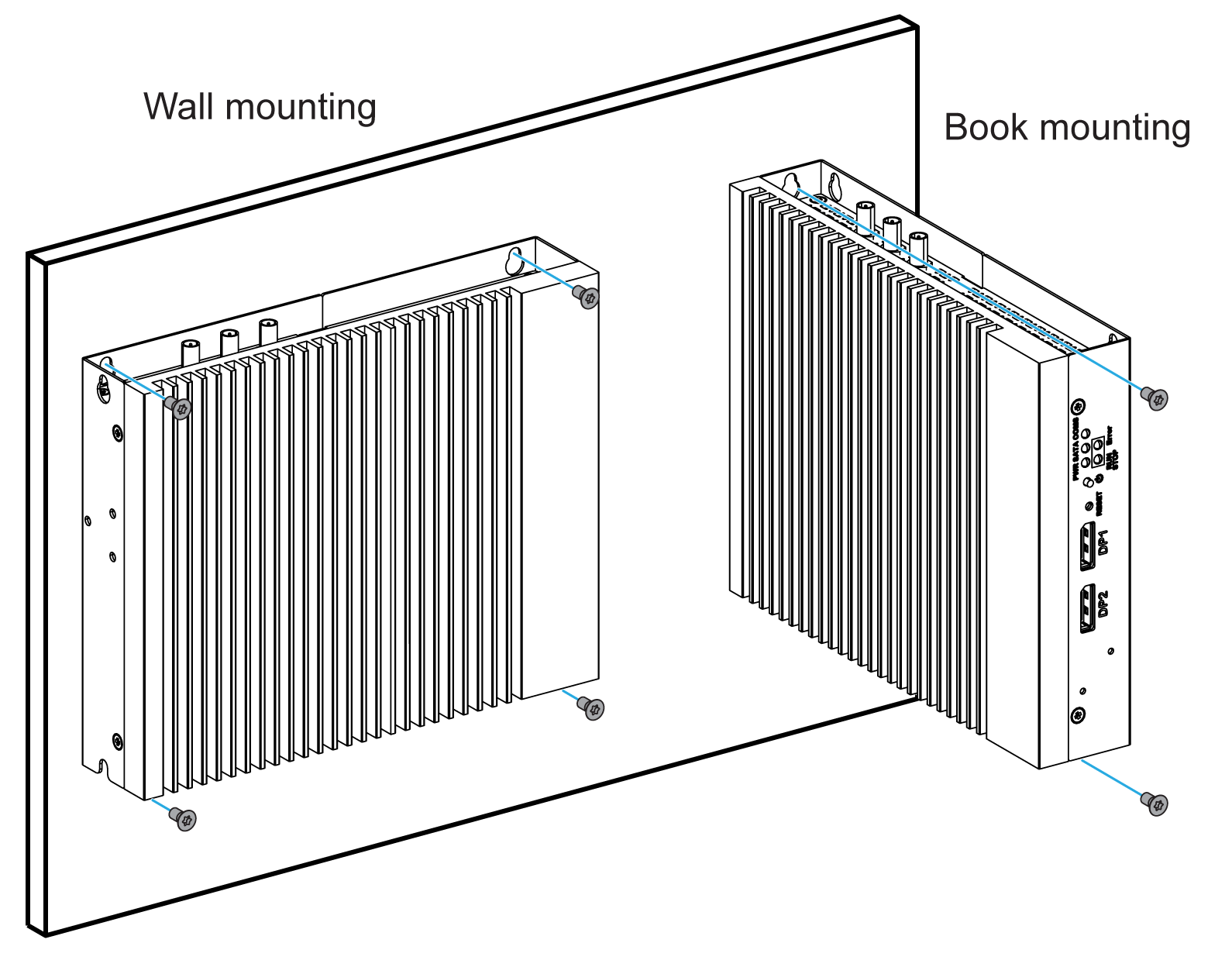

Wall mounting:

Fasten the Box iPC on the cabinet with four M4 screws (8 mm (0.31 in)).

Book mounting:

Fasten the Box iPC on the cabinet with two M4 screws (8 mm (0.31 in)).

NOTE: The recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in).

Horizontal mounting:

Fasten the Box iPC with four M4 screws (8 mm (0.31 in)):

NOTE:

oThe horizontal mounting is allowed with a temperature derating (see Environmental Characteristics).

oThe recommended torque to tighten these screws is 0.5 Nm (4.5 lb-in).

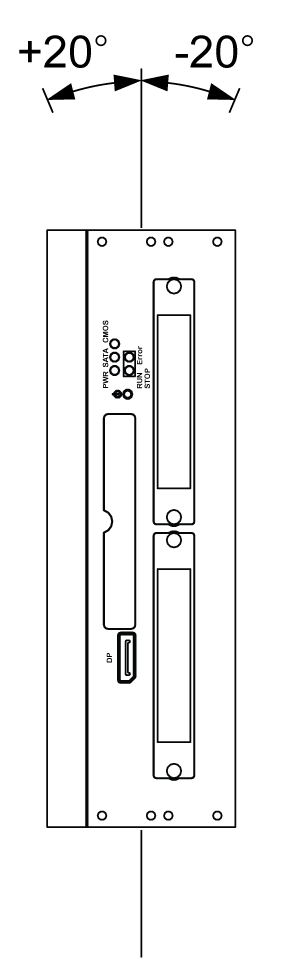

Mounting Orientation

The following figure shows the allowed mounting orientation for the Box iPC:

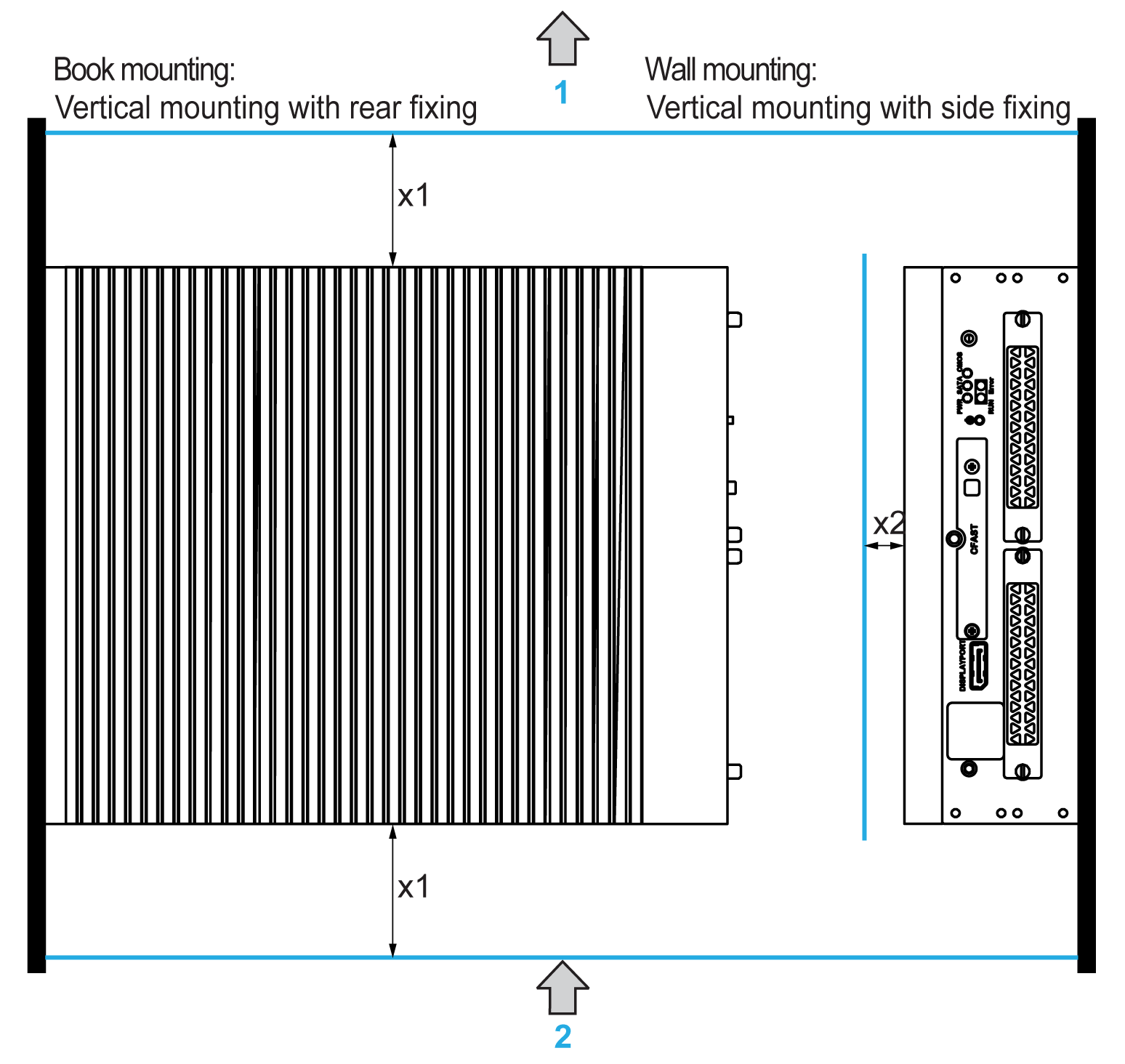

Spacing Requirements

In order to provide sufficient air circulation, mount the Box iPC so that the spacing on the top, bottom, and side is as follows:

1 Air out

2 Air in

x1 > 100 mm (3.93 in)

x2 > 50 mm (1.96 in)

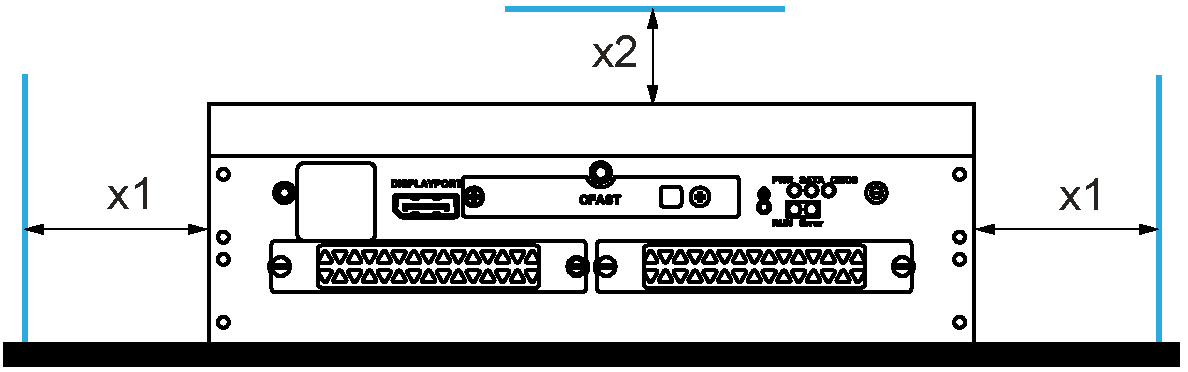

Horizontal mounting:

x1 > 100 mm (3.93 in)

x2 > 50 mm (1.96 in)

Installation Din-Rail Mounting of the Box iPC Optimized (HMIBMI/HMIBMO)

Step	Action
1	Remove the power and confirm that the power supply is disconnected from its power source.

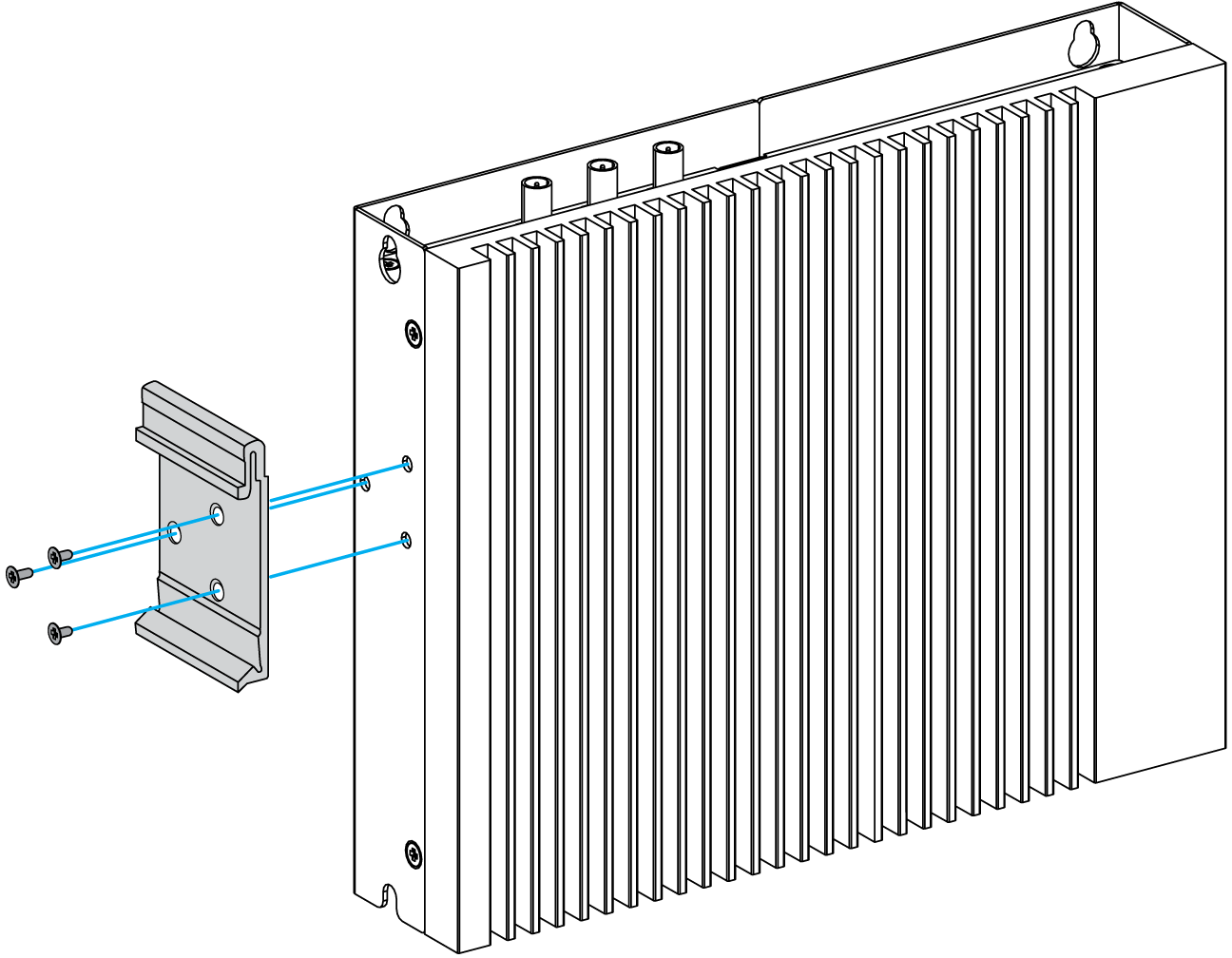

2	Fasten the Din-rail bracket (HMIYADBMODIN11) to the Box iPC with three M3 screws (6 mm (0.23 in)):

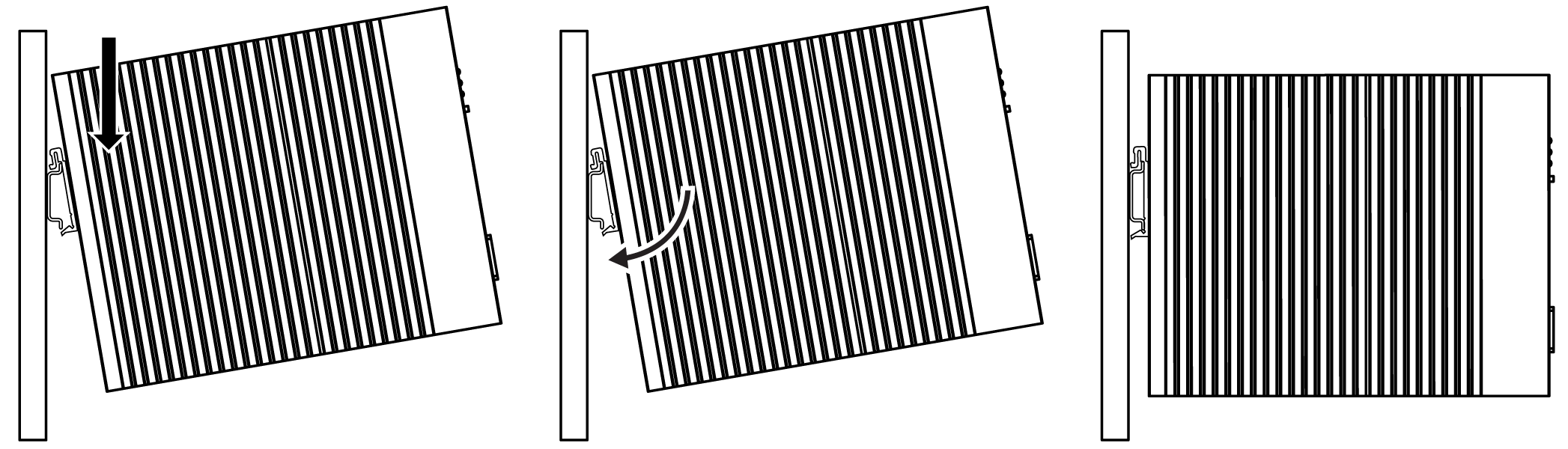

3	Hook the Box iPC Optimized with bracket on the mounting rail:

Step

Action

Remove the power and confirm that the power supply is disconnected from its power source.

Fasten the Din-rail bracket (HMIYADBMODIN11) to the Box iPC with three M3 screws (6 mm (0.23 in)):

Hook the Box iPC Optimized with bracket on the mounting rail:
