With the Conventions Table, you can select conventions that have to be met by your application.

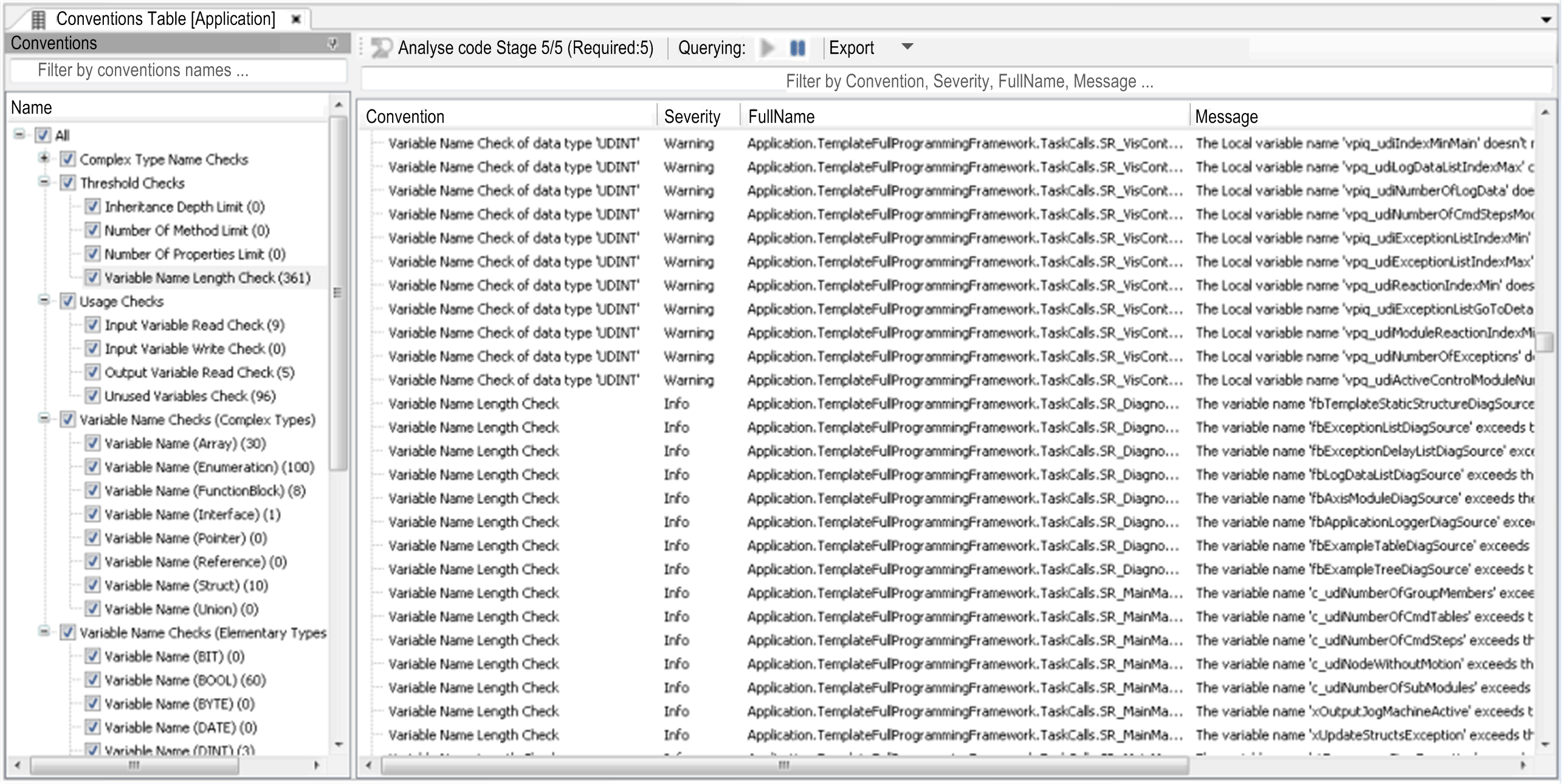

The Conventions Table provides two parts:
oConventions (left-hand side)
List of the available conventions.
Refer to chapter Convention Queries Tab.
oResults window (right-hand side)
List of elements that do not meet the conventions selected on the left side.
The Conventions tree lists and groups convention rules that are available by default (by EcoStruxure Machine Expert installation) and the user-defined rules created with the Query editor. Use the check boxes to activate/deactivate convention rules.
After clicking the Enable and start querying button of the Results window toolbar, additional information is displayed in the Conventions tree:
|
Element |
Description |
|---|---|
|
(<Number>) behind a convention name |
Indicates how many hits this convention created. If no number is displayed, this query was not executed. |
|
(Querying...) behind a convention name |
This query is being executed. |
|
Element |
Description |
|---|---|
|
Analyze Code |
Click this button to start the analysis process of the application this Conventions Table belongs to. If analysis has already been started and state of analysis is up-to-date, this button is disabled. |
|
Stage x/y (Required: z) |
Stage information assigned to the Analyze Code button: oNumber of stages available (y) oCurrently reached stage (x) oRequired stage (z) to use this editor |
|
Querying |
oEnable and start querying button: Click this button to start querying. oDisable and pause querying button: Click this button to pause querying. Click the button again to restart querying from the point you stopped querying. |
|
Export |
Click this button to export the displayed list as a CSV, HTML, or XML file. |
|
Element |
Description |
|---|---|
|
Filter by ... |
Enter text to filter the results. The filter applies to all columns. |
|
Sort a column |
To sort a column, click the column header: oConvention oSeverity oFullName oMessage |
|
Double-click a table entry |
Opens the associated element in its corresponding editor. |
|
Contextual Menu Commands on a table entry |
Right-click a table entry and select one of the contextual menu commands: oGo to definition Opens the associated element in its corresponding editor. oAdd to dependency graph Adds the element to an existing or new dependency graph. oAdd to block list Adds the element to a block list and removes that element form all Conventions Tables until it is deleted from block list again. |
