Opening Data Files



Opening Data Files

Overview

Click the Open... button in the Home window to open a standard Windows Open dialog box for opening the data file.

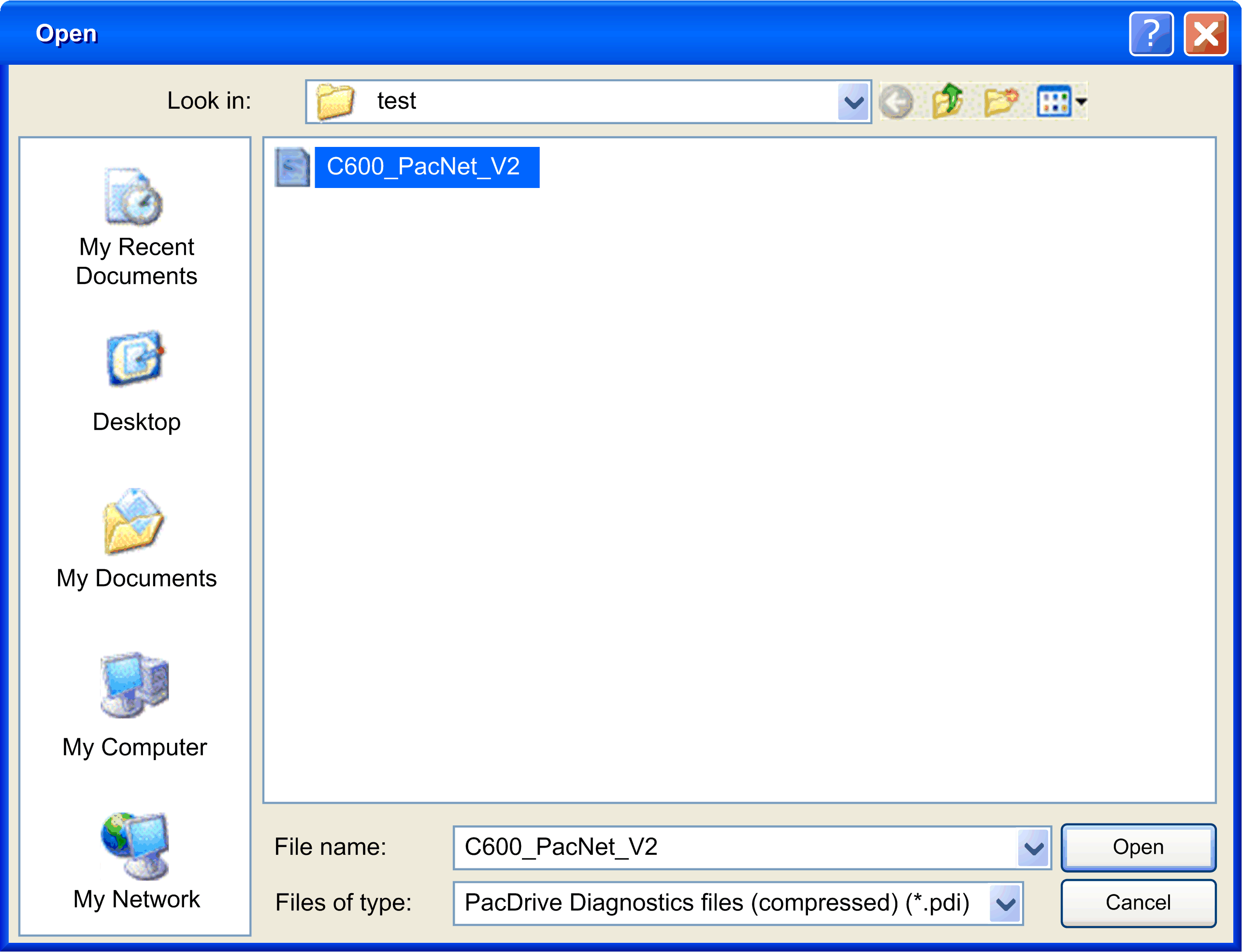

Open dialog box:






Enter the desired path and file name and confirm with Open.

You can select files of type .pdi (compressed file format) or .xml (no compression).
