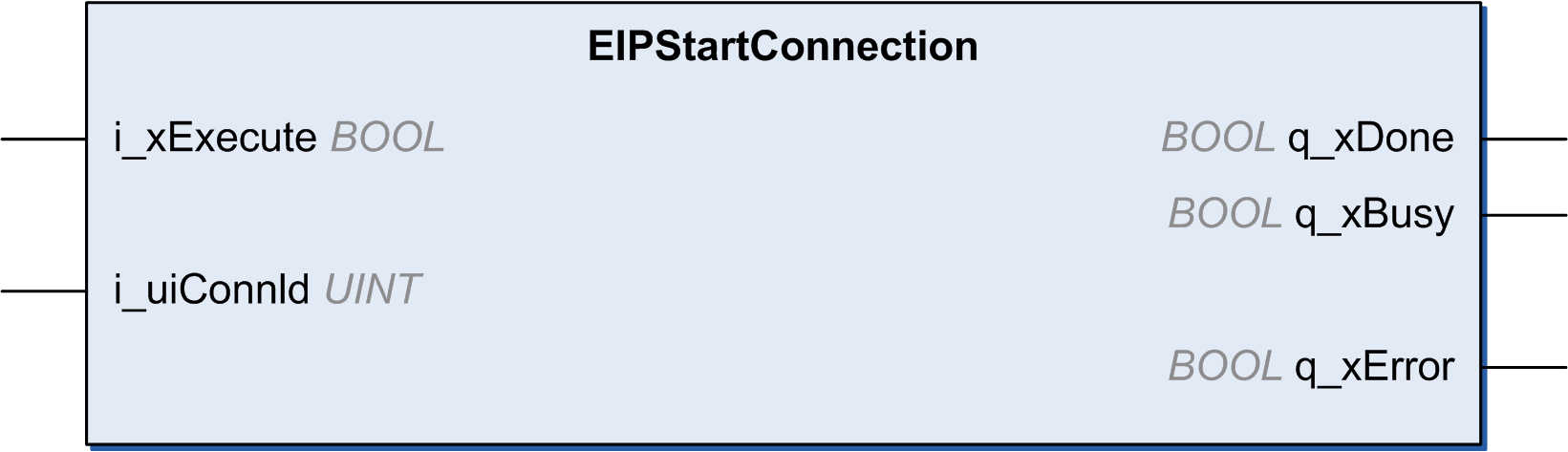

EIPStartConnection: Start a Connection
This function block starts the specified connection by accessing the corresponding control bits and then returns done when the connection is started.
This table describes the input variable:
|
Input |
Data type |
Comment |
|---|---|---|
|
i_xExecute |
BOOL |
Value range: FALSE, TRUE. Default value: FALSE. A rising edge of the input Execute starts the function block. The function block continues execution and the output Busy is set to TRUE. oFALSE: If Enable is set to FALSE, the outputs Done, Error, or CommandAborted are set to TRUE for one cycle. oTRUE: If Enable is set to FALSE, the outputs Done, Error, or CommandAborted remain set to TRUE. |
|
i_uiConnId |
UINT |
Connection id. |
This table describes the output variable:
|
Output |
Data type |
Comment |
|---|---|---|
|
q_xDone |
BOOL |
Value range: FALSE, TRUE. Default value: FALSE. oFALSE: Execution has not been started, or an error has been detected. oTRUE: Execution terminated without an error detected. |
|
q_xBusy |
BOOL |
Value range: FALSE, TRUE. Default value: FALSE. oFALSE: Function block is not being executed. oTRUE: Function block is being executed. |
|
q_xError |
BOOL |
Value range: FALSE, TRUE. Default value: FALSE. oFALSE: Execution of the function block is running, no error has been detected. oTRUE: An error has been detected in the execution of the function block. |
