EipDataExch: Send an Explicit Message

Function Block Description

This function block sends an explicit message.

The time to perform the operation is configurable from the protocol manager.

There is a timeout value for connected messages and a timeout value for unconnected messages.

This generic function block may be used for features not implemented in the EtherNet/IP Explicit messaging Library.

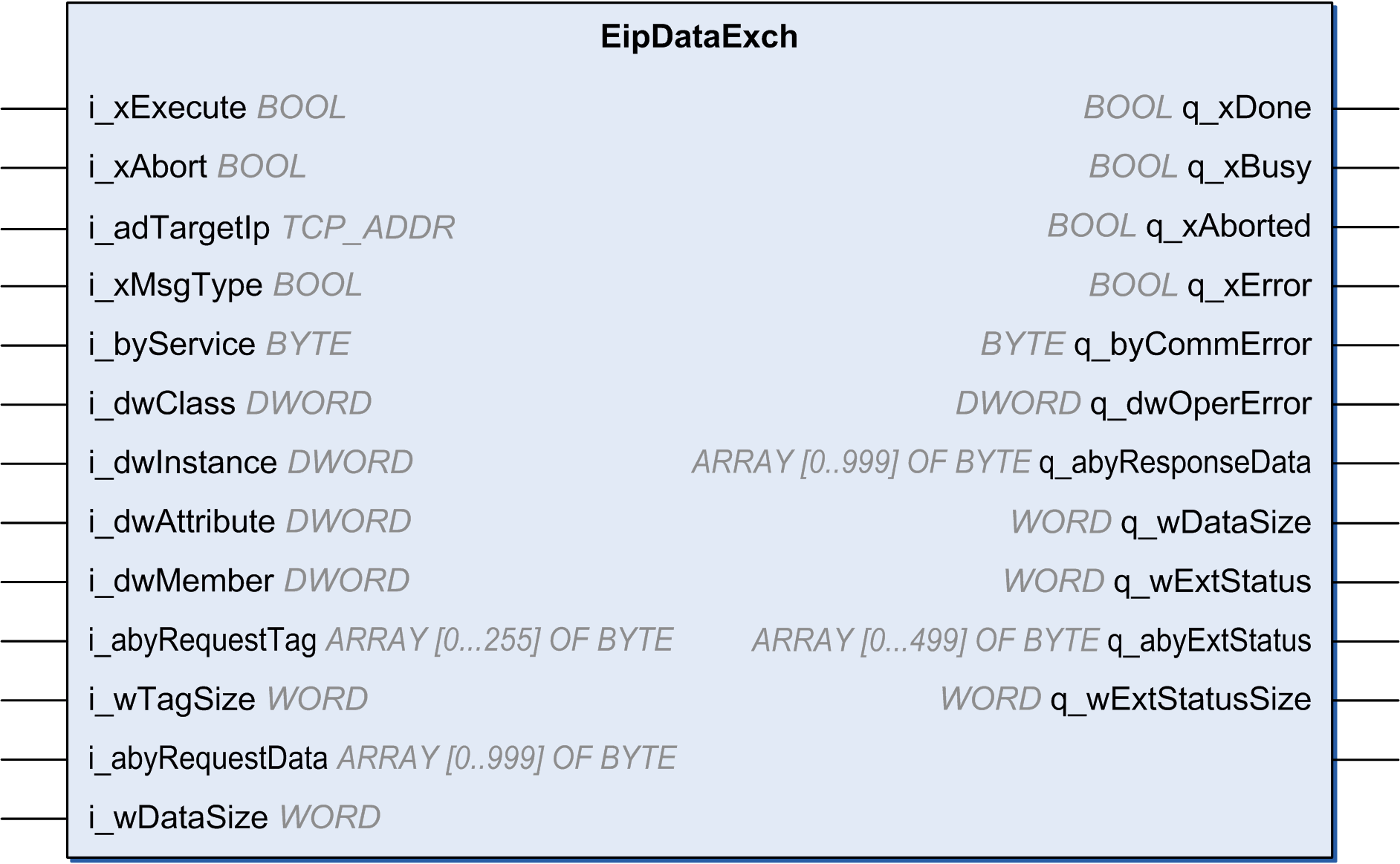

Graphical Representation

IL and ST Representation

To see the general representation in IL or ST language, refer to Function and Function Block Representation

I/O Variable Description

This table describes the input variable:

Input	Type	Inherited from	Comment
i_xExecute	BOOL	BASE	Default value: FALSE. A rising edge of the input Execute starts the function block. The function block continues execution and the output Busy is set to TRUE. oFALSE: If Enable is set to FALSE, the outputs Done, Error, or CommandAborted are set to TRUE for one cycle. oTRUE: If Enable is set to FALSE, the outputs Done, Error, or CommandAborted remain set to TRUE.
i_xAbort	BOOL	BASE	Default value: FALSE. oFALSE: Execution has not been aborted. oTRUE: Execution has been aborted by another function block.
i_xMsgType	BOOL	-	oFALSE: UCCM oTRUE: Connected (Class 3) message
i_adTargetIP	TCP_ADDRES	-	IP address of target
i_byService	BYTE	-	Service to be performed (service code see above)
i_dwClass	DWORD	-	Target class. Refer to How To Find Object Information in Device Documentation. Must be 0xFFFFFFFF if the class should not be a part of request
i_dwInstance	DWORD	-	Target instance. Refer to How To Find Object Information in Device Documentation. Can be 0 if the target is class instance. Must be 0xFFFFFFFF if the instance should not be a part of request
i_dwAttribute	DWORD	-	Target attribute. Refer to How To Find Object Information in Device Documentation. Must be 0xFFFFFFFF if the attribute should not be a part of request
i_dwMember	DWORD	-	Target member. Refer to How To Find Object Information in Device Documentation. Must be 0xFFFFFFFF if the member should not be a part of request
i_abyRequestTag	ARRAY OF [0…250] BYTE	-	Target extended symbol segment. If not used i_wTagSize must be 0
i_wTagSize	WORD	-	The actual size of the i_abyRequestTag
i_abyRequestData	ARRAY OF [0…999] BYTE	-	Data that should be sent to the target. If not used i_wDataSize must be 0
i_wDataSize	WORD	-	The actual size of the i_abyRequestData

This table describes the output variable:

Output	Type	Inherited from	Comment
q_xDone	BOOL	BASE	Default value: FALSE. oFALSE: Execution has not been started, or an error has been detected. oTRUE: Execution terminated without an error detected.
q_xBusy	BOOL	BASE	Default value: FALSE. oFALSE: Function block is not being executed. oTRUE: Function block is being executed.
q_xAborted	BOOL	BASE	Default value: FALSE. oFALSE: Execution has not been aborted. oTRUE: Execution has been aborted by Abort input.
q_xError	BOOL	BASE	Default value: FALSE. oFALSE: Execution of the function block is running, no error has been detected. oTRUE: An error has been detected in the execution of the function block.
q_byCommError	CommunicationErrorCodes	BASE	Communication error code
q_dwOperError	OperationErrorCodes	BASE	Operation error code
q_abyResponseData	ARRAY OF [0…999] BYTE	-	Response Data in case of a success
q_wDataSize	WORD	-	The size of the response Data in bytes
q_abyExtStatus	ARRAY OF [0…499] BYTE	-	Extended Status Data in case of an error response
q_wExtStatusSize	WORD	-	The size of the Extended Status Data in 16-bit words
q_wExtStatus	WORD	-	Extended status word

Example

This is an example of a call of this function:

MyEipDataExch(

i_xExecute:= Execute,

i_xAbort:= Abort,

q_xDone=> Done,

q_xBusy=> Busy,

q_xAborted=> Aborted,

q_xError=> Err,

q_byCommError=> CommError,

q_dwOperError=> OperError,

i_adTargetIp:= IpAddr,

i_xMsgType:= MsgType,

i_byService:= Service,

i_dwClass:= Class,

i_dwInstance:= Instance,

i_dwAttribute:= Attribute,

i_dwMember:= Member,

i_abyRequestTag:= RequestTag,

i_wTagSize:= TagSize,

i_abyRequestData:= RequestData,

i_wDataSize:= ReqDataSize,

q_abyResponseData=> ResponseData,

q_wDataSize=> ResDataSize,

q_abyExtStatus=> ExtStatusArray,

q_wExtStatusSize=> ExtStatusSize,

q_wExtStatus => ExtStatus);
