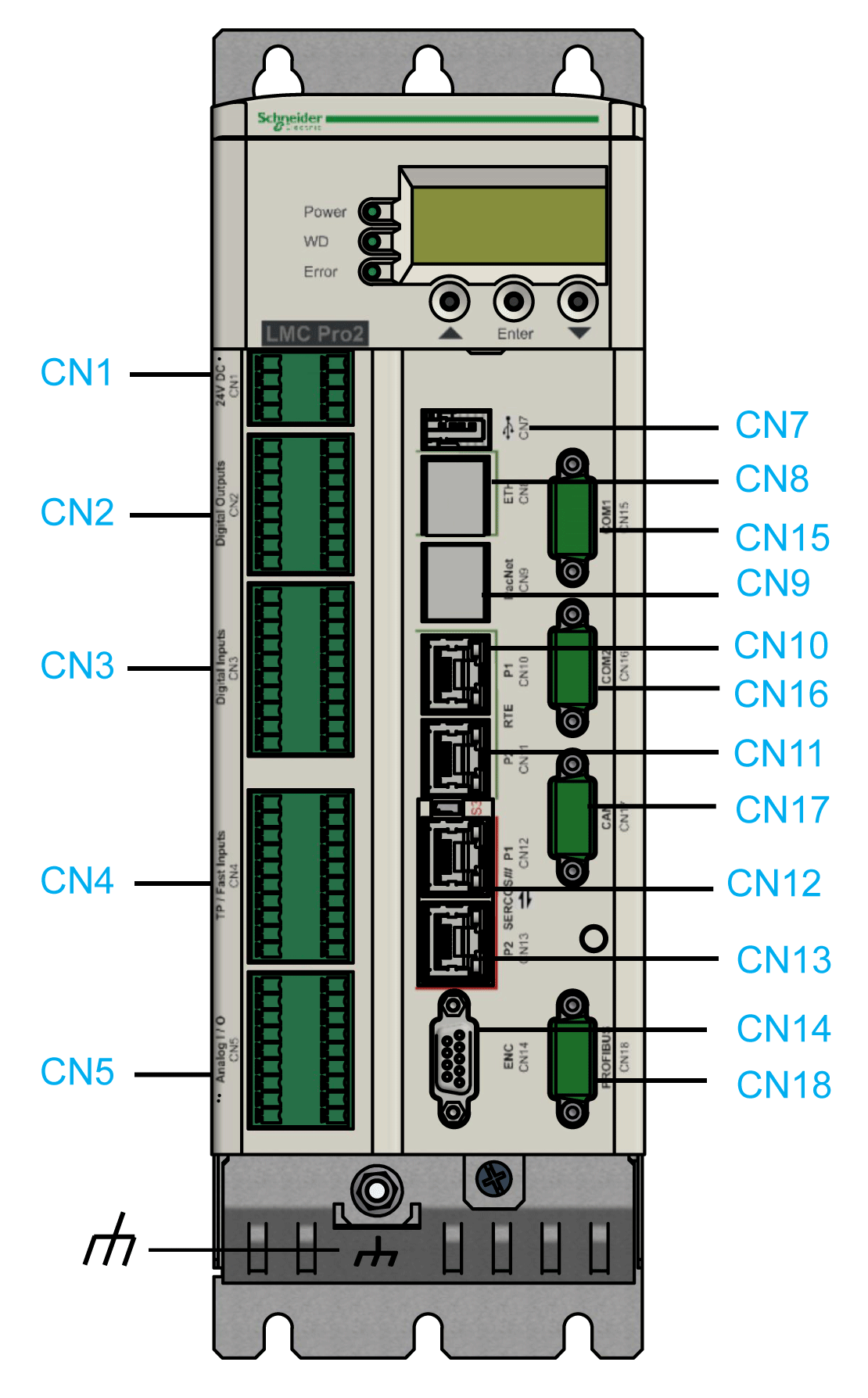

Front view of the PacDrive LMC Pro/Pro2:

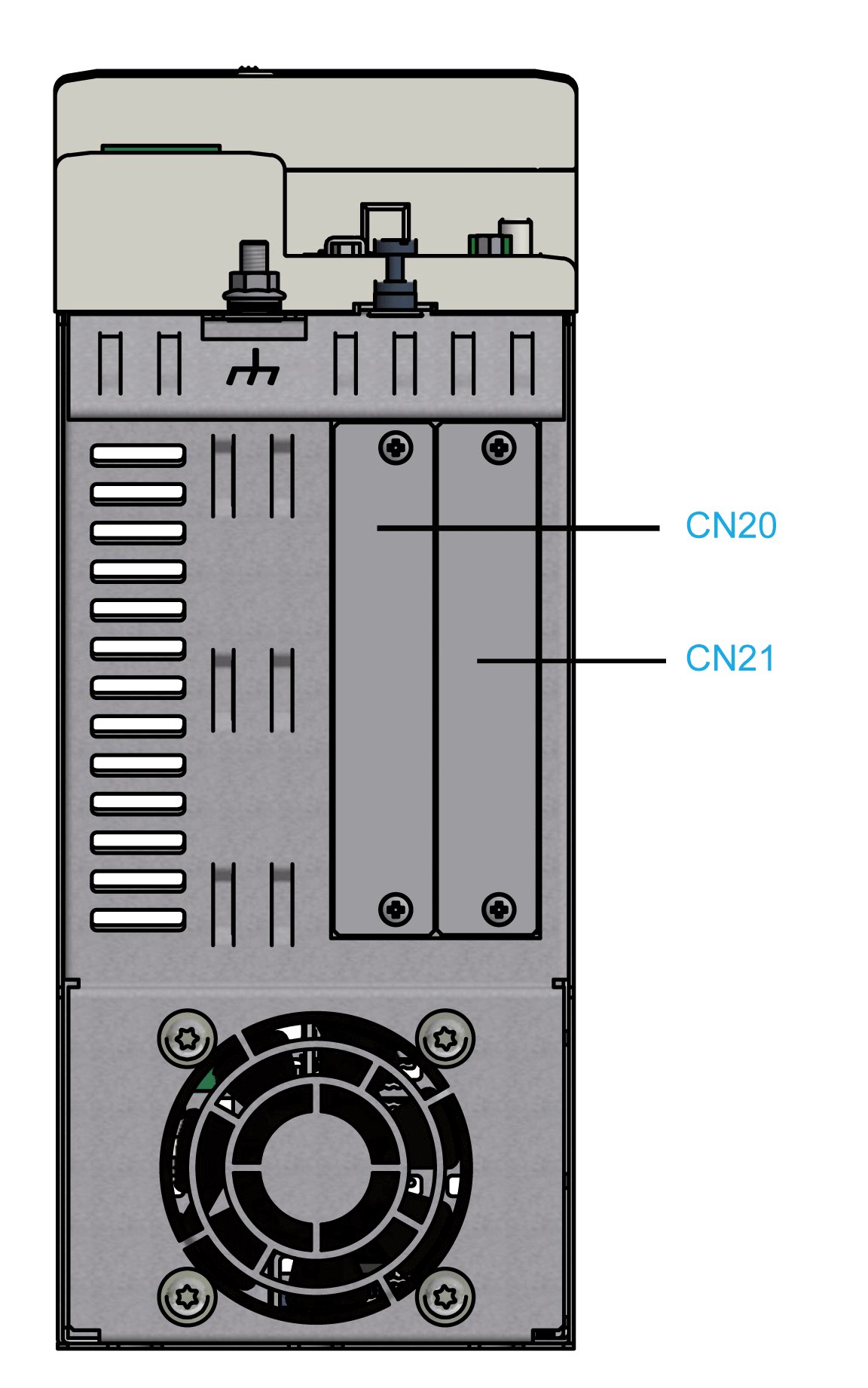

Bottom view of the PacDrive LMC Pro/Pro2:

CN1

Control voltage / watchdog

1...1.5

17...16

–

CN2

Digital outputs

1...1.5

17...16

–

CN3

Digital inputs

0.5...1.5

20...16

–

CN4

TP / fast digital inputs

0.5...1.5

20...16

–

CN5

Analog inputs / outputs

0.5...1.5

20...16

–

CN7

USB host (USB-A)

–

–

–

CN8

Ethernet connection

–

–

–

CN9

PacNet

–

–

–

CN10

RT Ethernet, port 1

–

–

–

CN11

RT Ethernet, port 2

–

–

–

CN12

Sercos, port 1

–

–

–

CN13

Sercos, port 2

–

–

–

CN14

Master encoder (Hiperface)

–

–

0.4 / 3.54

CN14

Master encoder (incremental)

–

–

0.4 / 3.54

CN15

COM 1 (RS-232)

–

–

0.4 / 3.54

CN16

COM 2 (RS-485)

–

–

0.4 / 3.54

CN17

CAN

–

–

0.4 / 3.54

CN18

PROFIBUS DP

–

–

0.4 / 3.54

CN20

Option slot 1

–

–

0.5 / 4.42

CN21

Option slot 2

–

–

0.5 / 4.42

Shield connection

4

11

1 / 8.85
