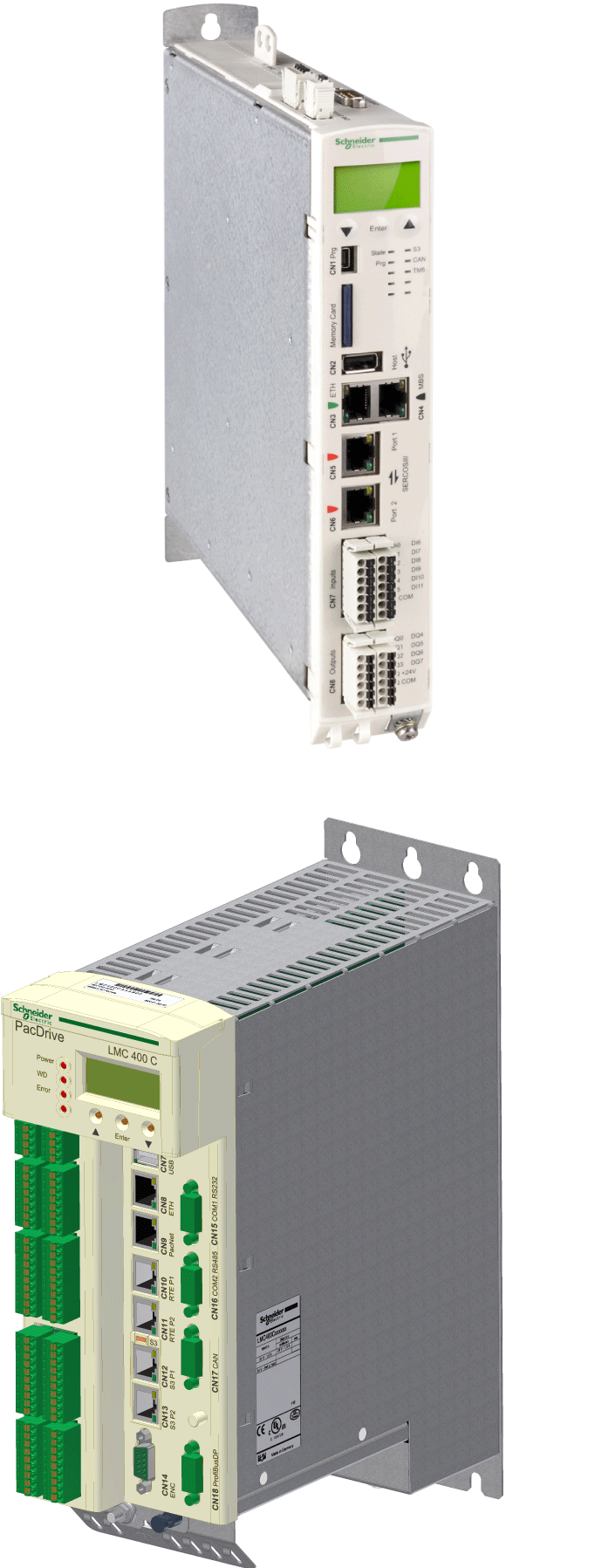

The PacDrive LMC (Logic Motion Controller), with a VxWorks real-time operating system, centrally implements the Logic Controller and motion functions. A PacDrive LMC synchronizes, coordinates, and creates the motion functions of a machine for a maximum of:

o0 Sercos servo drives for the controller PacDrive LMC100

o4 Sercos servo drives for the controller PacDrive LMC101

o6 Sercos servo drives for the controller PacDrive LMC106

o8 Sercos servo drives for the controller PacDrive LMC201

o12 Sercos servo drives for the controller PacDrive LMC212

o16 Sercos servo drives for the controller PacDrive LMC216

o8 Sercos servo drives for the controller PacDrive LMC300

o16 Sercos servo drives for the controller PacDrive LMC400

o16 Sercos servo drives for the controller PacDrive LMC402

o99 Sercos servo drives for the controller PacDrive LMC600

o130 Sercos servo drives for the controller PacDrive LMC802
