Product |
Description |
|---|---|
|

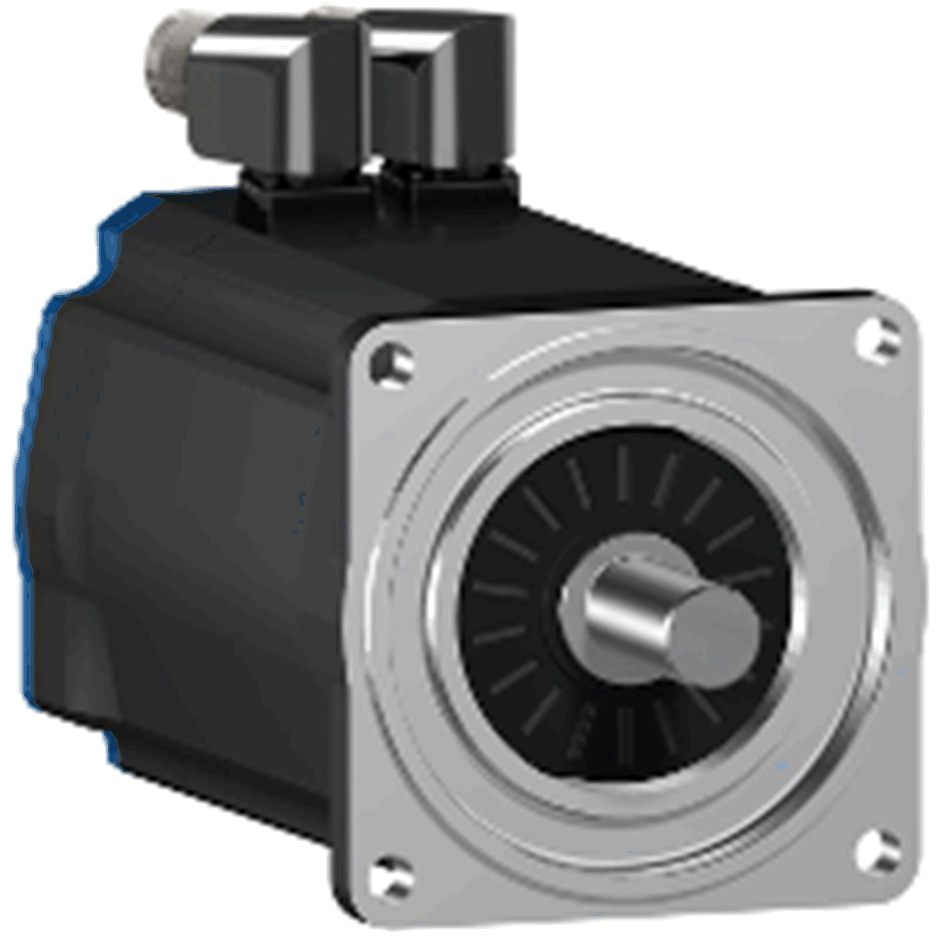

The Lexium SH3 motors are low-inertia AC synchronous servo motors designed for highly dynamic positioning tasks. A drive system consists of the servo motor and the drive. Maximum performance requires the motor and drive to be adapted to each other. |
Because of the low inertia and a high overload capability, the motor Lexium SH3 fulfills many requirements concerning the accuracy, dynamics, and efficiency.
The Lexium SH3 motors are available in six different flange sizes:
oSH3-040 (40 mm / 1.57 in.)
oSH3-055 (55 mm / 2.17 in.)
oSH3-070 (70 mm / 2.76 in.)
oSH3-100 (100 mm / 3.94 in.)
oSH3-140 (140 mm / 5.51 in.)
oSH3-205 (205 mm / 8.07 in.)
The motors have the following features:
oOverload protection by integrated temperature sensor (external evaluation required)
oLow moment of inertia
oHigh power density
oExcellent dynamics
oHigh overload capability
oBroad torque range
oSpecial winding for low phase currents
oMotor connection via circular connectors
oEasy commissioning via electronic nameplate in SinCos encoder
oLow maintenance
The motors are available with various options such as:
oVarious encoder systems
oHolding brake
oVarious shaft versions
oVarious degrees of protection
oVarious lengths
oVarious sizes
oVarious connection versions
For further information, refer to the SH3 Servo Motor - Motor Manual.
