Electrical Connections - Single Drive LXM62DC13C21000/LXM62DC13E21000

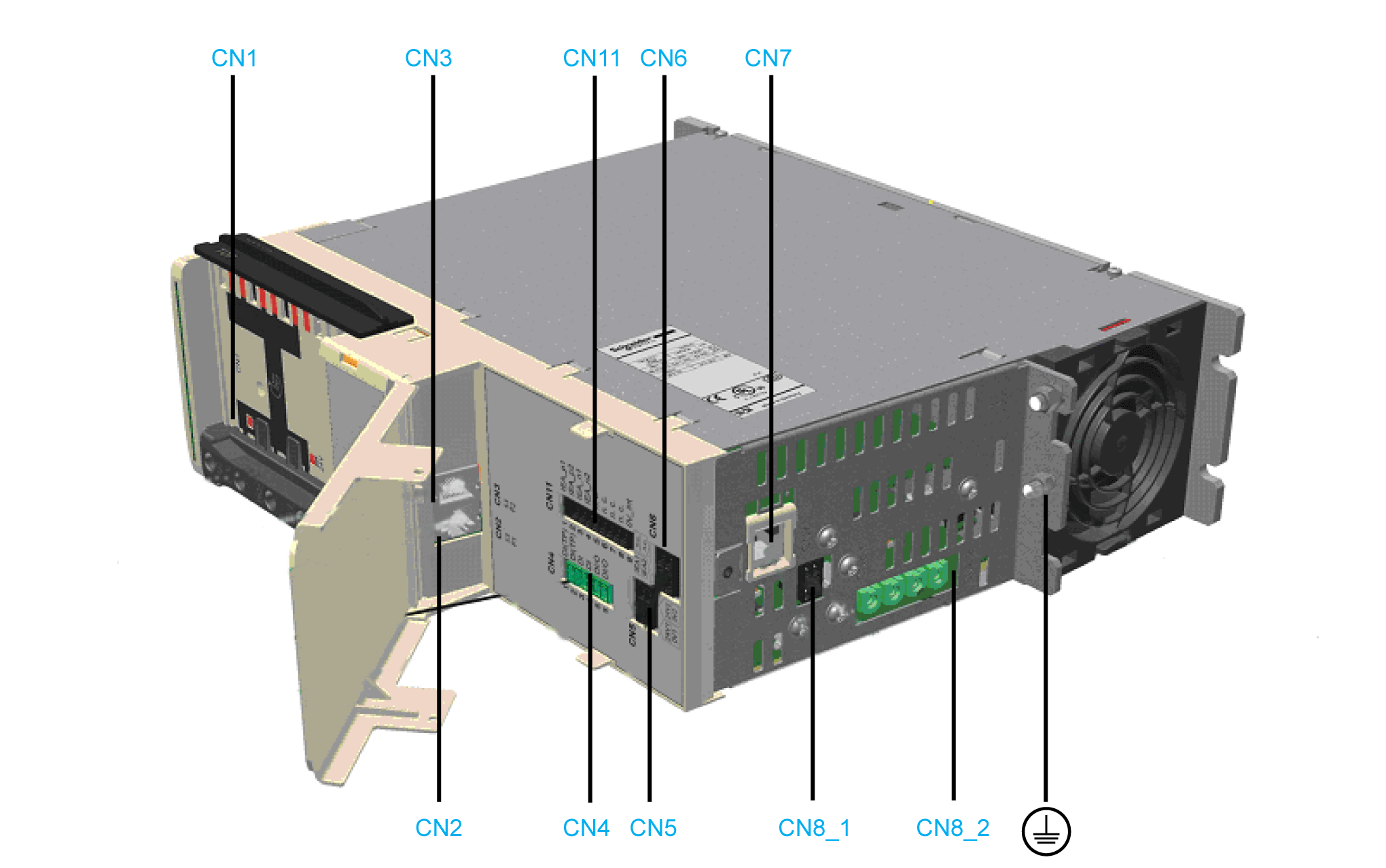

Overview






Connector

Description

Connection cross-section [mm2] / [AWG]

Tightening torque [Nm] / [lbf in]

CN1

Bus Bar Module

2.5 / 22.13

CN2/CN3

Sercos

CN4

Digital inputs/outputs

0.25...1.5 / 24...16

CN5

24 V supply for digital inputs/outputs

0.25...1.5 / 24...16

CN6

Inverter Enable

0.2...1.5 / 24...16

CN7

Encoder connector

CN8_1

Motor temperature / holding brake

0.2...1.5 / 24...16

CN8_2

Motor phases

4...6 / 12...10

CN11

Inverter Enable 2-channel

0.2 - 1.5 / 24 - 16






Protective ground (earth)

Mounting point for the shield(1)

3.5 / 30.98

(1)   Refer to External Shield Connection on the Drive Module LXM62DC13C21000/LXM62DC13E21000.

Removable Spring-Clamping Terminal Block Wiring

The details in the following table apply for the wiring on the removable spring-clamping terminal blocks of the CN4, CN5, CN6, CN8_1 and CN11 connections.

Overview of the connection cross-sections for the removable spring-clamping terminal blocks CN4, CN5, CN6, CN8_1 and CN11:






Rigid wire






Flexible wire






Flexible wire with a wire end sleeve without a plastic sleeve






Flexible wire with a wire end sleeve and plastic sleeve






mm2

0.2...1.5

0.2...1.5

0.25...1.5

0.25...0.75

AWG

24...16

24...16

23...16

23...19

The details in the following table apply for the wiring on the removable spring-clamping terminal blocks of the connections CN8_2 (PE, U, V, W).

Overview of the connection cross-sections for the removable spring-clamping terminal blocks CN8_2 motor phases connection (PE, U, V, W):






Rigid wire






Flexible wire






Flexible wire with a wire end sleeve without a plastic sleeve






Flexible wire with a wire end sleeve and plastic sleeve






mm2

0.75...16

0.75...16

0.75...16

0.75...10

AWG

18...6

18...6

18...6

18...8
