The following is required for commissioning:
oCommissioning software “Lexium DTM Library”
http://www.schneider-electric.com/en/download/document/Lexium_DTM_Library/
oFieldbus converter for the commissioning software for connection via the commissioning interface

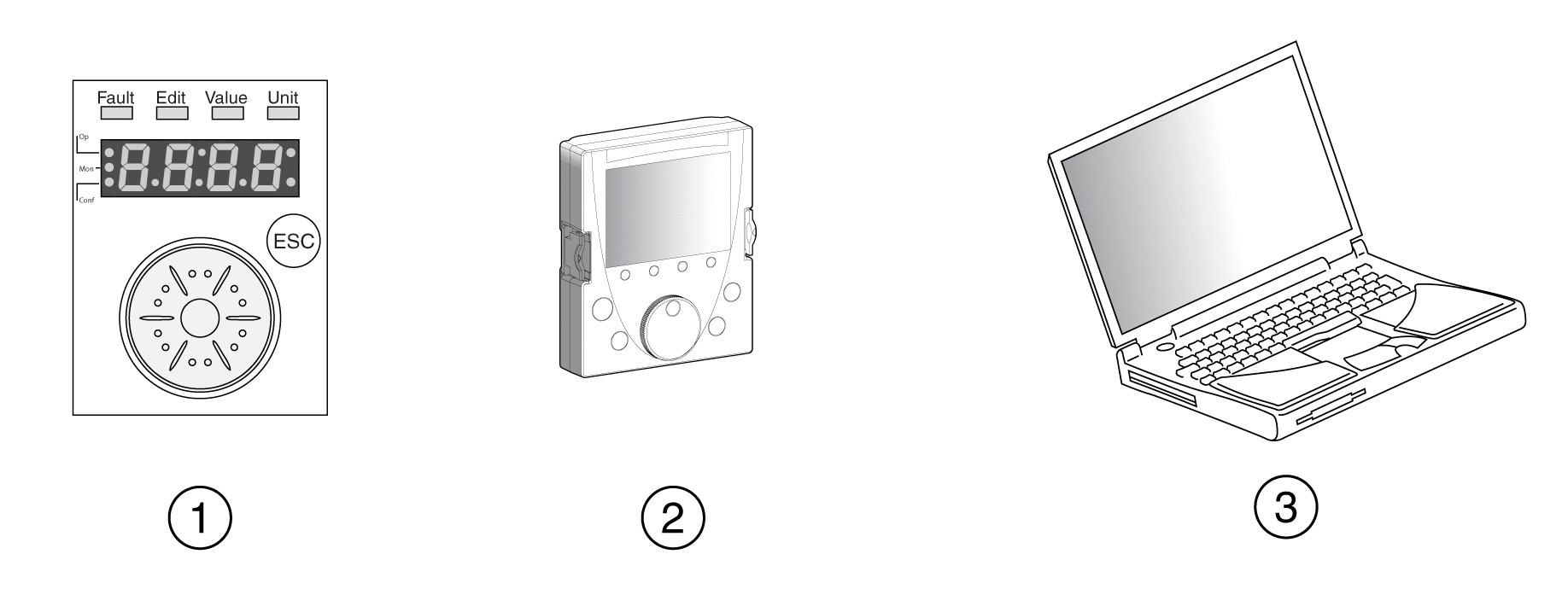

The following interfaces can be used for commissioning, parameterization and diagnostics:
1 Integrated HMI
2 External graphic display terminal
3 PC with commissioning software “Lexium DTM Library”
Device settings can be duplicated. Stored device settings can be transferred to a device of the same type. Duplicating the device settings can be used if multiple devices are to have the same settings, for example, when devices are replaced.
The commissioning software “Lexium DTM Library” has a graphic user interface and is used for commissioning, diagnostics and testing settings.
oTuning of the control loop parameters via a graphical user interface
oComprehensive set of diagnostics tools for optimization and maintenance
oLong-term trace for evaluation of the performance
oTesting the input and output signals
oTracking signals on the screen
oArchiving of device settings and recordings with export function for further processing in other applications
A PC with commissioning software can be connected for commissioning. The PC is connected to a bidirectional USB/RS485 converter, see chapter Accessories and Spare Parts.
