The current threshold value allows you to monitor whether the actual current is below a parameterizable current value.
The current threshold value comprises the current value and the monitoring time.

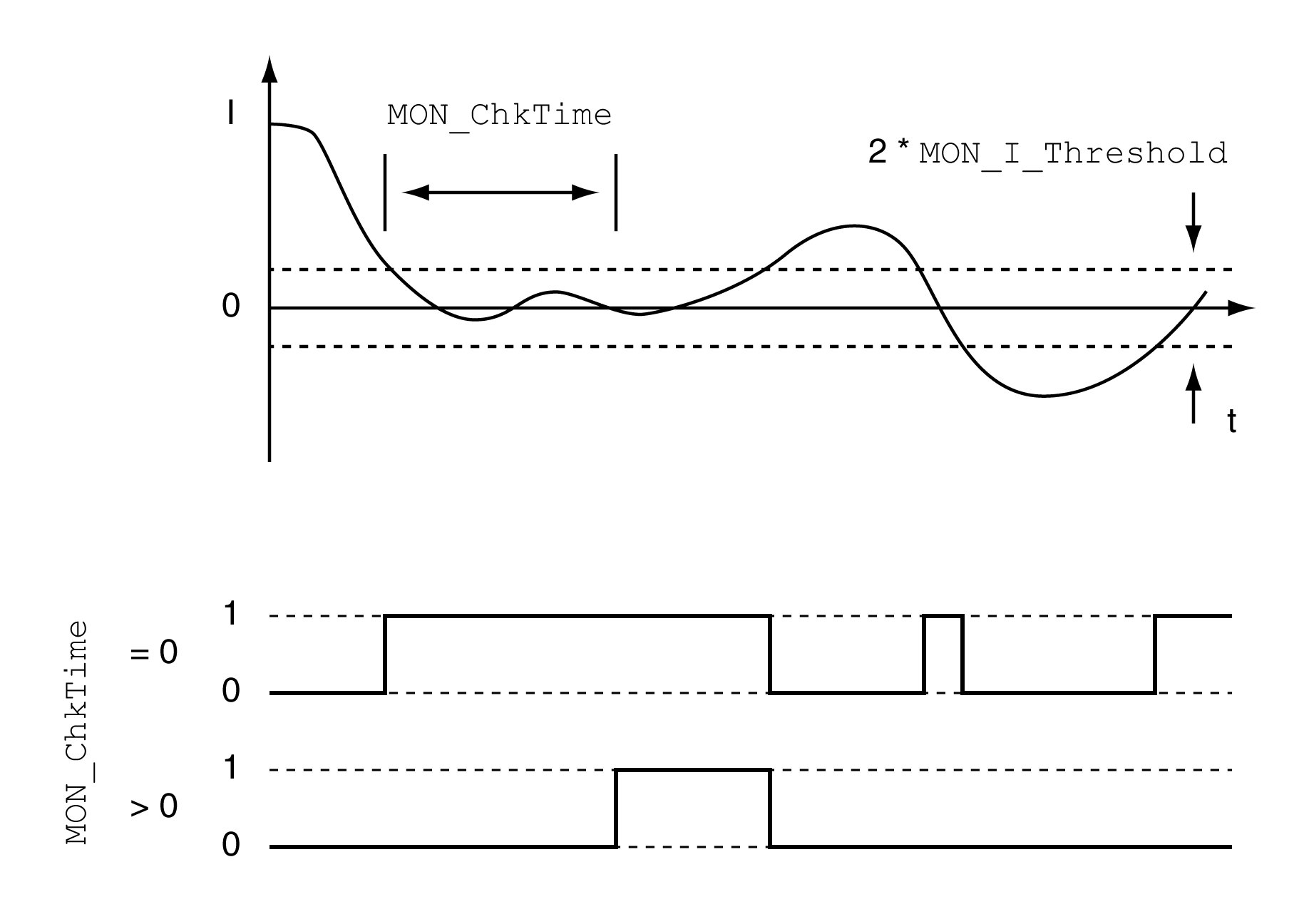

The parameters MON_I_Threshold and MON_ChkTime specify the size of the window.
The status is available via a signal output.
In order to read the status via a signal output, you must first parameterize the signal output function "Current Below Threshold", see chapter Digital Inputs and Outputs.
The parameter MON_ChkTime acts on the parameters MON_p_DiffWin_usr, MON_v_DiffWin, MON_v_Threshold and MON_I_Threshold.
|
Parameter name HMI menu HMI name |
Description |
Unit Minimum value Factory setting Maximum value |
Data type R/W Persistent Expert |
Parameter address via fieldbus |
|---|---|---|---|---|
|
(ConF) → (i-o-) (ithr) |
Monitoring of current threshold. The system monitors whether the drive is below the defined value during the period set with MON_ChkTime. The status can be output via a parameterizable output. The parameter _Iq_act_rms is used as comparison value. Type: Unsigned decimal - 2 bytes Write access via Sercos: CP2, CP3, CP4 In increments of 0.01 Arms. Modified settings become effective immediately. |
Arms 0.00 0.20 300.00 |
UINT16 R/W per. - |
Modbus 1592 IDN P-0-3006.0.28 |
|
(ConF) → (i-o-) (tthr) |
Monitoring of time window. Adjustment of a time for monitoring of position deviation, velocity deviation, velocity value and current value. If the monitored value is in the permissible range during the adjusted time, the monitoring function delivers a positive result. The status can be output via a parameterizable output. Type: Unsigned decimal - 2 bytes Write access via Sercos: CP2, CP3, CP4 Modified settings become effective immediately. |
ms 0 0 9999 |
UINT16 R/W per. - |
Modbus 1594 IDN P-0-3006.0.29 |
