Shield: |
Required, both ends grounded |
|
Twisted Pair: |
Required |
|
PELV: |
Required |
|
Cable composition: |
4 * 0.14 mm2 (AWG 24) |
Use pre-assembled cables to reduce the risk of wiring errors, see chapter Accessories and Spare Parts.
|

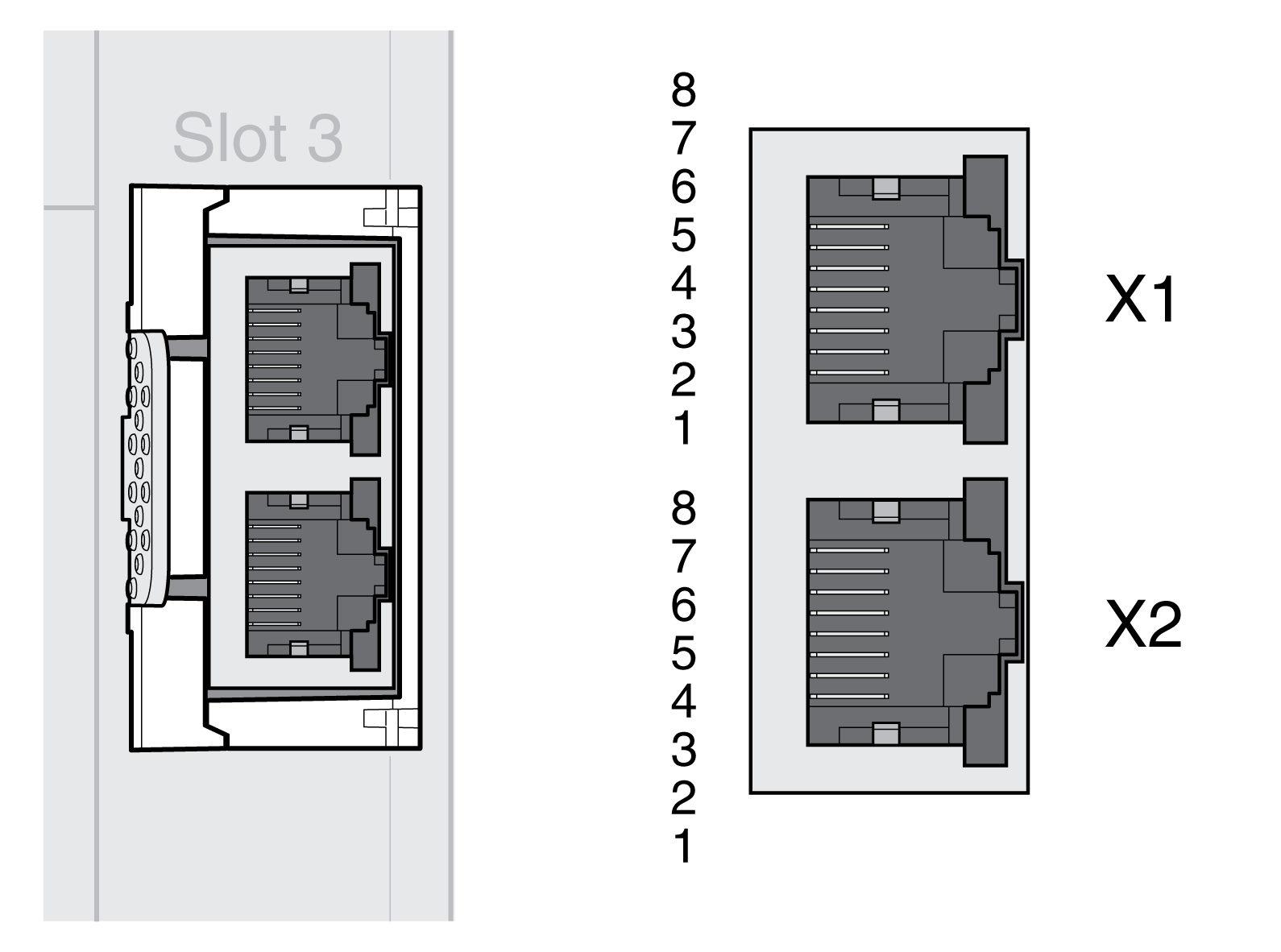

Pin |
Signal |
Meaning |
|---|---|---|
|
1 |
Tx+ |
Ethernet transmit signal + |
|
2 |
Tx- |
Ethernet transmit signal - |
|
3 |
Rx+ |
Ethernet receive signal + |
|
4 ... 5 |
- |
Reserved |
|
6 |
Rx- |
Ethernet receive signal - |
|
7 ... 8 |
- |
Reserved |
|
|
|
UNINTENDED EQUIPMENT OPERATION |
|
Do not connect any wiring to reserved, unused connections, or to connections designated as No Connection (N.C.). |
|
Failure to follow these instructions can result in death, serious injury, or equipment damage. |
oConnect the fieldbus.
oVerify that the connector locks snap in properly.
