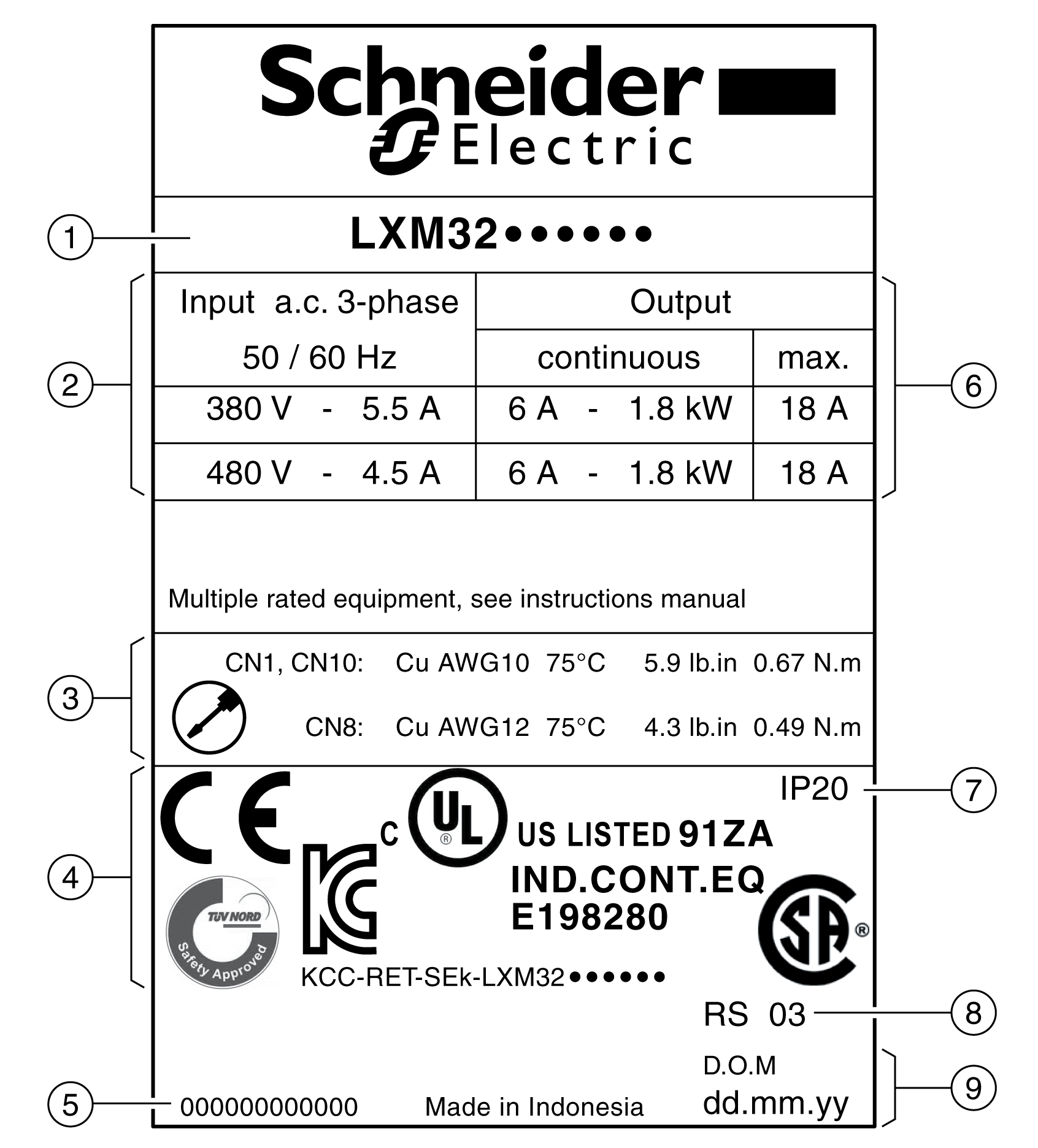

Nameplate

The nameplate contains the following data:

1   Product type, see type code

2   Power stage supply

3   Cable specifications and tightening torque

4   Certifications

5   Serial number

6   Output power

7   Degree of protection

8   Hardware version

9   Date of manufacture
