Overview of Position Controller

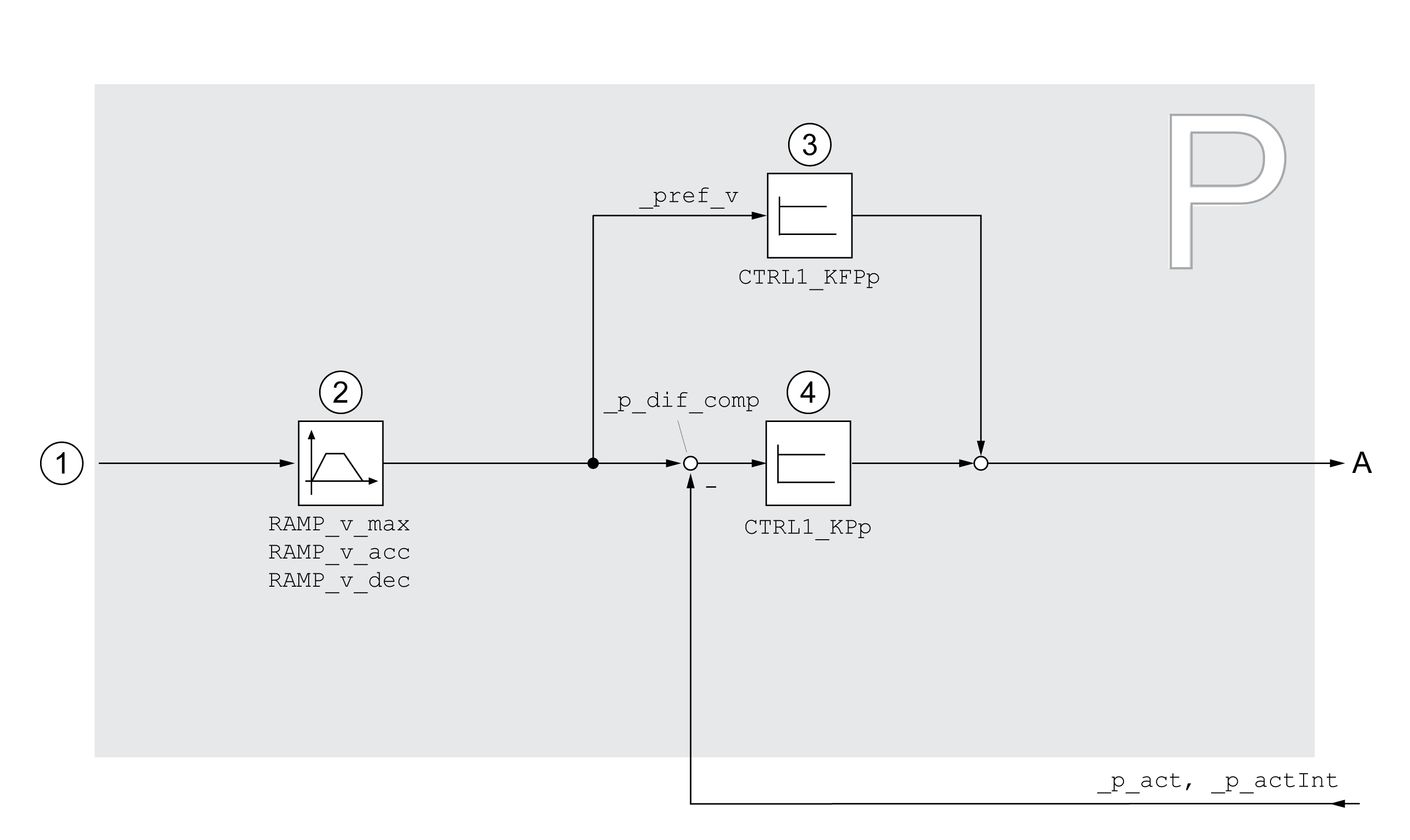

The illustration below provides an overview of the position controller.
1 Target values for the operating modes Jog and Homing
2 Motion profile for the velocity
3 Velocity feed-forward control
4 Position controller
The sampling period of the position controller is 250 µs.
