Overview of Current Controller

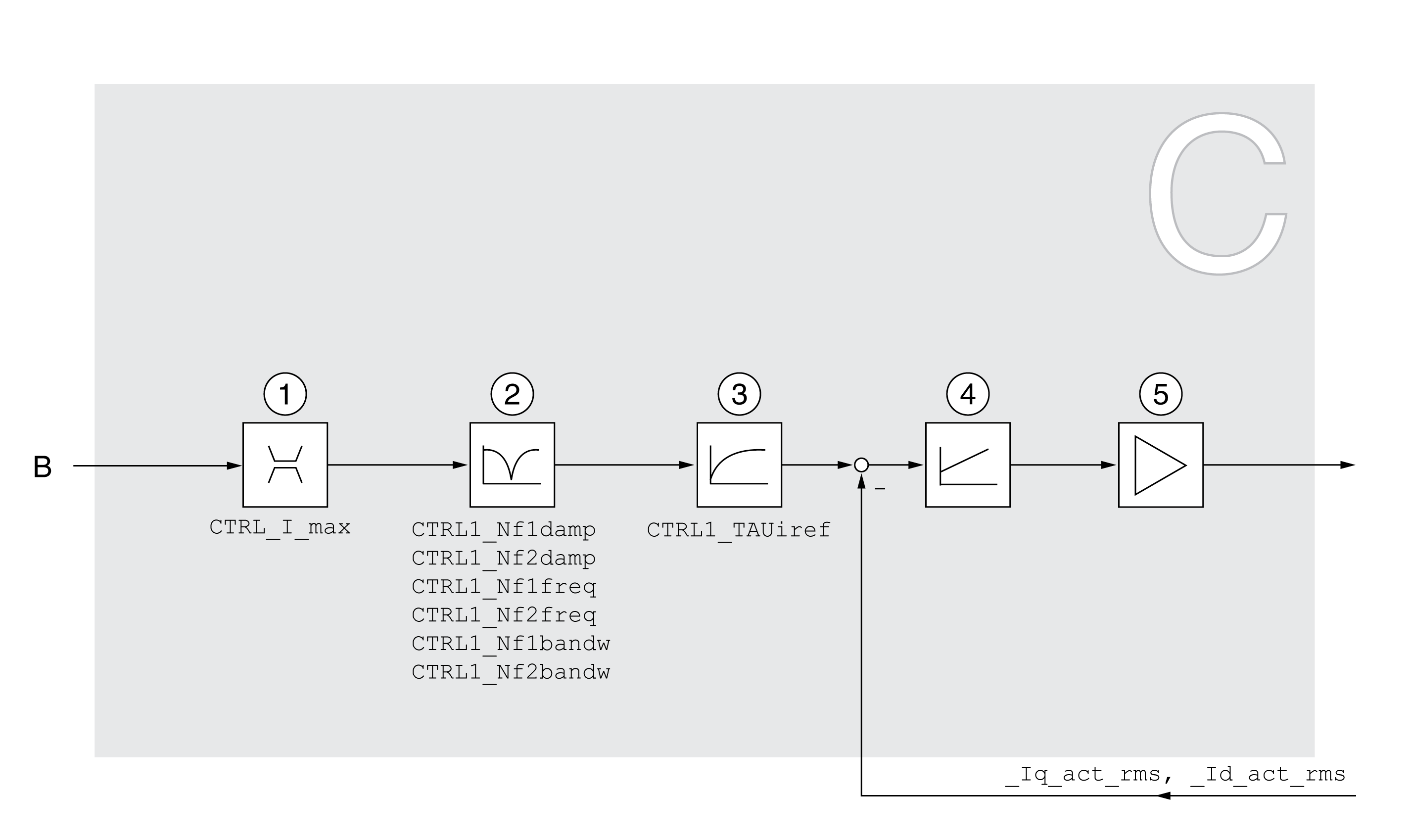

The illustration below provides an overview of the current controller.
1 Current limitation
2 Notch filter (parameter accessible in Expert mode)
3 Filter time constant of the reference current value filter
4 Current controller
5 Power stage
The sampling period of the current controller is 62.5 µs.
