Configuration of Position Scaling
Position scaling is the relationship between the number of motor revolutions and the required user-defined units (usr_p).
Position scaling is specified by means of scaling factor:

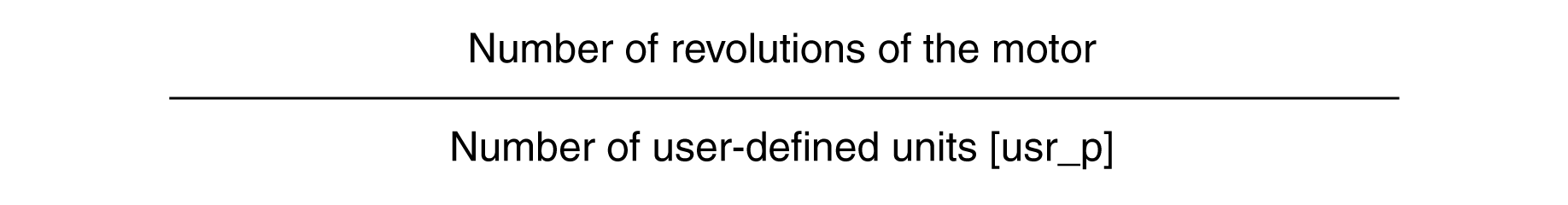

In the case of a rotary motor, the scaling factor is calculated as shown below:
The scaling factor is set to 1 / 131072 by the logic/motion controller.
