Configuration of Velocity Scaling

Description

Velocity scaling is the relationship between the number of motor revolutions per minute and the required user-defined units (usr_v).

Scaling Factor

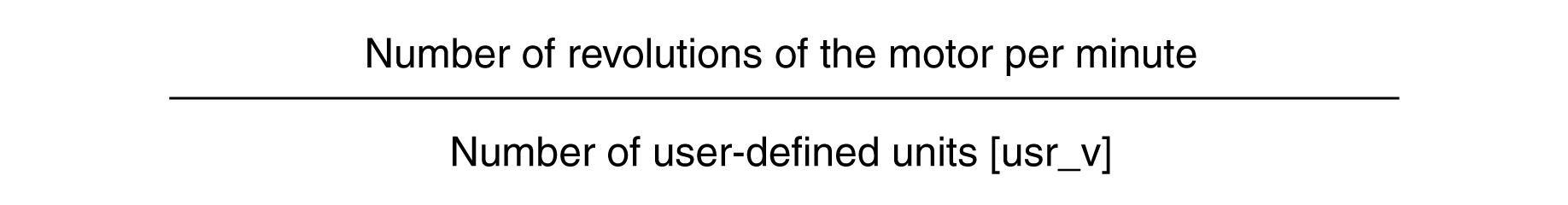

Velocity scaling is specified by means of scaling factor:

In the case of a rotary motor, the scaling factor is calculated as shown below:






Factory Setting

The following factory settings are used:

o1 motor revolution per minute corresponds to 1 user-defined unit

Parameter name

HMI menu

HMI name

Description

Unit

Minimum value

Factory setting

Maximum value

Data type

R/W

Persistent

Expert

Parameter address via fieldbus

ScaleVELnum

Velocity scaling: Numerator.

Specification of the scaling factor:



Speed of rotation of motor [RPM]

--------------------------------------------------

User-defined units [usr_v]



A new scaling is activated when the numerator value is supplied.

Type: Signed decimal - 4 bytes

Write access via Sercos: CP2, CP3, CP4

Setting can only be modified if power stage is disabled.

Modified settings become effective immediately.

RPM

1

1

2147483647

INT32

R/W

per.

-

Modbus 1604

IDN P-0-3006.0.34

ScaleVELdenom

Velocity scaling: Denominator.

See numerator (ScaleVELnum) for a description.



A new scaling is activated when the numerator value is supplied.

Type: Signed decimal - 4 bytes

Write access via Sercos: CP2, CP3, CP4

Setting can only be modified if power stage is disabled.

usr_v

1

1

2147483647

INT32

R/W

per.

-

Modbus 1602

IDN P-0-3006.0.33
