Working with Encoder Increments

Definition of Encoder Increments for Analog Encoders

For analog encoders, 1 period (line) corresponds to 4 encoder increments.

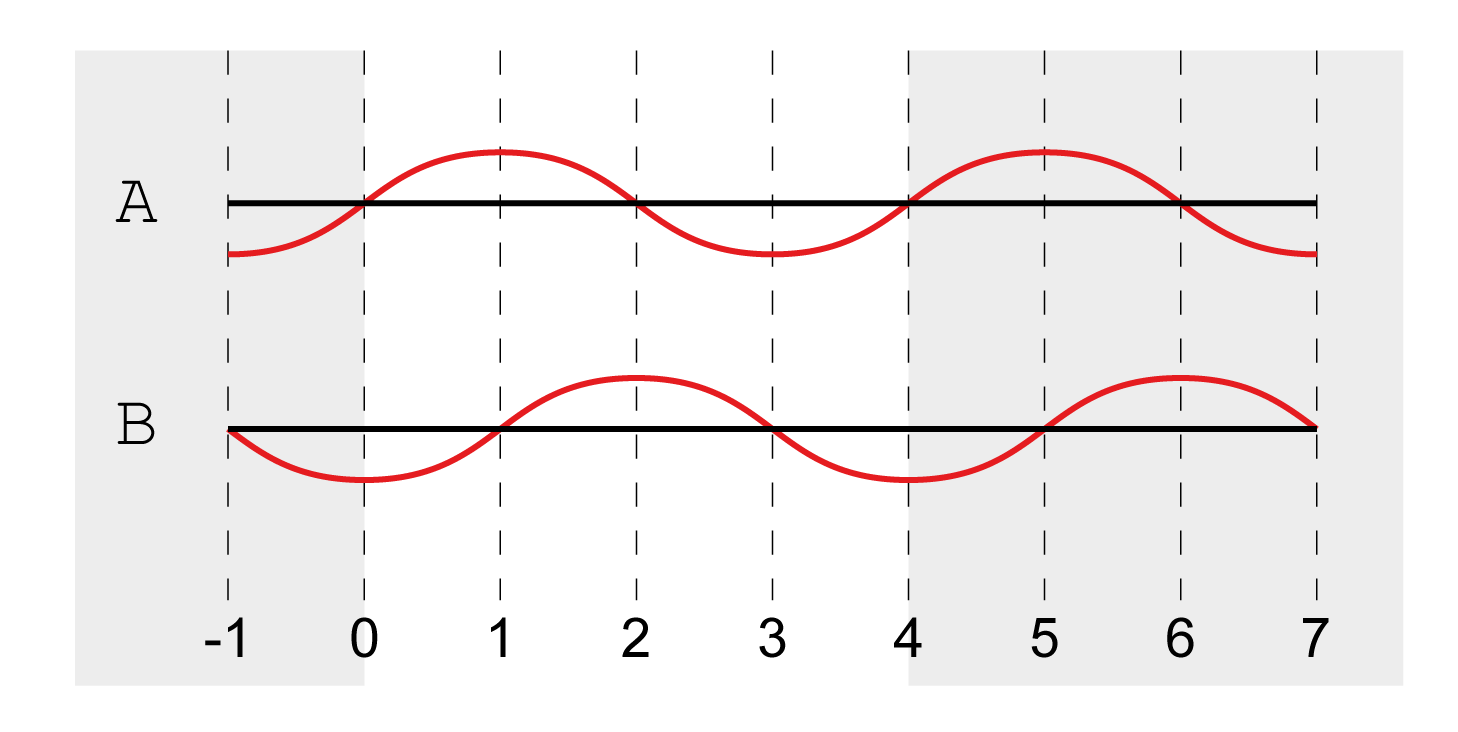

One period for analog encoders:

Definition of Encoder Increments for Digital Encoders With the Interface ABI

For digital encoders with the interface ABI, 1 period (line) corresponds to 4 encoder increments.

One period for digital encoders with the interface ABI:

Definition of Encoder Increments for Digital Encoders With the Interface EnDat 2.2, BISS or SSI

For digital encoders with the interface EnDat 2.2, BISS or SSI, bit 0 (LSB) corresponds to 1 encoder increment.
