Type:

Data structure

Available as of:

V1.0.2.0

Inherits from:

-

Versions:

Current version

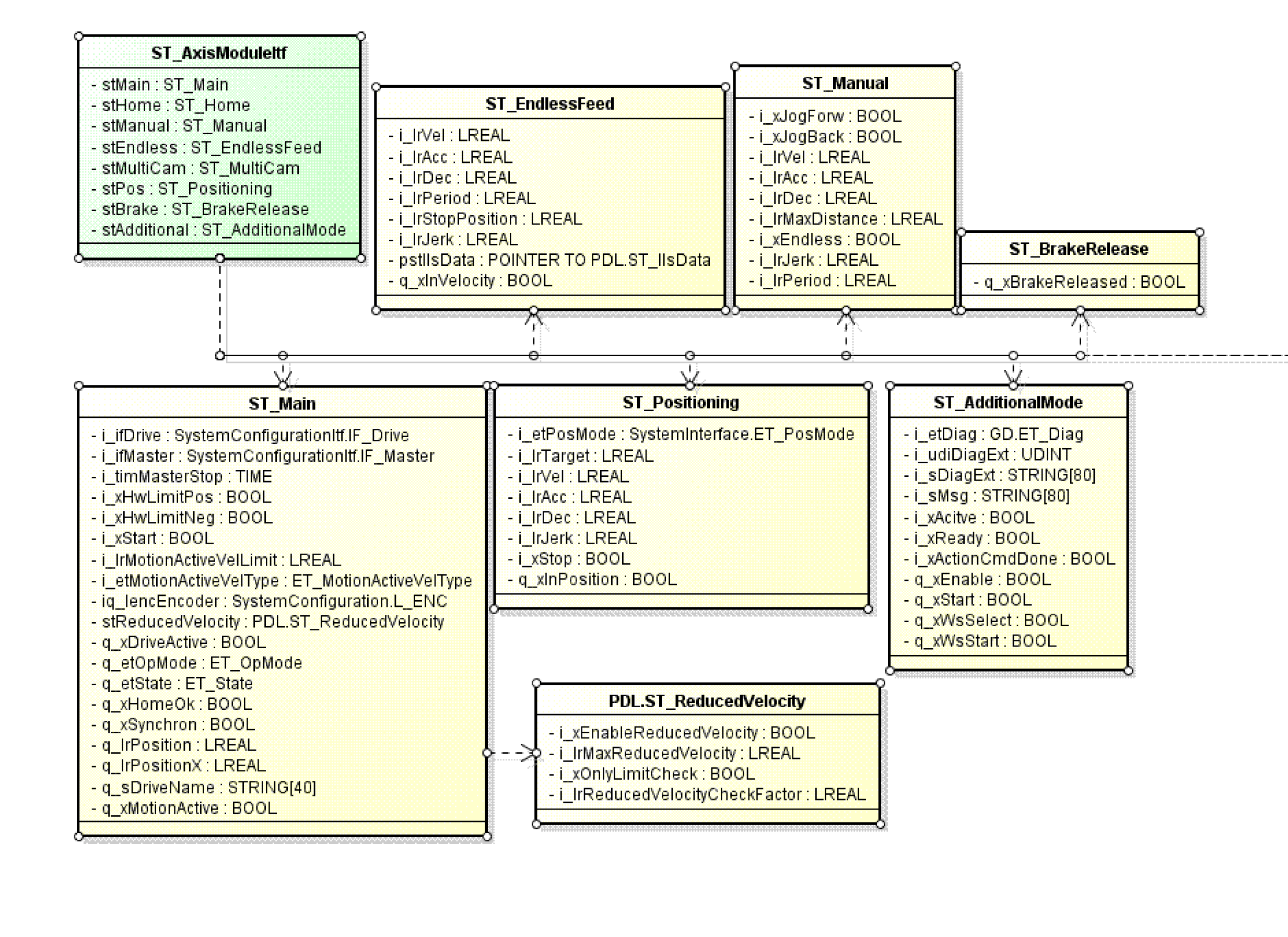

stMain

ST_Main

Cross-operation mode parameters and return values.

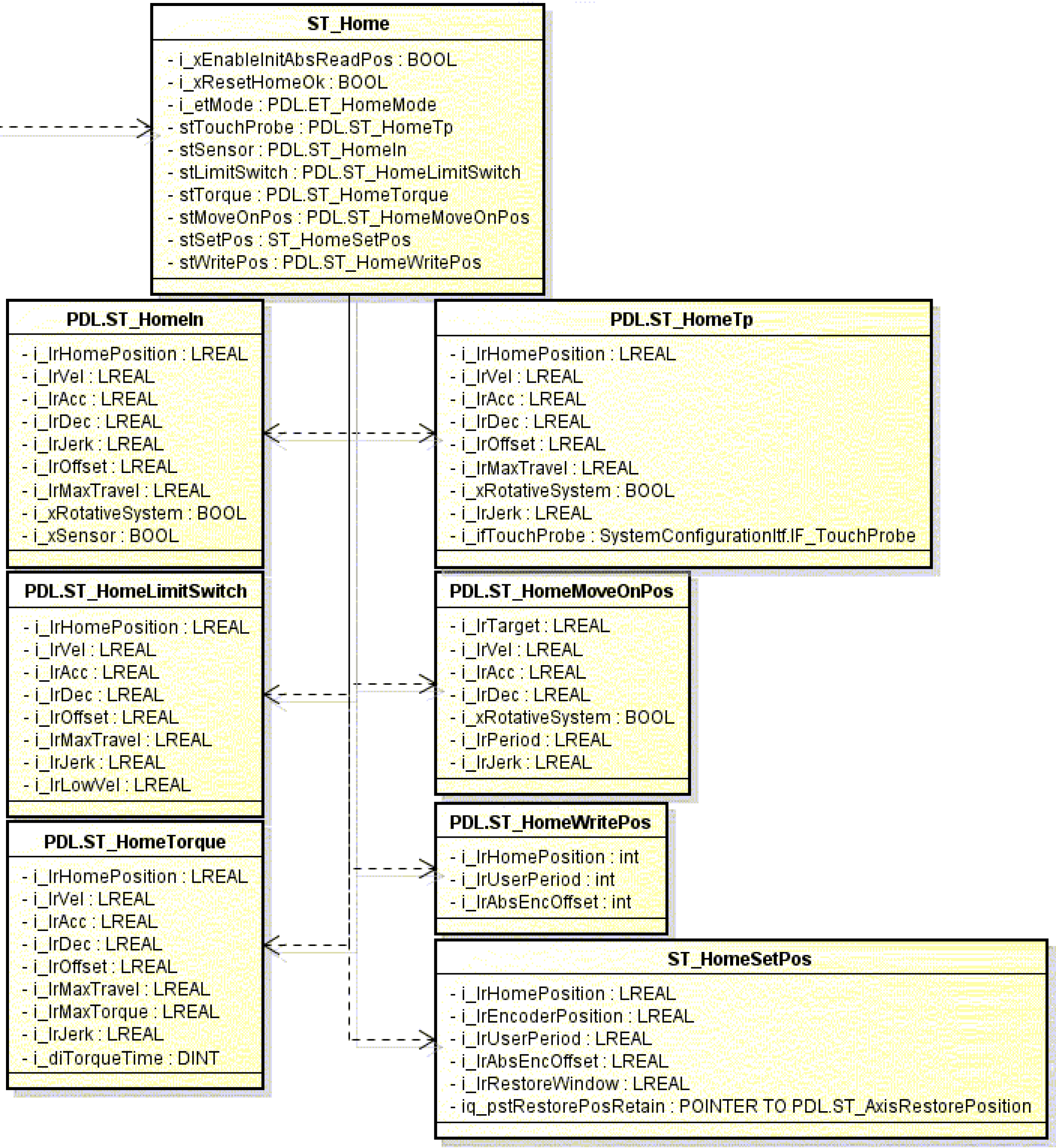

stHome

ST_Home

Parameters and return values of the operation mode Homing.

stManual

ST_Manual

Parameters and return values of the operation mode Manual.

stEndless

ST_EndlessFeed

Parameters and return values of the operation modes Endless and Endlesslls.

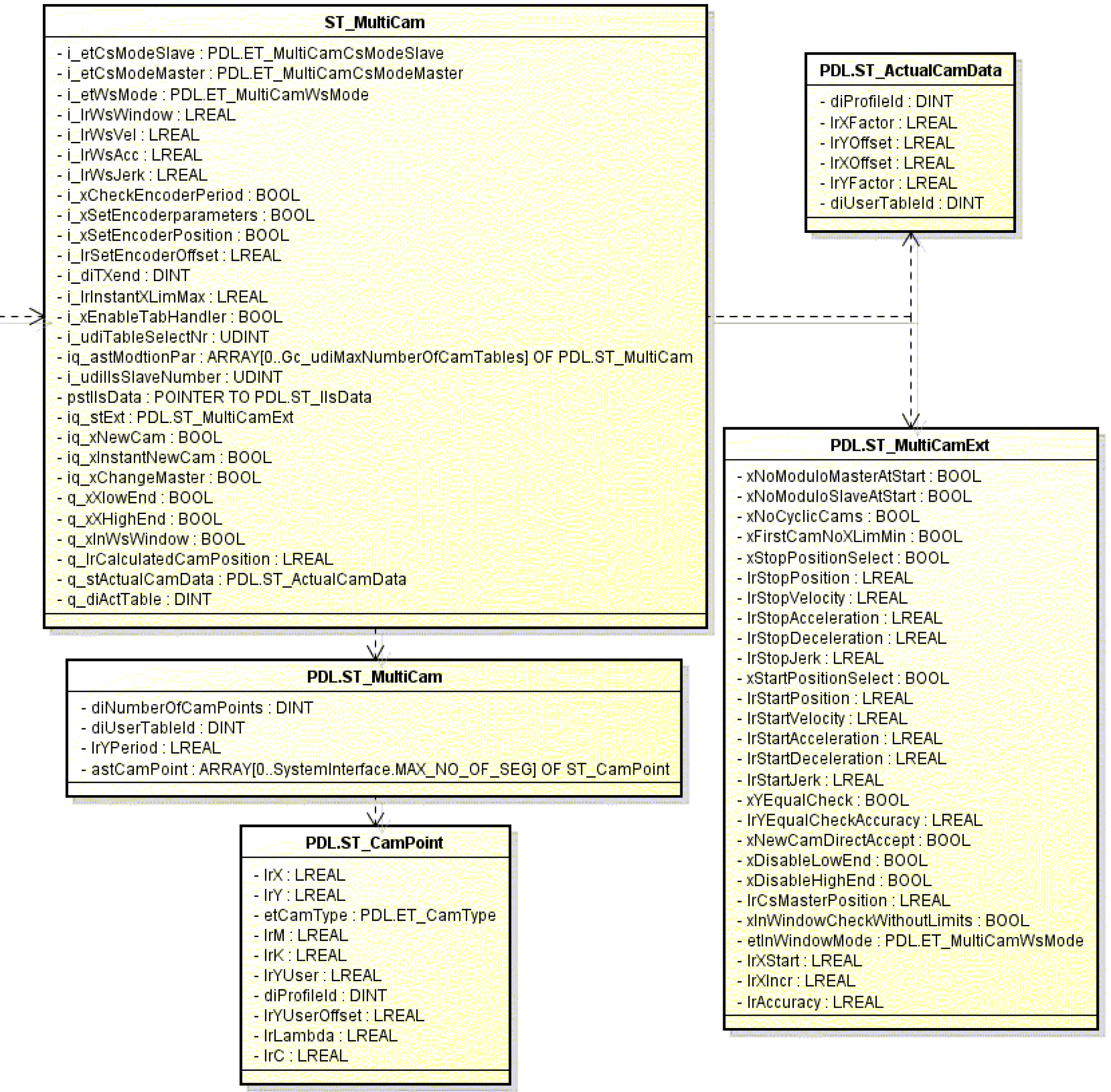

stMultiCam

ST_MultiCam

Parameters and return values of the operation mode MultiCam.

stPos

ST_Positioning

Parameters and return values of the operation mode Positioning.

stBrake

ST_BrakeRelease

Parameters and return values of the operation mode Brake.

stAdditional

ST_AdditionalMode

Parameters and return values of the operation mode Additional.
