Type: |
Data structure |
|
Available as of: |
V1.0.3.0 |
|
Inherits from: |
- |
|
Versions: |
Current version |

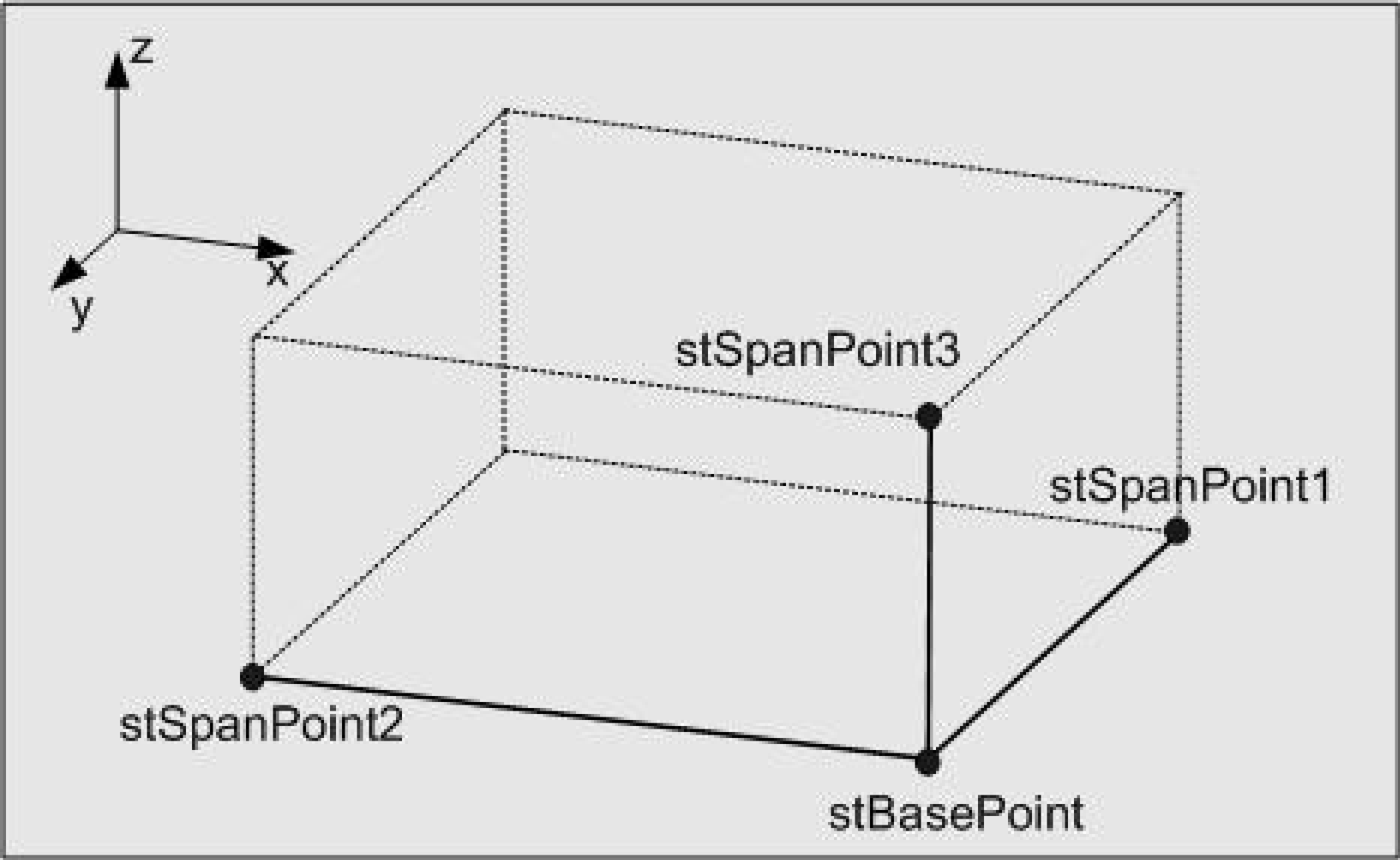

This data structure defines a cuboid in the 3-dimensional space. To this end, the position vectors of 4 points must be specified that span the cuboid. The meaning of the points is illustrated by the following diagram:
|
Variable |
Data type |
Description |
|---|---|---|
|
stBasePoint |
Common point of the edges spanning the cuboid. |
|
|
stSpanPoint1 |
Forms the first of the edges spanning the cuboid, together with stBasePoint. |
|
|
stSpanPoint2 |
Forms the second of the edges spanning the cuboid, together with stBasePoint. |
|
|
stSpanPoint3 |
Forms the third of the edges spanning the cuboid, together with stBasePoint. |
