FC_InitMachineInterface

FC_InitMachineInterface - General Information

Overview

Type:	Function
Available as of:	-
Support for:	PacDrive pilot template architecture

Task

Initializes the parts of the interface of the MainMachine.

Description

This function is used to setup a software module to act as a machine layer. The typical use is to setup a module to act as the “machine” to provide overall control of the machine.

The user may only change the values on the inputs i_xEnable, i_xLogEnable, i_wLogDataFilter and i_wExceptionLogDataFilter.

The machine is activated via the i_xEnable input, which activates important POUs of the machine layer such as axis modules, axis module controllers, and module controllers.

This function automatically assigns a unique module ID to the axes contained in the machine module.

How to create the module ID of an axis can be read in the chapter "Identification and labeling of modules".

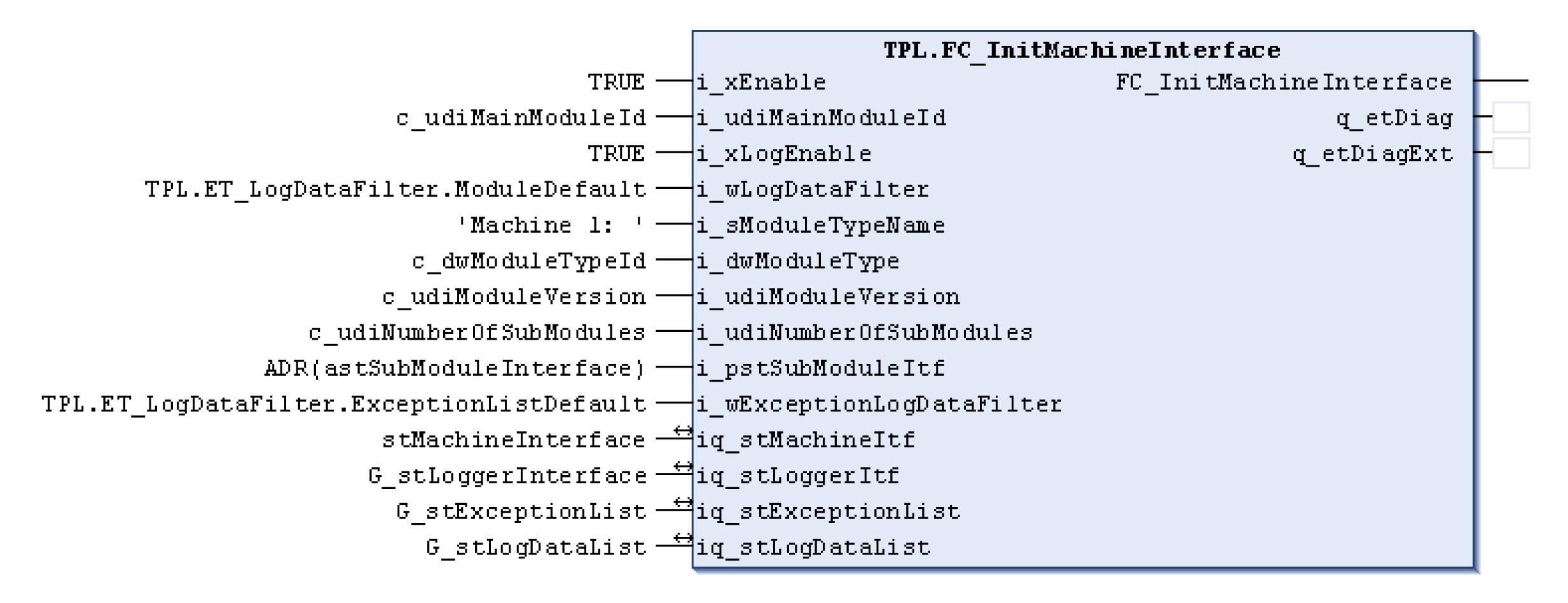

The wiring of the inputs can be seen in the following figure. Also for the above mentioned inputs that can be changed, it is strongly recommended to use the suggested default values.

Interface

Input	Data type	Description
i_xEnable	BOOL	Activates the module.
i_udiMainModuleId	UDINT	Unique number used to identify the module The module ID identifier can be used to filter the global detected error list and/or the global logger list. The main machine must be given the Id 1.
i_xLogEnable	BOOL	Enables the logging function.
i_wLogDataFilter	WORD	Specifies the events to be recorded.
i_sModuleTypeName	STRING[80]	Specifies a name the module is identified with.
i_dwModuleType	DWORD	Unique number to identify the type of module
i_udiModuleVersion	UDINT	Specifies the software version of the module type
i_udiNumberOfSubModules	UDINT	Specifies the quantity of sub-modules contained by this module
i_pstSubModuleItf	POINTER TO ST_StandardModuleInterface	A pointer to the default module interface of the submodules.
i_wExceptionLogDataFilter	WORD	Log filter for the exception handling (actions on the exception list)

Output	Data type	Description
q_etDiag	GD.ET_Diag	General, library-independent statement on the diagnostic. A value unequal to GD.ET_Diag.Ok corresponds to a diagnostic message.
q_etDiagExt	ET_DiagExt	POU-specific output on the diagnostic. q_etDiag = GD.ET_Diag.Ok -> status message q_etDiag <> GD.ET_Diag.Ok -> diagnostic message

Output

Data type

Description

q_etDiag

GD.ET_Diag

General, library-independent statement on the diagnostic.

A value unequal to GD.ET_Diag.Ok corresponds to a diagnostic message.

q_etDiagExt

ET_DiagExt

POU-specific output on the diagnostic.

q_etDiag = GD.ET_Diag.Ok -> status message

q_etDiag <> GD.ET_Diag.Ok -> diagnostic message

Input/Output	Data type	Description
iq_stMachineItf	ST_StandardModuleInterface	Specifies the default module interface
iq_stExceptionList	ST_ExceptionList	Global exception list
iq_stLogDataList	ST_LogDataList	Specifies the global logging list.
iq_stLoggerItf	ST_LoggerInterface	Data structure to control displaying and saving the logger.

Return Value

Data type	Description
BOOL

Diagnostic Messages

q_etDiag	q_etDiagExt	Enumeration value	Description
OK	Ok	0	Ok

Enumeration name:	Ok
Enumeration value:	0
Description:	Ok
