OPC UA Server Configuration

Contents of This Topic

This topic contains the following subtopics:

Introduction

In the Logic Builder > Devices tree, double-click the controller to open the OPC UA server configuration tab of the controller.

The OPC UA server configuration tab provides various functionalities to edit the server configuration file ServerConfig.ini on the CompactFlash^TM card of the controller.

The ServerConfig.ini is saved as ide0:\ESystem\opcua\ServerConfig.ini on the CompactFlash^TM card.

The OPC UA server configuration tab allows you to:

oDefine default properties for new server certificates

oView and delete existing server certificates

oView and add sampling rates

oImport and export server certificates

oEnable security and manage various security settings

General Settings Tab

OPC UA server configuration, General settings tab

General Settings Tab, Toolbar

Element	Description
	Opens a standard Windows dialog (Save as) to export the server configuration file as an .ini file.
	The server settings are loaded and refreshed. NOTE: Comments in loaded configuration files are removed if changes in the server settings are saved.
	opens a standard Window dialog (Open) to import a server configuration file (*.ini).

Element

Description

Opens a standard Windows dialog (Save as) to export the server configuration file as an .ini file.

The server settings are loaded and refreshed.

NOTE: Comments in loaded configuration files are removed if changes in the server settings are saved.

opens a standard Window dialog (Open) to import a server configuration file (*.ini).

Default Properties for New Server Certificate

In this section you can define the default properties for a new OPC UA server certificate:

Element	Description
Country	Country code consisting of two letters that indicates the country in which the OPC UA server is operated.
Locality	Name of the city from where the OPC UA server is operated.
Organization	Name of the organization that uses the OPC UA server.
Organization unit	Name of the organization unit that uses the OPC UA server.

NOTE: When generating a new server certificate the date, from which the certificate is valid, is registered in the certificate. This date is registered in UTC (Coordinated Universal Time).

When the client tries to establish a connection to the server and the system (client and server) is not located in this UTC time zone, an error may occur and the connection build-up is canceled. In this case the connection to the server is only possible after a certain period of time. This period of time is equal to the time difference (in hours) between the local standard time and UTC.

Example:

Location of the system: Germany

Standard time of Germany: CET (Central European Time) = UTC + 1 hour

Difference between CET and UTC: 1 hour

=> The connection build-up between the client and the server can only be established one hour after the generation of the new server certificate.

Existing Server Certificate Properties

If the selected controller already provides a server certificate, the properties of this certificate are displayed in the fields of this section.

Element	Description
Country	Country code consisting of two letters that indicates the country in which the OPC UA server is operated.
Locality	Name of the city from where the OPC UA server is operated.
Organization	Name of the OPC UA server
Organization unit	Name of the organization unit that provides the OPC UA server.
[Delete existing certificate] button	Deletes the existing server certificate of the selected controller.

Security Settings

In this section you can change the security aspect of the OPC UA server:

Element	Description
Disable anonymous login	If this option is activated an anonymous connection to the controller is not possible. Only a login with a user name and password is allowed. The user name and password is transferred in the FC_OpcUaStart function ("User name", "Password"). Default setting: Disabled.
Only allow secure sessions	If this option is activated the server only enables an encryption for the login and the data exchange. If this option is not set, the server still offers the encryptions but provides an unencrypted data exchange also. Default setting: Disabled.

Element

Description

Disable anonymous login

If this option is activated an anonymous connection to the controller is not possible. Only a login with a user name and password is allowed.

The user name and password is transferred in the FC_OpcUaStart function ("User name", "Password").

Default setting: Disabled.

Only allow secure sessions

If this option is activated the server only enables an encryption for the login and the data exchange.

If this option is not set, the server still offers the encryptions but provides an unencrypted data exchange also.

Default setting: Disabled.

Sample Rates in ms

The sample rate indicates a time interval in milliseconds. When an interval has passed, the server sends the requested data to the client.

Element	Description
	Adds a new sample rate to the sample rate list. It is not allowed to add more than 20 sample rates. If an entered sample rate is invalid, a corresponding message prompt is displayed. The sample rate values must be at least 1 and they are restricted to 60000.
	Deletes the selected sample rate.
Sample rate list	Displays all available sampling rates. By default, the sampling rates are set to values from 5 to 10000. Double-click a value in the list to modify it.

Element

Description

Adds a new sample rate to the sample rate list.

It is not allowed to add more than 20 sample rates.

If an entered sample rate is invalid, a corresponding message prompt is displayed.

The sample rate values must be at least 1 and they are restricted to 60000.

Deletes the selected sample rate.

Sample rate list

Displays all available sampling rates.

By default, the sampling rates are set to values from 5 to 10000. Double-click a value in the list to modify it.

Buttons

Element	Description
[Apply changes] button	Saves the changes you made on this tab to the configuration file Serverconfig.ini and concerns the general settings. The Apply changes button is only activated if the general settings are valid. A restart of the controller is necessary to take over the settings.

Element

Description

[Apply changes] button

Saves the changes you made on this tab to the configuration file Serverconfig.ini and concerns the general settings.

The Apply changes button is only activated if the general settings are valid.

A restart of the controller is necessary to take over the settings.

OP UA Task Cycle Times and Priorities

The following table shows the priorities of the OPC UA monitoring task.

Default configuration

oEleven pre-configured scan times

o5 ms, 10 ms, ..., 10 s

oDedicated monitoring tasks for each scan time

oNo CPU load for unused scan times

Expert mode

oIndividual scan time configuration via ini file is possible

Detailed Function

oCyclic reading of monitoring items

oCheck for modifications

oSend modified items

oManage project changes and OLC

oSet the items to “non-operational node - id unknown” before download OLC

oAfter download and OLC

oRegisters items automatically

oAvailable items are set to “good”

oUnavailable items are marked as “non-operational node - id unknown”

Priority and cycle times

Task name	Cycle time	Priority
TaskOpcUaAsyncJob5 ms	5 ms	IEC15 (235)
TaskOpcUaAsyncJob10 ms	10 ms	IEC15 (235)
TaskOpcUaAsyncJob25ms	25 ms	IEC15 (235)
TaskOpcUaAsyncJob50ms	50 ms	IEC31 (251)
TaskOpcUaAsyncJob100ms	100 ms	IEC31 (251)
TaskOpcUaAsyncJob250ms	250 ms	IEC31 (251)
TaskOpcUaAsyncJob500ms	500 ms	IEC31+1 (252)
TaskOpcUaAsyncJob1000ms	1 s	IEC31+1 (252)
TaskOpcUaAsyncJob2000ms	2 s	IEC31+1 (252)
TaskOpcUaAsyncJob5000ms	5 s	IEC31+1 (252)
TaskOpcUaAsyncJob10000ms	10 s	IEC31+1 (252)

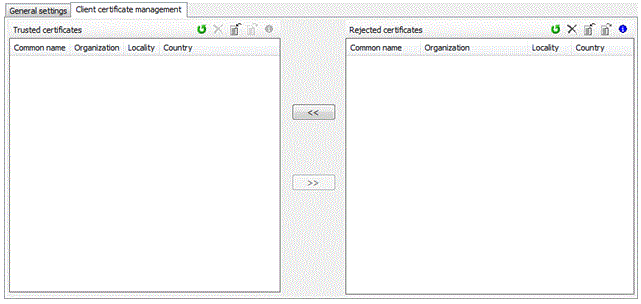

Client Certificate Management Tab

This tab allows you to determine which client certificates are trusted and which clients are allowed to communicate with the server.

Client Certificate Management Tab, Toolbar

Element	Description
	Both certificate lists are loaded or refreshed.
	Deletes the selected certificates.
	Opens a standard Windows dialog (Open) to import a certificate that is uploaded to the selected certificate list (trusted certificates list or rejected certificates list).
	Opens a standard Windows dialog (Save as) to export the selected certificates to a selectable path.

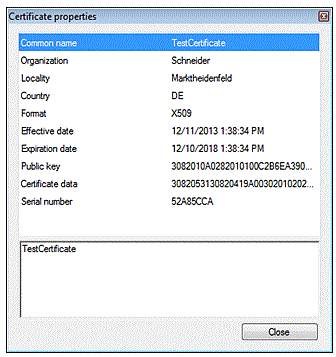

	Opens a dialog containing additional information on the selected certificate.

Trusted Certificates List and Rejected Certificates List

A certificate contains common information about the company that owns the certificate, how long a certificate is valid, and so on. The certificate management provides two list views that display the content of the availably trusted and rejected certificates.

Element	Description
Trusted certificates	This list includes the client certificates the server trusts.
Rejected certificated	This list includes the client certificates the server does not trust.
	Use the << and >> buttons to move a rejected certificate to the Trusted certificates list or the opposite way. During the moving procedure, a progress bar appears and displays the remaining files. See also Enabling Security.

Element

Description

Trusted certificates

This list includes the client certificates the server trusts.

Rejected certificated

This list includes the client certificates the server does not trust.

Use the << and >> buttons to move a rejected certificate to the Trusted certificates list or the opposite way.

During the moving procedure, a progress bar appears and displays the remaining files.
