Diagnostic Scheme

General

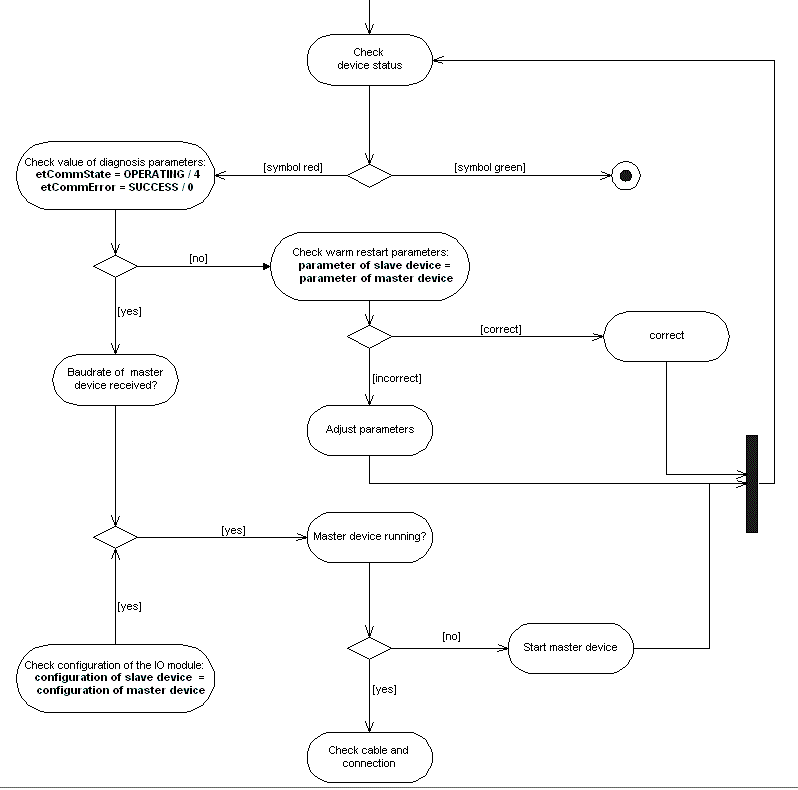

For diagnostic of the PROFIBUS DPV1 slave, the Diagnostic parameters in the generic editor (device dialog) can be used. The following diagnostic scheme is an example for a possible debugging procedure.

Diagnostic scheme
