This section represents the ports which are used for connecting C2C Master, Sercos Master, and C2C Slave.

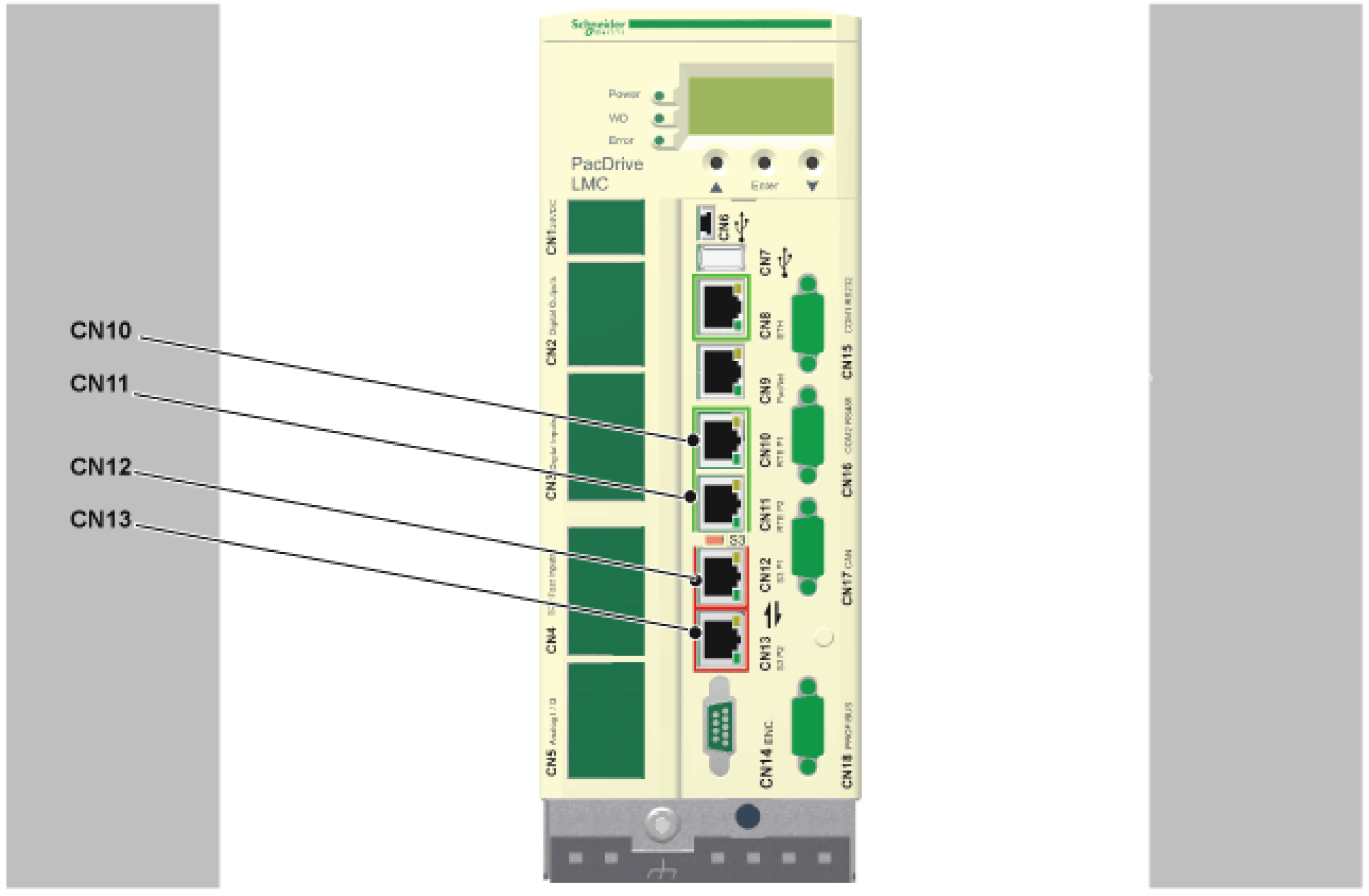

Ports used for C2C Master and C2C Slave
|
Connector |
Connector description |
LMC Pro acting as C2C Slave |
LMC Pro acting as C2C Master |
|---|---|---|---|
|
CN10 |
Real-time Ethernet, port 1 |
Connect C2C Slave to superordinate network, as Sercos Slave |
-- |
|
CN11 |
Real-time Ethernet, port 2 |
Connect C2C Slave to superordinate network, as Sercos Slave |
-- |
|
CN12 |
Sercos Master, port1 |
Connect C2C Slave to sub-network, as Sercos Master |
Connect C2C Master to superordinate network, as Sercos Master |
|
CN13 |
Sercos Master, port2 |
Connect C2C Slave to sub-network, as Sercos Master |
Connect C2C Master to superordinate network, as Sercos Master |

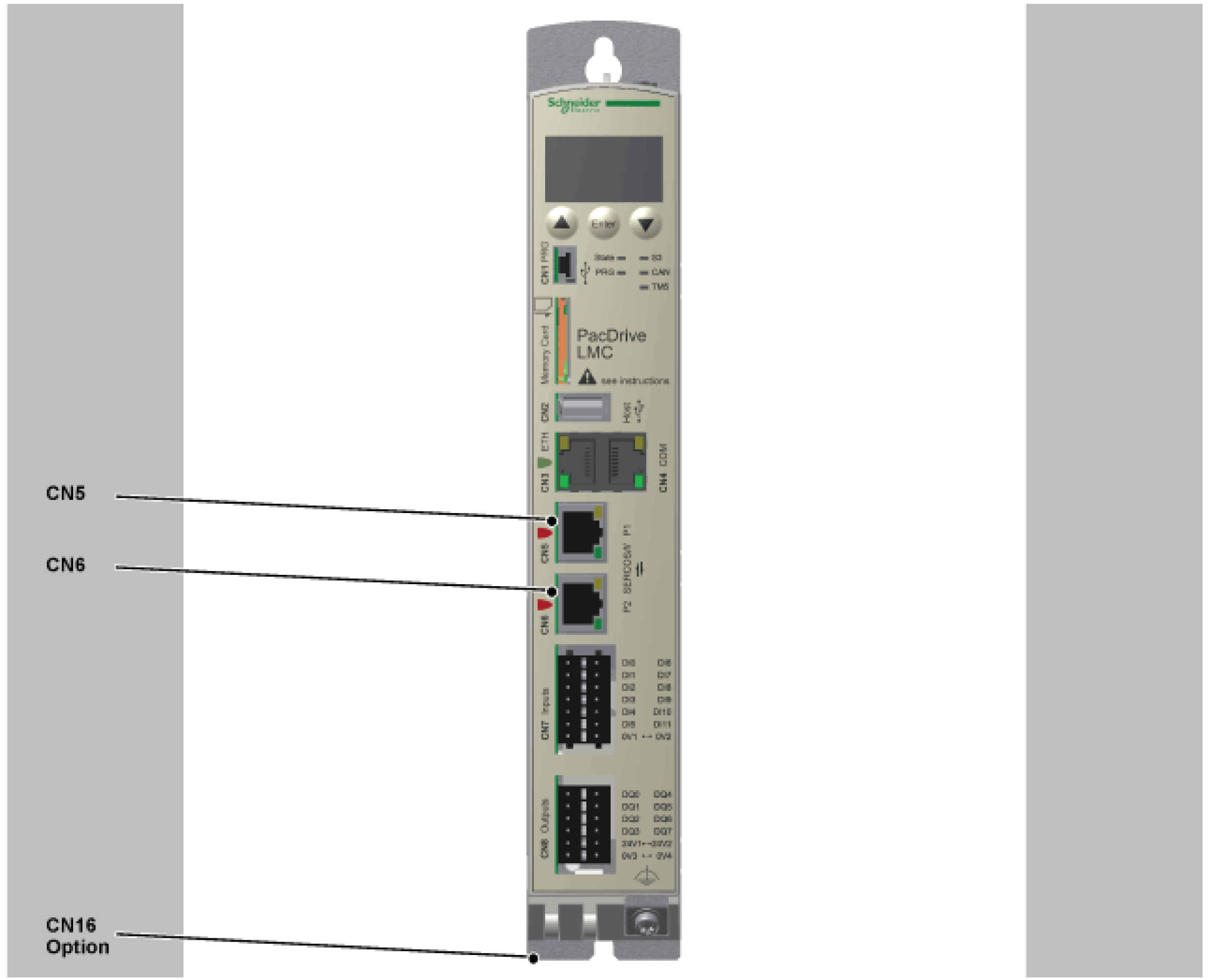

Ports used for C2C Master and C2C Slave
|
Connector |
Connector description |
LMC Pro acting as C2C Slave |
LMC Pro acting as C2C Master |
|---|---|---|---|
|
CN5 |
Sercos Master, port 1 |
Connect C2C Slave to sub-network, as Sercos Master |
Connect C2C Master to superordinate network, as Sercos Master |
|
CN6 |
Sercos Master, port 2 |
Connect C2C Slave to sub-network, as Sercos Master |
Connect C2C Slave to superordinate network, as Sercos Slave |
|
CN16 Option |
Slot for optional communication module |
Connect VW3E704100000 (Communication Module Realtime Ethernet) |
-- |
Communication Module Realtime Ethernet

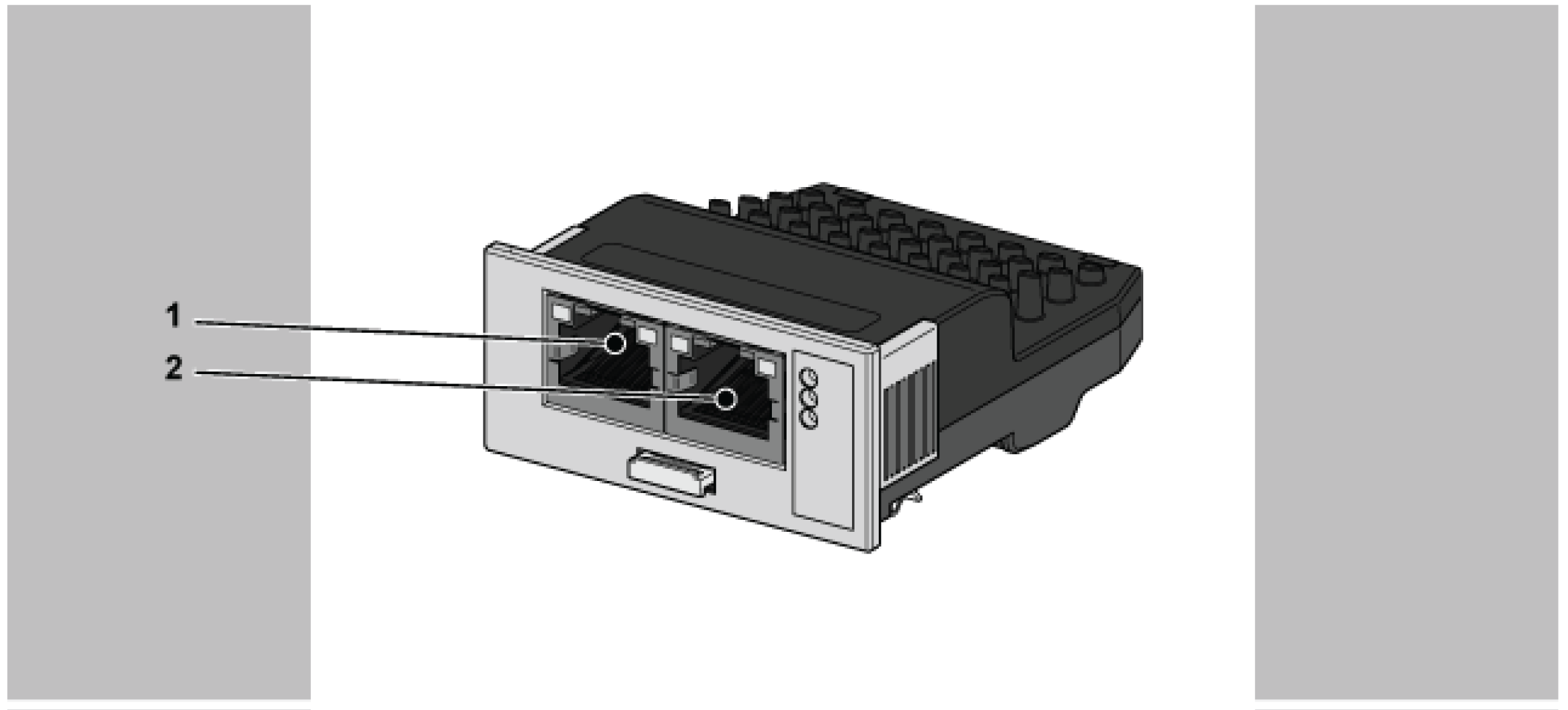

Ports used for C2C Slave
|
Connector |
Connector description |
VW3E704100000, on LMC Eco used as C2C Slave |
VW3E704100000, on LMC Eco used as C2C Master |
|---|---|---|---|
|
1 |
Real-time Ethernet |
Connect C2C Slave to superordinate network, as Sercos Slave |
-- |
|
2 |
Real-time Ethernet |
Connect C2C Slave to superordinate network, as Sercos Slave |
-- |
