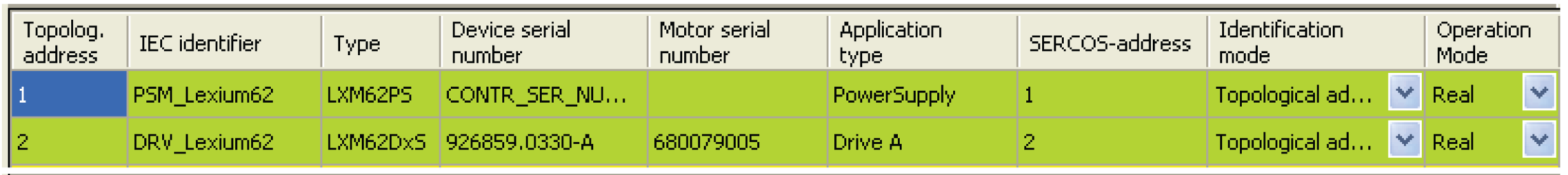

The left part of the editor displays the PLC configuration parameters required for commissioning. Each row represents a Sercos object in the Logic Builder PLC Configuration. The current values of the object are displayed.
Logic Builder, Axes in the PLC Configuration
The original parameter name is displayed in brackets in the tooltip shown when you move the cursor over a column header.
You can change the values in this editor (Device Addressing)as well as in the editor pertaining to a specific object (under Identifcation).

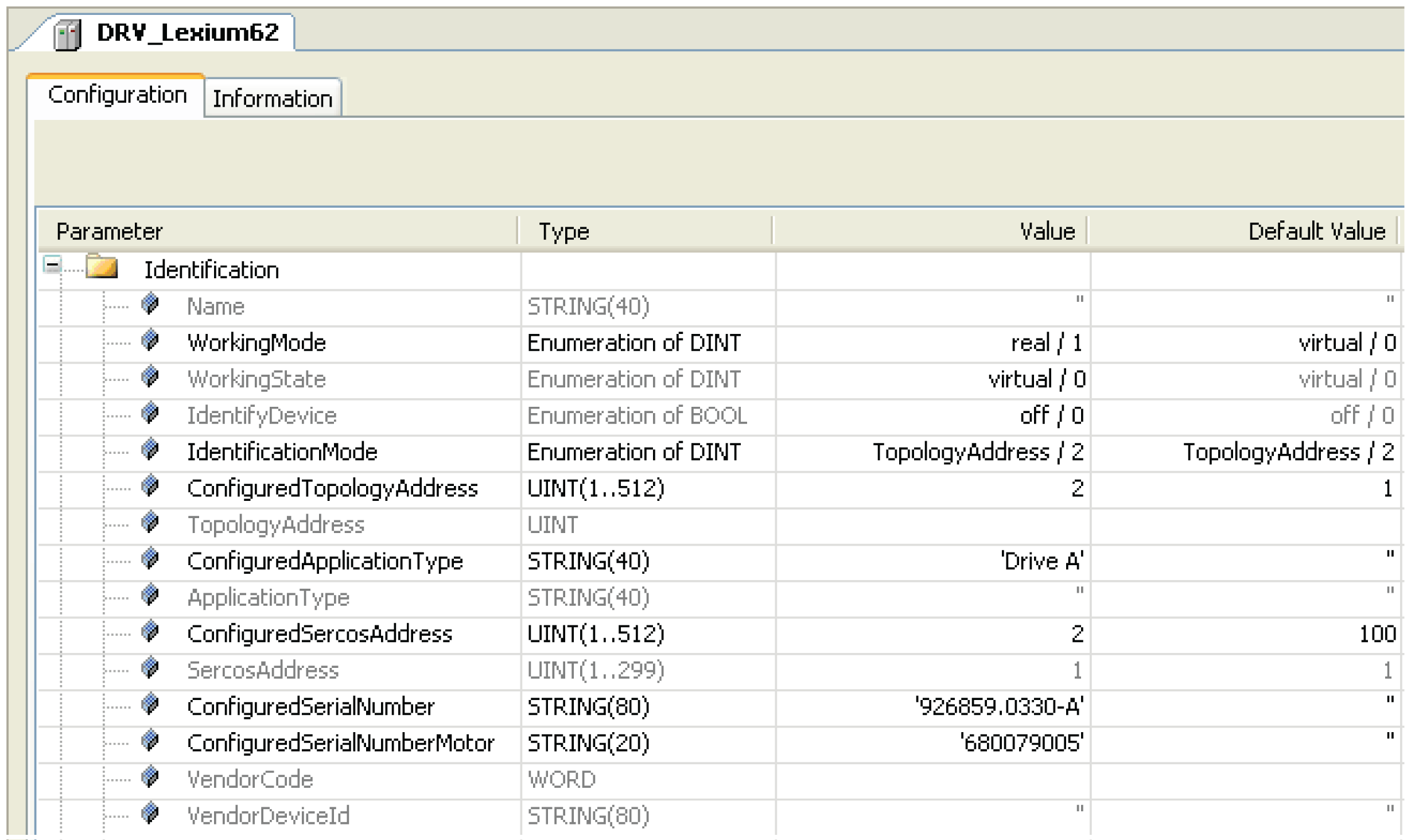

Logic Builder, Configuration (Identification)
If the Sercos objects are assigned automatically, they are listed in the order of their topological address, starting with the lowest value. If Sercos objects from a previous scan are already listed, any further Sercos objects are added at the end of the list, in the order of the topological address, starting with the lowest value.
