SysTimeRtcHighResGet

EcoStruxure Machine Expert version 1.1 does not support the M258, LMC058 and LMC078 controllers.

Function Description

This function is used to read the value of the real time clock (RTC) of the controller. The RTC is provided as high resolution time stamp which indicates the number of milliseconds since January 1st, 1970 00:00:00:000.

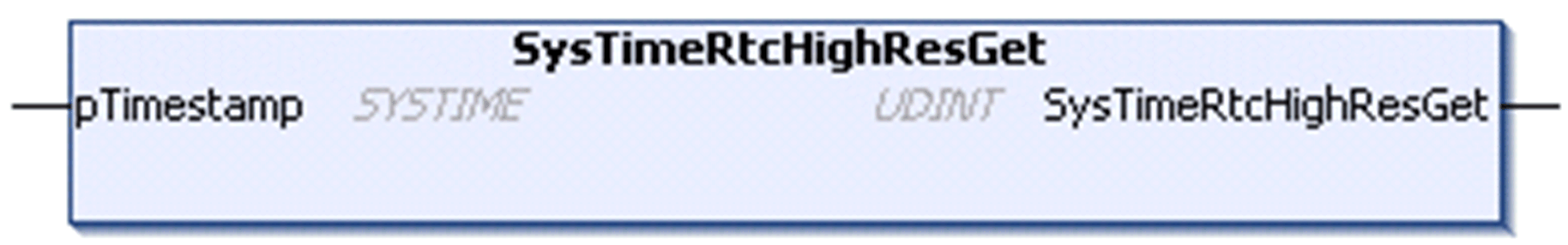

Graphical Representation

I/O Variables Description

Input/Output	Type	Description
pTimestamp	SYSTIME	Time in milliseconds since January 1st, 1970 00:00:00:000

Output	Type	Description
SysTimeRtcHighResGet	UDINT	Runtime system error code (refer to CmpErrors.library): 0 = no error detected

Output

Type

Description

SysTimeRtcHighResGet

UDINT

Runtime system error code (refer to CmpErrors.library):

0 = no error detected

NOTE: SYSTIME is an alias type based on the data type ULINT.
