System Architecture

Introduction

The HMISCU system is a compact control system with the HMI and I/O embedded. The HMISCU system offers an all-in-one solution for an optimized configuration and an expandable architecture.

Architecture Example

The following figure provides an example of the HMISCU hardware environment:





HMISCU System Architecture

Optimized configuration and flexibility is provided by the association of:

orear module that provides the logic and HMI functions

ofront module that provides the display feature

odisplay module/rear module separation cable allows you to separate the display module from the rear module

Application requirements determine the architecture of your HMISCU system:

ohigh speed counter (HSC) inputs

opulse width modulation (PWM) outputs

opulse train output (PTO) outputs

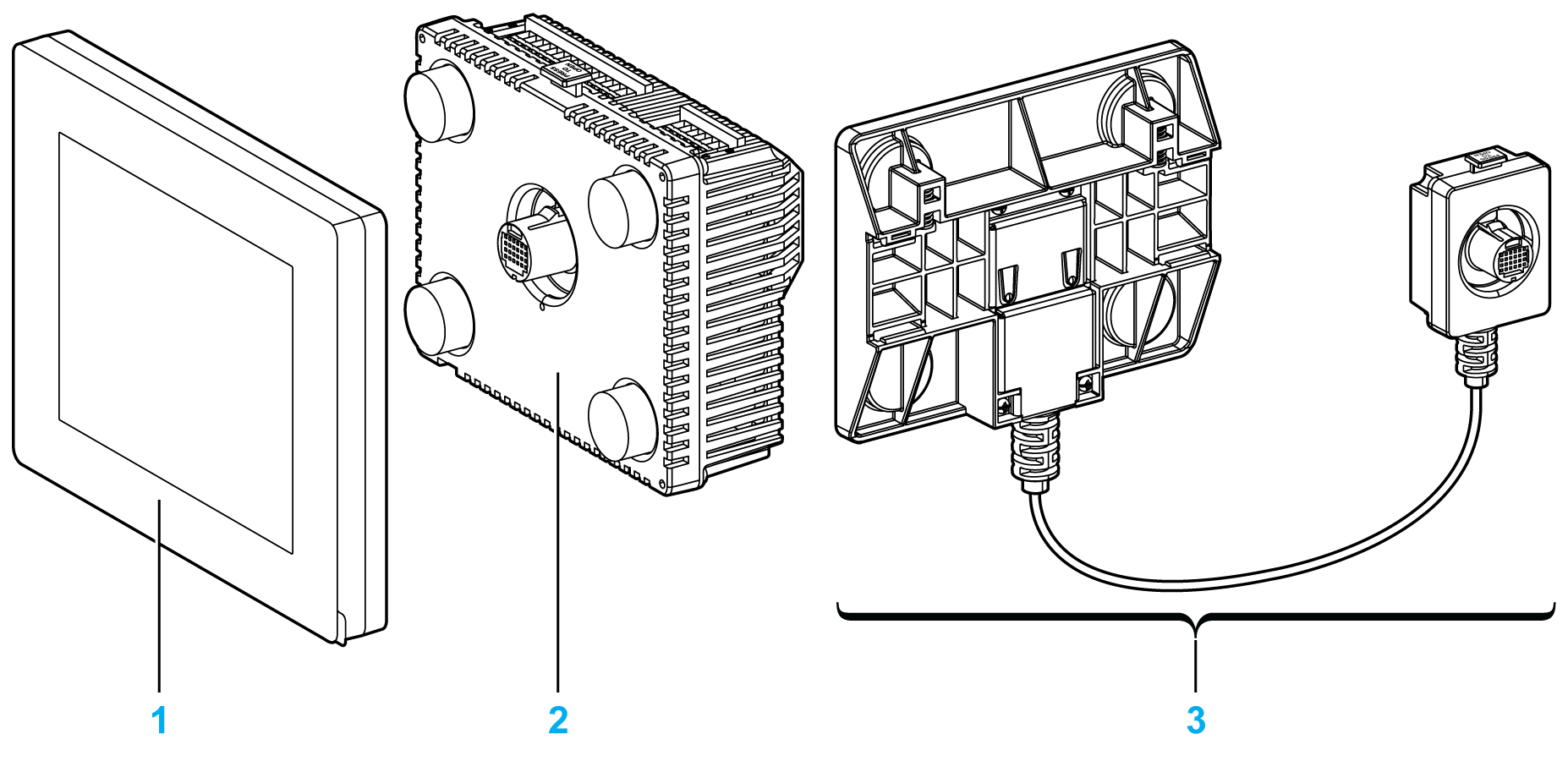

The figure shows the components of the HMISCU system:



1    Display module

2    Rear module

3    Display module/rear module separation cable
