You can mount the controller and its expansion parts on a DIN rail. A DIN rail can be attached to a smooth mounting surface or suspended from a EIA rack or a NEMA cabinet.

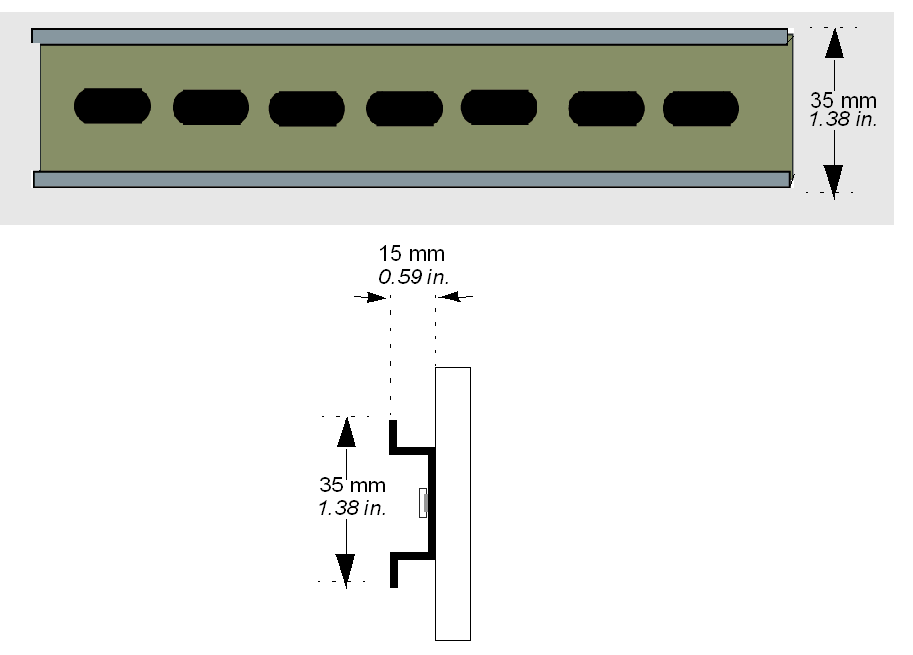

The DIN rail measures 35 mm (1.38 in.) high and 15 mm (0.59 in.) deep, as shown below:
|
Rail Depth |
Catalog Reference Number |
|---|---|
|
15 mm (0.59 in.) |
AM1DE200 |
|
AM1ED200 |
|
|
8 mm (0.31 in.) |
AM1DP200 |
