Internal Circuits

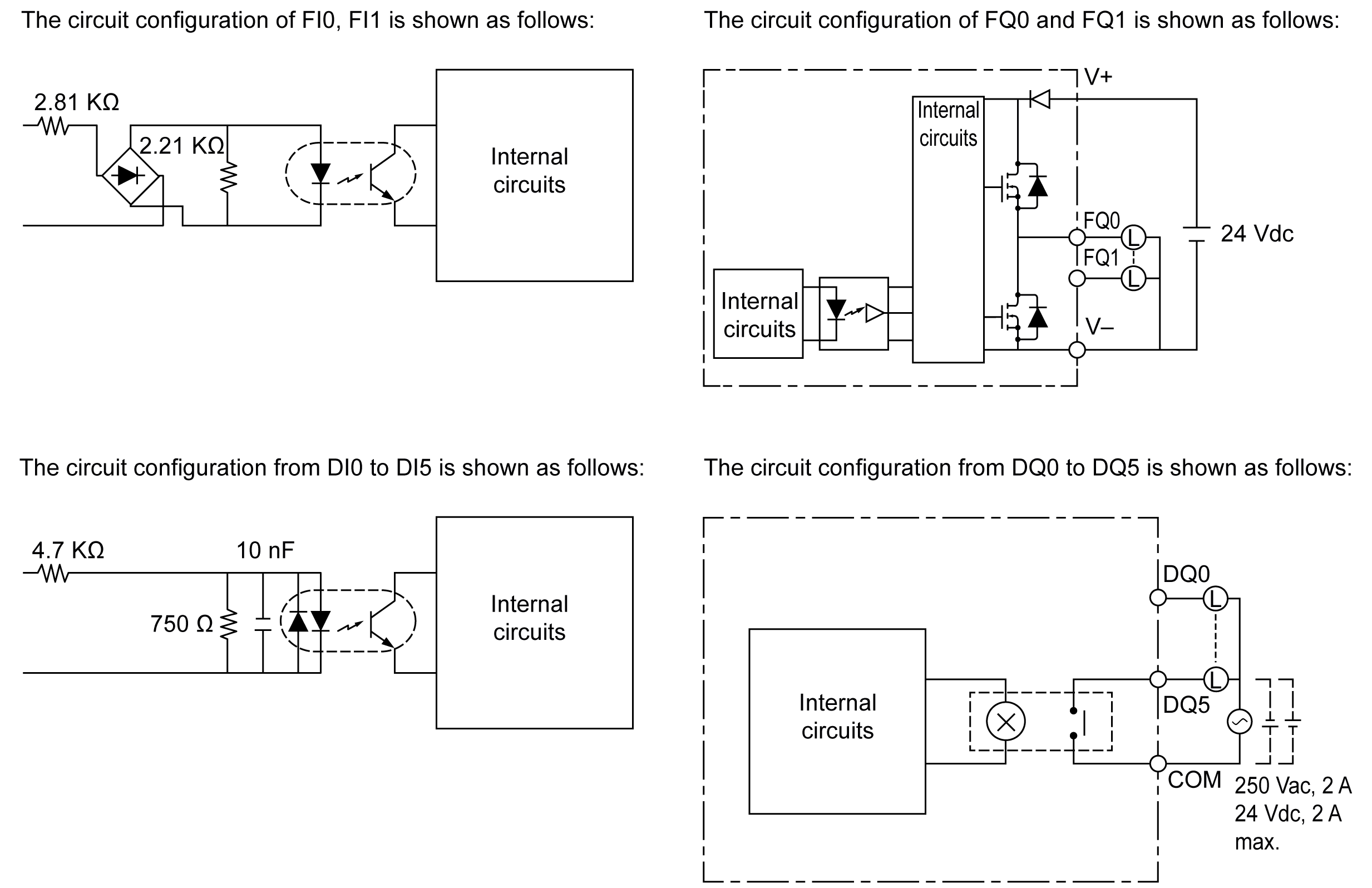

HMISCU•A5 (type DIO) Internal Circuit

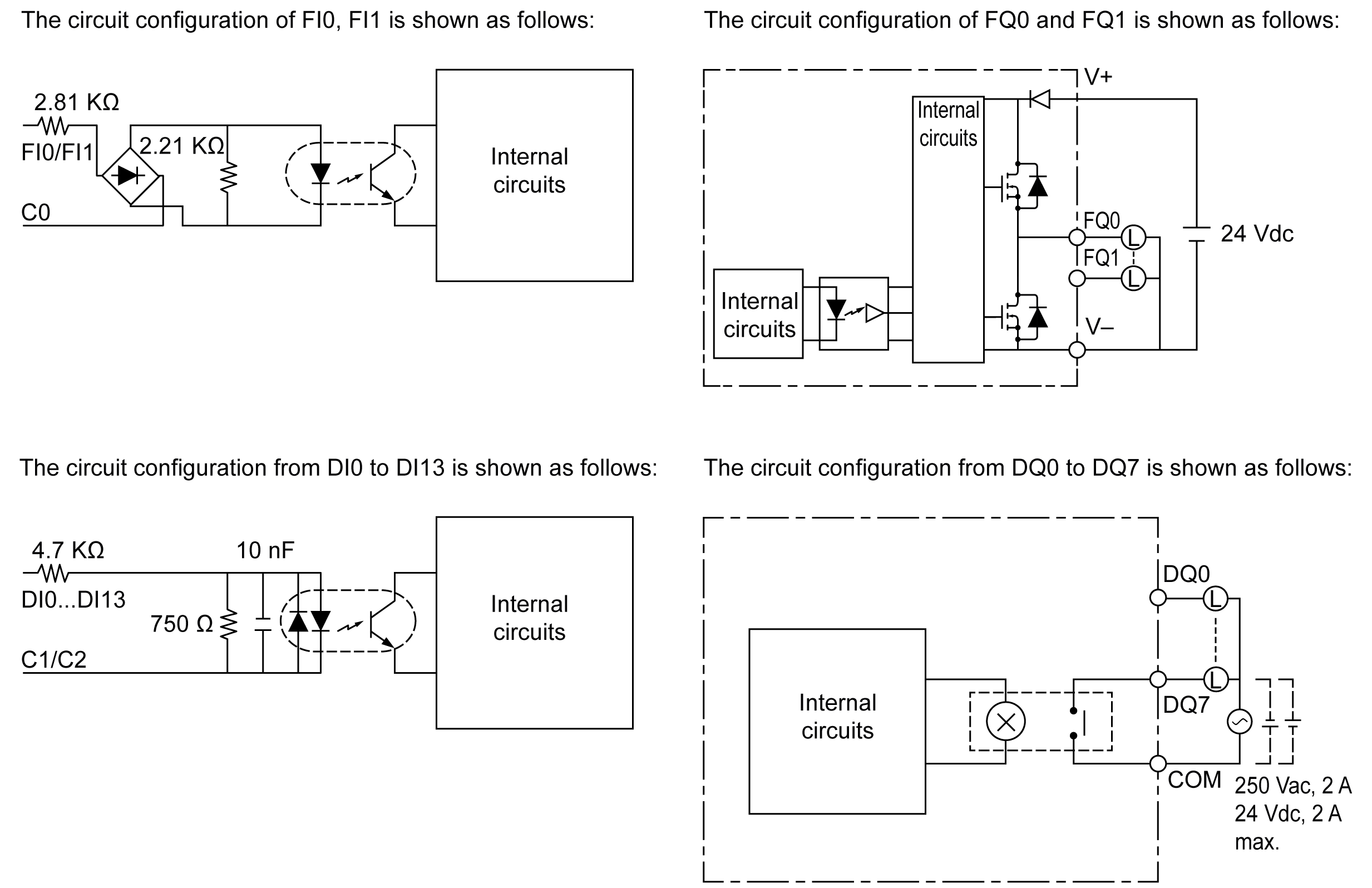

HMISCU•B5 (type DIO and AIO) Internal Circuit
