The HSC function can execute fast counts of pulses from sensors, encoders, switches, and so on, that are connected to the dedicated fast inputs.
There are 2 types of HSC:
oSimple type: a single input counter.
oMain type: a counter that uses up to 4 inputs (2 fast inputs and 2 standard inputs) and 2 reflex outputs.
Accessing the HSC Configuration Window
|
Step |
Description |
|---|---|
|
1 |
In the Devices tree, double-click HMISCUxx5 > Embedded Functions > HSC. Result: The HSC Configuration window is displayed. |

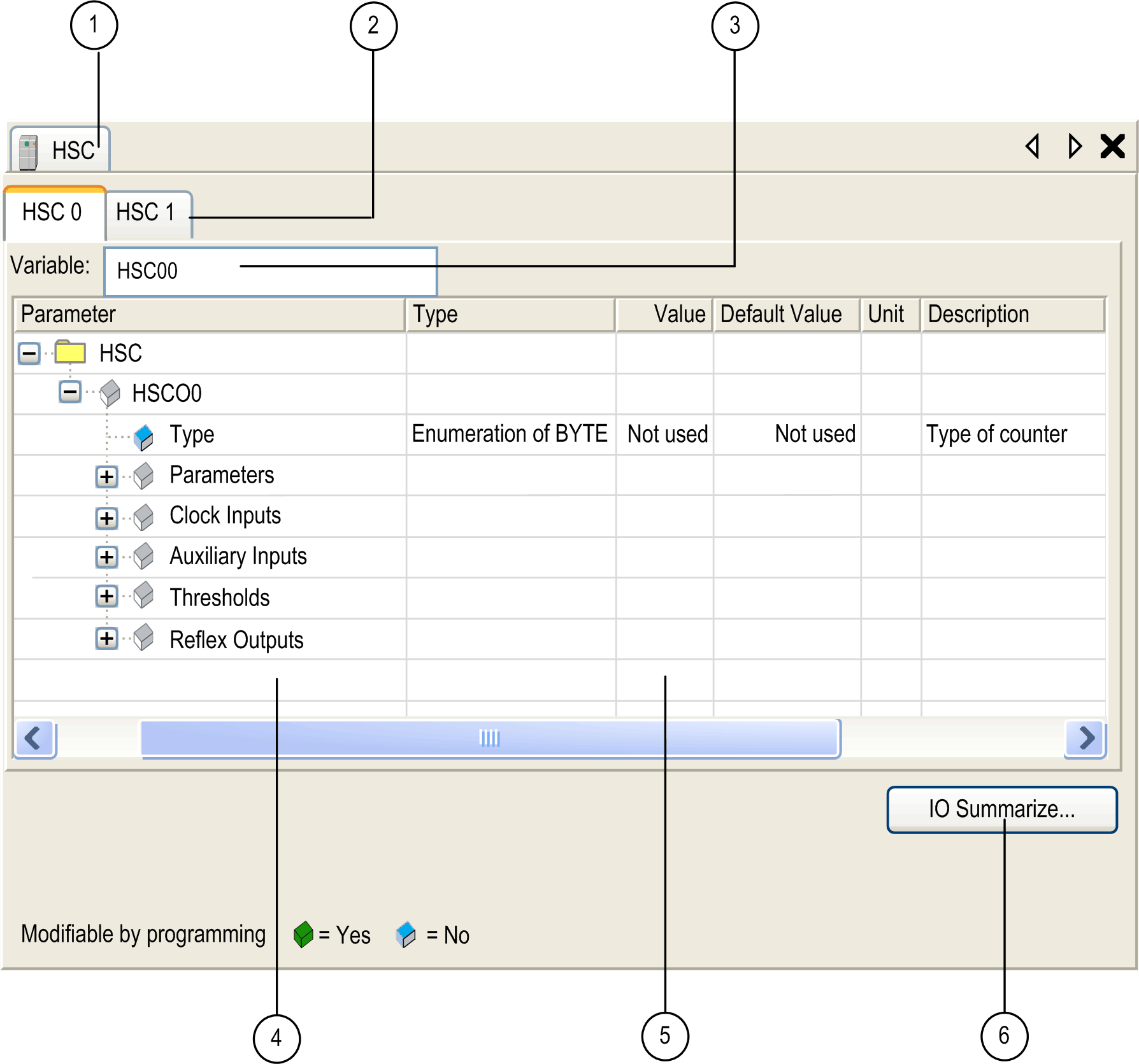

The figure shows a sample HSC configuration window used to configure the HSC:
The table describes the areas of the HSC configuration window:
|
Number |
Action |
|---|---|
|
1 |
If necessary, select the HSC tab to access the HSC configuration Windows. |
|
2 |
Select a specific HSC • tab to access the HSC channel you need to configure. |
|
3 |
Choose the type of HSC (Simple or Main) you want. The global variable name representing the channel instance can be defined here. Default for HSC 0 is HSC00, and for HSC 1 is HSC01. |
|
4 |
Expand each parameter by clicking the plus sign next to it to access its settings. |
|
5 |
Configuration window where the HSC parameters are set depending on the mode used. |
|
6 |
When you click the IO Summarize button, the IO Summary window appears. It allows you to check your configured physical I/O mapping. |
For detailed information on configuration parameters, refer to HMI SCU HSC choice matrix.
