The PTO embedded function can provide 2 different functions:
PTO The PTO (Pulse Train Output) implements digital technology that provides precise positioning for open loop control of motor drives.
PWM The PWM (Pulse Width Modulation) function generates a programmable square wave signal on a dedicated output with adjustable duty cycle and frequency.
Accessing the PTO_PWM Configuration Window
|
Step |
Description |
|---|---|
|
1 |
In the Devices tree, double-click HMISCUxx5 > Embedded Functions > PTO_PWM. Result: The PTO_PWM window is displayed. |

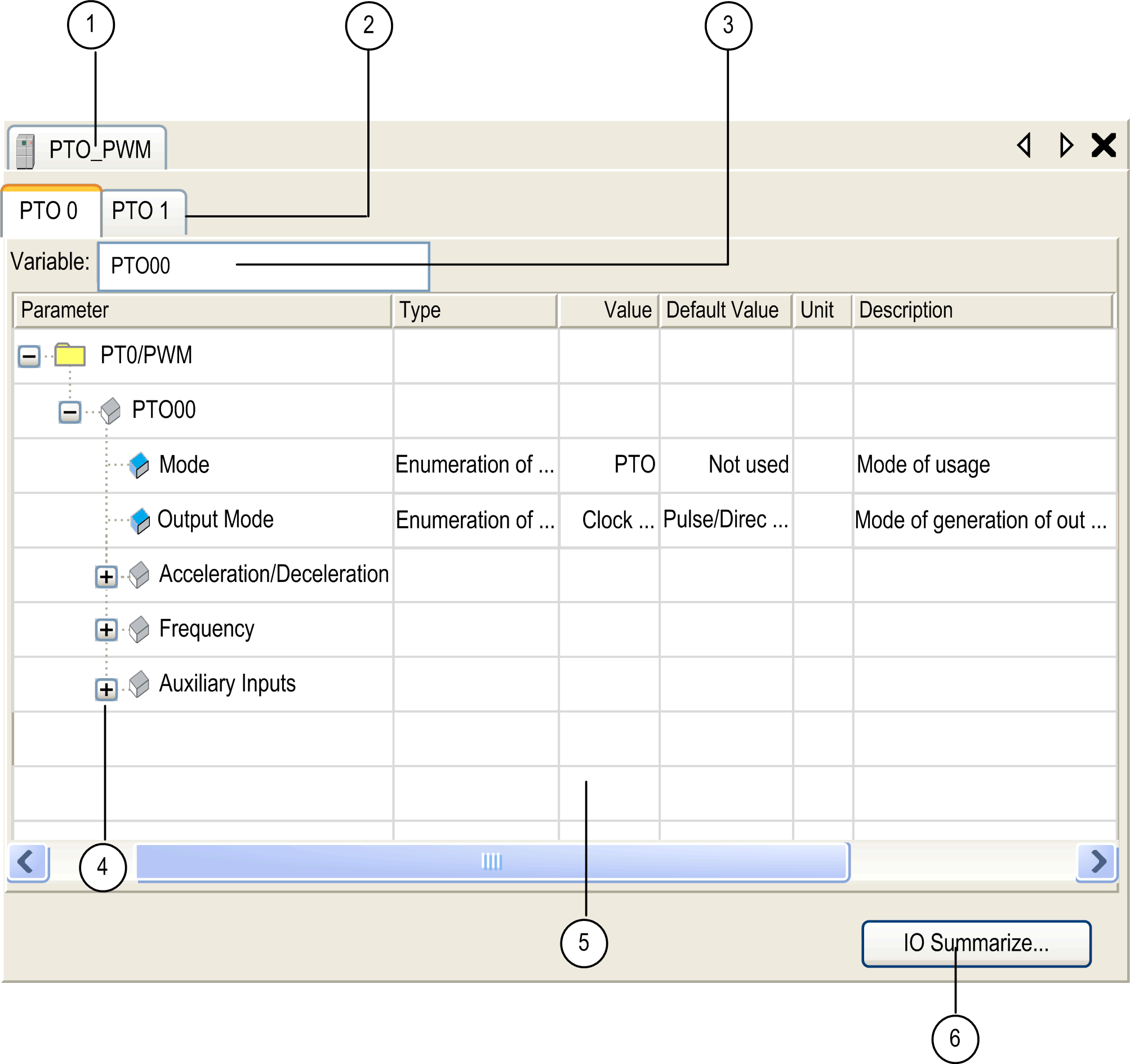

The figure shows a sample PTO_PWM configuration window used to configure a PTO or PWM:
The table describes the areas of the PTO_PWM configuration window:
|
Number |
Action |
|---|---|
|
1 |
If necessary, select the PTO_PWM tab to access the PTO_PWM configuration Windows. |
|
2 |
Select a specific PTO tab to access the PTO_PWM channel to configure. |
|
3 |
Choose the type of PTO_PWM, (PTO (default) or PWM). Use the field Variable to change the Global Variable name representing the instance of the channel. NOTE: The default variable name for PTO 0 channel is PTO00. For PTO 1 channel, it is PTO01. |
|
4 |
You can expand each parameter by clicking the plus sign next to it to access its settings. |
|
5 |
Configuration window where the embedded function is used for: oPTO oPWM |
|
6 |
Click the IO Summarize button. Result: The IO Summary window appears that shows the configured I/O mapping. |
For detailed information on configuration parameters, refer to:
