Touch Screen Calibration

Overview

The touch screen calibration software enables you to calibrate the system parameters.

Accessing the Calibration Touch Screen

Step

Action

1

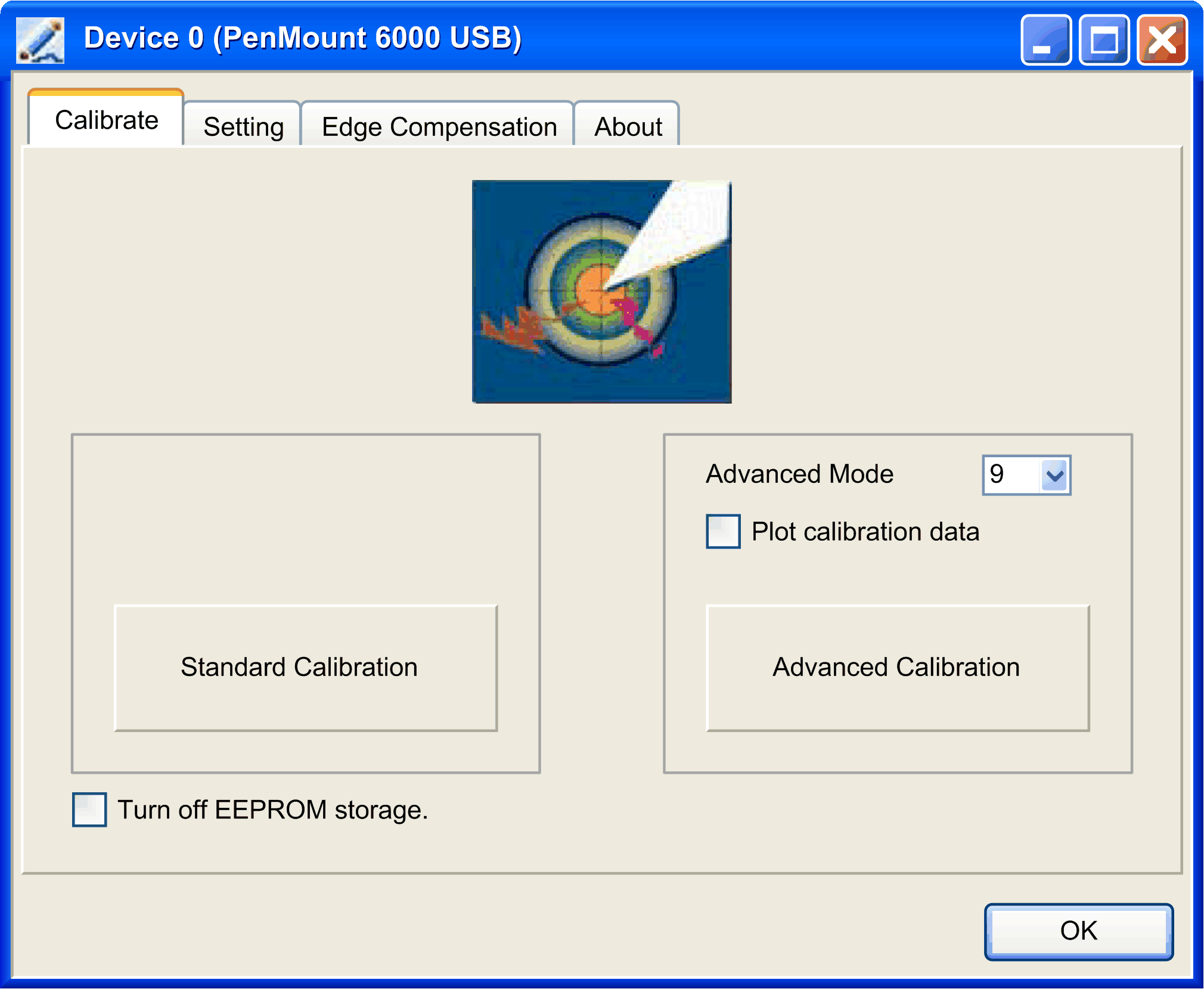

Launch PenMount control panel tool:






2

Double-click PenMount 6000 USB:






3

Follow the process to calibration touch screen.

4

Click OK to finish calibration:
