The HMIYMINUSB1 are categorized as communication modules. It is all compatible with the mini PCIe card.

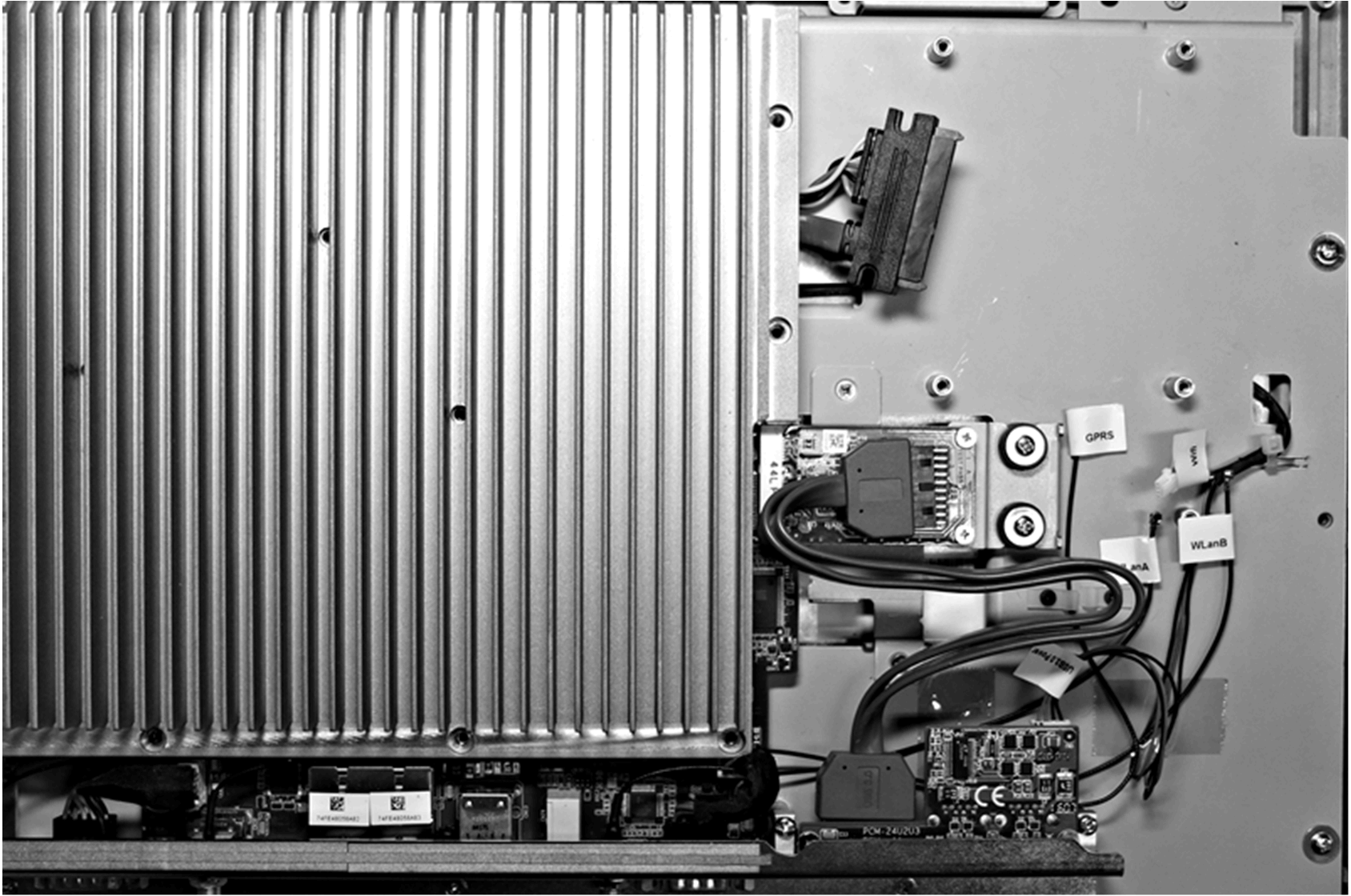

The figure shows the USB interface:

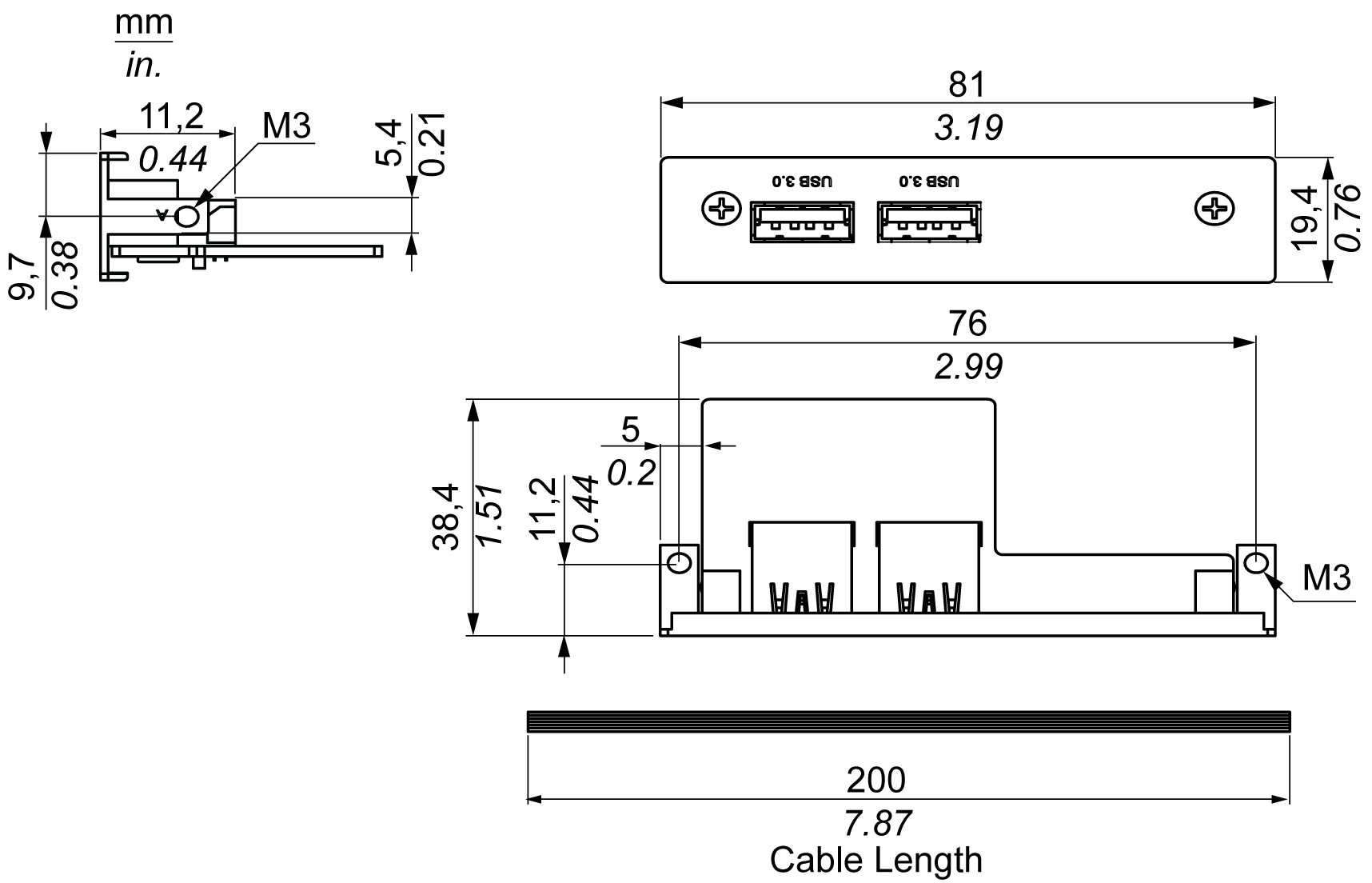

The figure shows the dimensions of the USB interface:
The table shows technical data for the USB interface:
|
Element |
Characteristics |
|---|---|
|
General |
|
|
Bus type |
Mini PCIe card revision 1.2 |
|
Connector |
2 x ports USB 3.0 |
|
Power consumption |
+5 Vdc / 900 mA power output to USB device (typical: 3.3 Vdc) |
|
Communication |
|
|
Protocol |
Universal serial Bus 3.0 specification Rev. 1.0 |
|
Speed |
Low speed: 1.5 Mb/s, full speed: 12 Mb/s, high speed: 480 Mb/s, super speed: 5 Gb/s |
|
Part number |
Description |
S-Panel PC |
Enclosed PC |
|---|---|---|---|
|
HMIYMINUSB1 |
Interface USB 3.0, 2 x USB |
Yes |
Not applicable |
S-Panel PC:
Device Manager and Hardware Installation
Install the driver before you install the interface into the S-Panel PC. The driver installation media is included with the package. After the interface is installed, you can verify whether it is properly installed on your system through the Device Manager.
