ABS

Definition

Numeric IEC operator for returning the absolute value of a number.

In- and output can be of any numeric basic data type.

Example in IL

The result in i is 2.

LD                –2
ABS
ST                i

Example in ST

i:=ABS(–2);

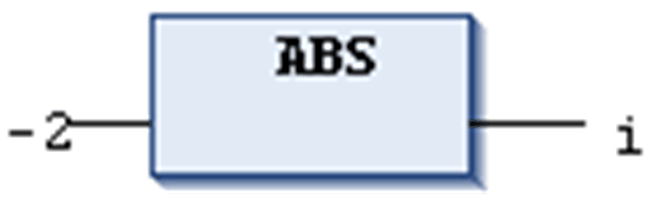

Example in FBD
