SQRT

Definition

Numeric IEC operator for returning the square root of a number.

The input variable can be of any numeric basic data type, the output variable has to be type REAL or LREAL.

Example in IL

The result in q is 4.

LD                16
SQRT
ST                q

Example in ST

q:=SQRT(16);

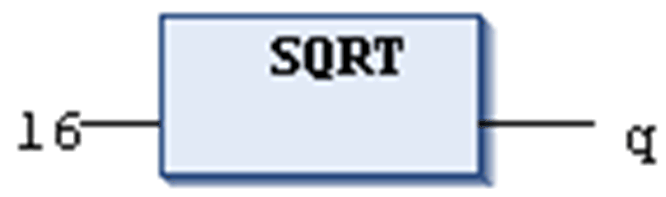

Example in FBD
