LN

Definition

Numeric IEC operator for returning the natural logarithm of a number.

The input variable can be of any numeric basic data type, the output variable has to be type REAL or LREAL.

Example in IL

The result in q is 3.80666.

LD                45
LN
ST                q

Example in ST

q:=LN(45);

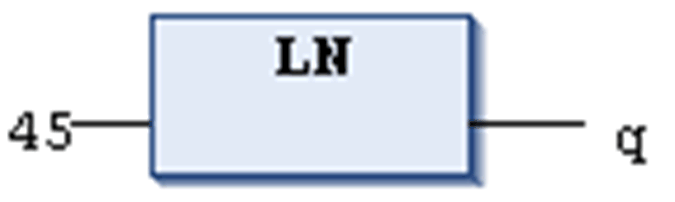

Example in FBD
