SystemVoltageEnhanced - Functional Description
|
Type: |
Function block |
|
Available as of: |
V1.0.0.0 |

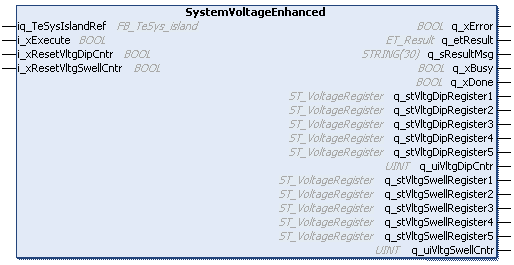

The function block SystemVoltageEnhanced returns and resets the enhanced voltage registers of the system avatar.
|
Input |
Data type |
Description |
|---|---|---|
|
iq_TeSysIslandRef |
FB_TeSys_island |
Reference to the TeSys island device. |
|
i_xExecute |
BOOL |
Upon a rising edge of this input, the function block starts the execution. The outputs q_xDone, q_xError, q_etResult, and q_etResultMsg are reset with the falling edge of i_xExecute. Refer to Behavior of Function Blocks with the Input i_xExecute. |
|
i_xResetVltgDipCntr |
BOOL |
If this input is set to TRUE, the value of the parameter q_udiResetVltgDipCntr is reset. |
|
i_xResetVltgSwellCntr |
BOOL |
If this input is set to TRUE, the value of the parameter q_udiResetVltgSwellCntr is reset. |
|
Output |
Data type |
Description |
|---|---|---|
|
q_xError |
BOOL |
If this output is set to TRUE, an error has been detected. For details, refer to q_etResult and q_etResultMsg. |
|
q_etResult |
Provides diagnostic and status information as a numeric value. |
|
|
q_sResultMsg |
STRING[30] |
Provides additional diagnostic and status information as a text message. |
|
q_xBusy |
BOOL |
If this output is set to TRUE, the function block execution is in progress. |
|
q_xDone |
BOOL |
If this output is set to TRUE, the execution has been completed successfully. |
|
q_stVltgDipRegister1 |
Maximum voltage magnitude for a voltage dip. q_stVltgDipRegister1 = most recent (Unit: V) |
|
|
q_stVltgDipRegister2 |
Maximum voltage magnitude for a voltage dip. |
|
|
... |
||
|
q_stVltgDipRegister5 |
||
|
q_uiVltgDipCntr |
UINT |
Voltage dip counter |
|
q_stVltgSwellRegister1 |
Maximum voltage magnitude for a voltage swell (Units of Volts). q_stVltgSwellRegister1 = most recent |
|
|
q_stVltgSwellRegister2 |
Maximum voltage magnitude for a voltage swell. |
|
|
... |
||
|
q_stVltgSwellRegister5 |
||
|
q_uiVltgSwellCntr |
UINT |
Voltage swell counter |
