Celsius_TO_Fahrenheit: Converting Celsius to Fahrenheit

Celsius_TO_Fahrenheit Function

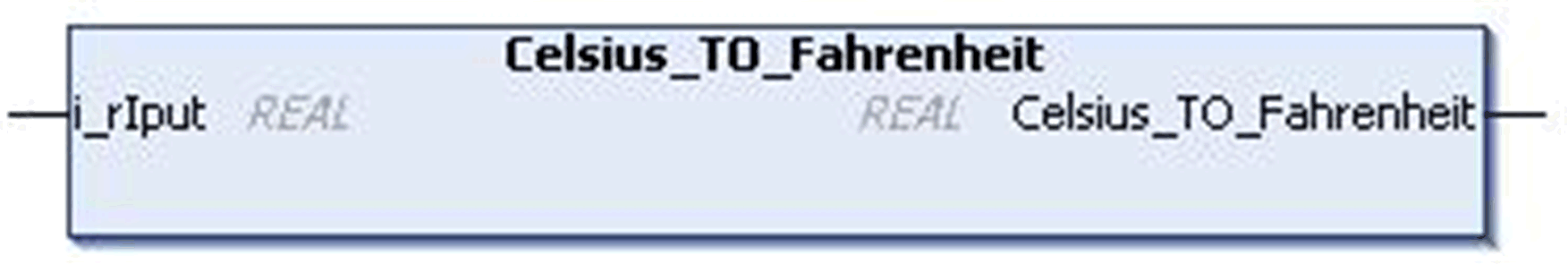

Pin Diagram

This figure shows the pin diagram of the Celsius_TO_Fahrenheit function:

Functional Description

The Celsius_TO_Fahrenheit function converts temperature in Celsius to Fahrenheit.

Use Fahrenheit_TO_Celsius for the reverse process.

Formula: T_Fahrenheit = [(T_Celcius * 1.8) + 32]

Input Pin Description

This table describes the input pins of the Celsius_TO_Fahrenheit function:

Input	Data Type	Description
i_rIput	REAL	Input value in Celsius Range: ±1.89e³⁸ (higher values result INFINITY at the output).

Input

Data Type

Description

i_rIput

REAL

Input value in Celsius

Range: ±1.89e³⁸ (higher values result INFINITY at the output).

Output Pin Description

This table describes the output pins of the Celsius_TO_Fahrenheit function:

Output	Data Type	Description
Celsius_TO_Fahrenheit	REAL	Output value in Fahrenheit
